Test Objective Block

Open Script

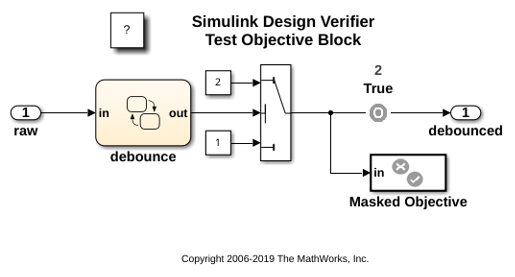

This example shows the use of two custom Test Objective blocks. The block "True" forces the output signal to be 2. The block "Edge" inside "Masked Objective" specifies that the output signal transition from 2 to 1.

open_system('sldvdemo_debounce_testobjblks');
