DDS Send

Send a DDS message

Since R2022b

expand all in page
  • DDS Send block

Libraries:
Simulink Real-Time / DDS

Description

The DDS Receive and DDS Send blocks let Simulink® Real-Time™ applications communicate with Data Distribution Service (DDS) middleware applications through a shared Simulink data dictionary. These blocks are compatible with the DDS Blockset, which includes a DDS dictionary that lets you manage, create, and edit your DDS definitions in Simulink. You can import DDS specifications as XML files to create a skeleton Simulink model as a starting point for developing algorithms for DDS applications. For more information, see How Does DDS Blockset Work? (DDS Blockset).

The DDS Send block sends a DDS message for a selected topic in the real-time application. You can attach a Simulink data dictionary containing the DDS data definitions to the block. You can create a new data dictionary or associate an existing data dictionary to the block and select a topic, data writer path, and Quality of Service (QoS) from the data dictionary.

The DDS Receive block and DDS Send block have some limitations:

  • You can use these blocks in the top level of a model. These blocks cannot be used in the referenced models.

  • You can use these blocks in a real-time application. These blocks cannot be used for simulation in normal mode, accelerator mode, or rapid accelerator mode.

  • You cannot use these blocks in protected models.

Examples

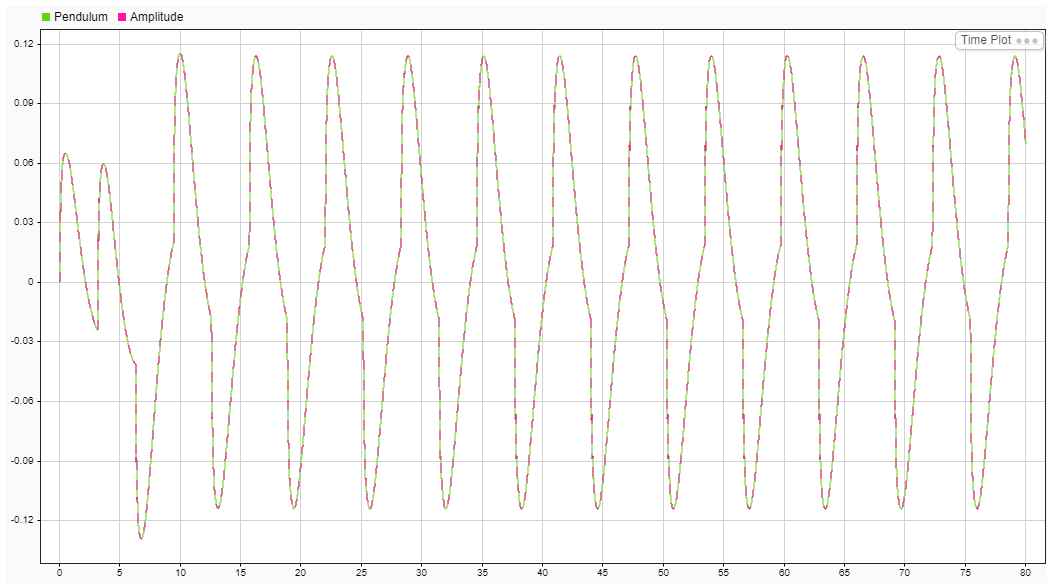

Communicate with Data Distribution Service (DDS) Middleware

Communicate with Data Distribution Service (DDS) Middleware

Use Simulink Real-Time blocks to communicate using Data Distribution Service middleware.

Ports

Input

expand all

Input the DDS message to be sent to a target.

Example: message

Parameters

expand all

Associate a simulink data dictionary containing dds data definitions or create a new data dictionary for the model.

Programmatic Use

Block Parameter: datadict

Select a topic from the drop-down menu for the data.

Programmatic Use

Block Parameter: topic

select the data writer XML path.

Programmatic Use

Block Parameter: xmlPath

Select the quality of service from the drop-down menu.

Programmatic Use

Block Parameter: qos

Enter the base sample time or a multiple of the base sample time. -1 means that the sample time is inherited.

Programmatic Use

Block Parameter: sampletime

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2022b
