LED

Connect signals attached to LEDs on hardware board

expand all in page
  • LED block

Libraries:
SoC Blockset / Hardware Logic I/O

Description

The LED block indicates the status of a signal. The hardware logic signals connected to an LED block are equivalent to the signals connected to the light emitting diodes (LED) on the hardware board.

Examples

Packet-Based ADS-B Transceiver

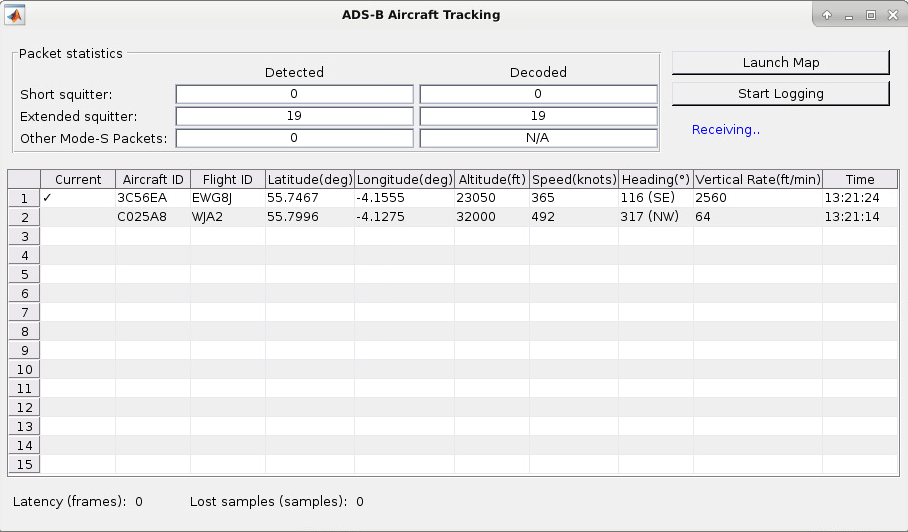

Packet-Based ADS-B Transceiver

Packet-based systems are common in wireless communications. Data is received over the air and is decoded as discrete packet data on a compute device. For given system requirements, it is difficult to design a system and implement directly on SoC as it often involves long iterations of debugging and integration on hardware since hardware effects are difficult to account for at design time. In this example, you will design packet-based airplane tracking application based on Automatic Dependent Surveillance Broadcast (ADS-B) standard, partitioned between FPGA and embedded processor. Unlike traditional methods, you will simulate the application design with memory interface before implementation on hardware using SoC Blockset™ to shorten development time. You will then validate the design on hardware by automatically generated code from the model.

Streaming Data from Hardware to Software

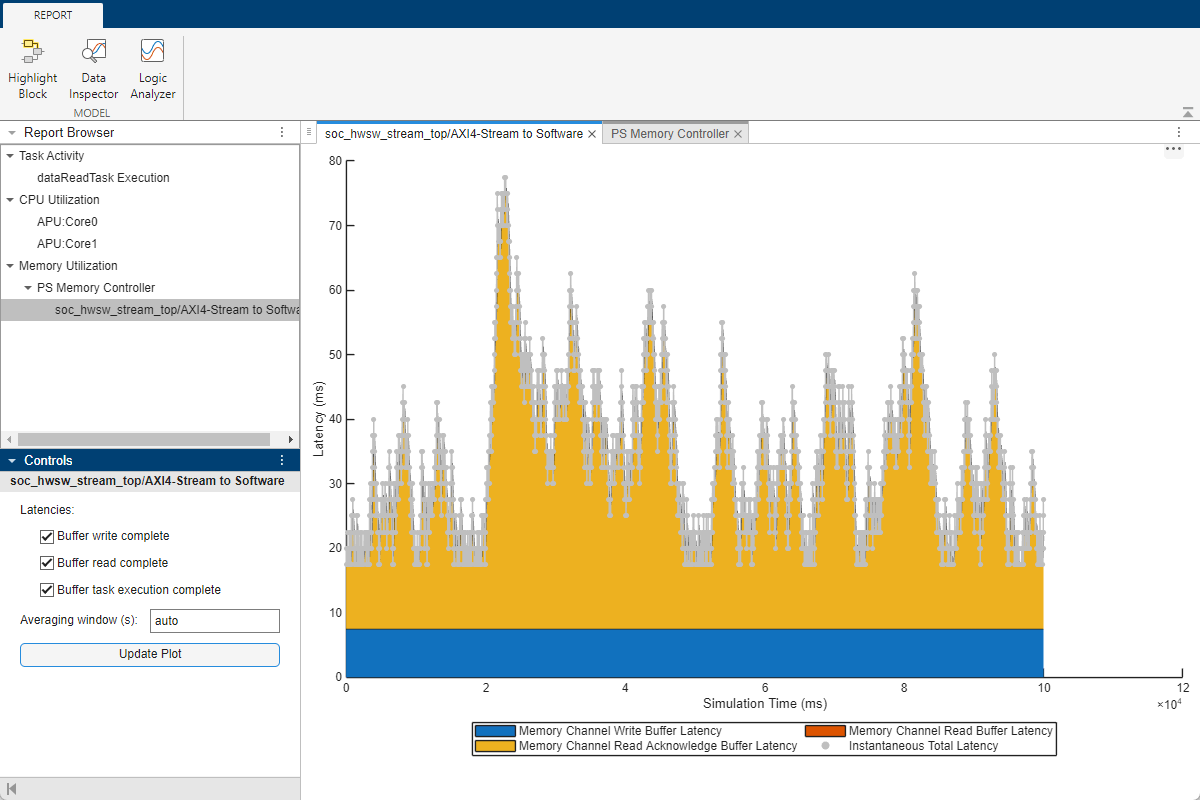

Streaming Data from Hardware to Software

A systematic approach to design the data-path between hardware logic (FPGA) and embedded processor using SoC Blockset™.

Ports

Input

expand all

Input signal from the hardware logic. Each LED has a port, named LED1 to LEDx, where x is Number of LEDs.

Data Types: Boolean

Parameters

expand all

This parameter is read-only. To choose a hardware board and configure board parameters, see Hardware Implementation Pane.

To view a diagram of the location of the LEDs on the selected hardware board, click the View LEDs location button.

This button is enabled only when you select specific Xilinx or Intel boards. For more information about these boards, refer to Supported Third-Party Tools and Hardware.

This parameter is read-only. Indicates the IO logic level on the selected hardware board.

When the IO logic parameter is shown as Active Low, the LED block accepts active low signals and represents the port names prefixed with letter n. For example, nLED1.

Specify the required number of LED ports by specifying a value from this list. n is the number of available LEDs on the specified hardware board. For example, if you set this parameter to 4, the block shows four LED ports.

To use only the nth LED, set the Number of LEDs parameter to n and leave the unused LED ports unconnected.

For the Zynq® UltraScale+™ RFSoC ZCU216 Evaluation Kit, the first three LED ports represent the first set of red, green, and blue (RGB) LEDs out of the eight available sets, the next three LED ports represent the second set of RGB LEDs, and so on. For example, if you set the Number of LEDs parameter to 9, the LED1, LED4, and LED7 ports connect to the red LEDs, the LED2, LED5, and LED8 ports connect to the green LEDs, and the LED3, LED6, and LED9 ports connect to the blue LEDs on the ZCU216 evaluation board.

Extended Capabilities

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced in R2019a
