predict

Predict responses for new observations from incremental drift-aware learning model

Since R2022b

collapse all in page

    Syntax

    yfit = predict(Mdl,X)
    yfit = predict(Mdl,X,ObservationsIn=dimension)
    [yfit,m] = predict(___)
    [yfit,m,cost] = predict(___)

    Description

    yfit = predict(Mdl,X) returns the predicted responses (or labels) yfit of the observations in the predictor data X from the incremental drift-aware learning model Mdl.

    yfit = predict(Mdl,X,ObservationsIn=dimension) specifies the observation dimension of the predictor data, either "rows" (default) or "columns". For example, specify ObservationsIn="columns" to indicate that observations in the predictor data are oriented along the columns of X.

    example

    [yfit,m] = predict(___) also returns the classification scores, posterior probabilities, or the negated average binary losses in m when Mdl.BaseLearner is an incremental learning model for classification, using any of the input argument combinations in the previous syntaxes. What m contains depends on the type of the Mdl.BaseLearner model object.

    example

    [yfit,m,cost] = predict(___) returns the predicted (expected) misclassification cost when Mdl.BaseLearner is an incrementalClassificationNaiveBayes model object, using any of the input argument combinations in the previous syntaxes.

    Examples

    collapse all

    Open Live Script

    Create the random concept data and the concept drift generator using the helper functions HelperRegrGenerator and HelperConceptDriftGenerator, respectively.

    concept1 = HelperRegrGenerator(NumFeatures=100,NonZeroFeatures=[1,20,40,50,55], ...
    FeatureCoefficients=[4,5,10,-2,-6],NoiseStd=1.1,TableOutput=false);
concept2 = HelperRegrGenerator(NumFeatures=100,NonZeroFeatures=[10,20,45,56,80], ...
    FeatureCoefficients=[4,5,10,-2,-6],NoiseStd=1.1,TableOutput=false);
driftGenerator = HelperConceptDriftGenerator(concept1,concept2,15000,1000);

    HelperRegrGenerator generates streaming data using features and feature coefficients for regression specified in the call to the function. At each step, the function samples the predictors from a normal distribution. Then, the function computes the response using the feature coefficients and predictor values and adding a random noise from a normal distribution with mean zero and specified noise standard deviation. The software returns the data in matrices for using in incremental learners.

    HelperConceptDriftGenerator establishes the concept drift. The object uses a sigmoid function 1./(1+exp(-4*(numobservations-position)./width)) to decide the probability of choosing the first stream when generating data [3]. In this case, the position argument is 15000 and the width argument is 1000. As the number of observations exceeds the position value minus half of the width, the probability of sampling from the first stream when generating data decreases. The sigmoid function allows a smooth transition from one stream to the other. Larger width values indicate a larger transition period where both streams are approximately equally likely to be selected.

    Initiate an incremental drift-aware model for regression as follows:

    1. Create an incremental linear model for regression. Specify the linear regression model type and solver type.

    2. Initiate an incremental concept drift detector that uses the Hoeffding's Bounds Drift Detection Method with moving average (HDDMA).

    3. Using the incremental linear model and the concept drift detector, instantiate an incremental drift-aware model. Specify the training period as 6000 observations.

    baseMdl = incrementalRegressionLinear(Learner="leastsquares",Solver="sgd",EstimationPeriod=1000,Standardize=false);
dd = incrementalConceptDriftDetector("hddma",Alternative="greater",InputType="continuous",WarmupPeriod=1000);
idaMdl = incrementalDriftAwareLearner(baseMdl,DriftDetector=dd,TrainingPeriod=6000);

    Preallocate the number of variables in each chunk and the number of iterations for creating a stream of data.

    numObsPerChunk = 10;
numIterations = 4000;

    Preallocate the variables for tracking the drift status and drift time, and storing the regression error.

    dstatus = zeros(numIterations,1);
statusname = strings(numIterations,1);
driftTimes = [];
ce = array2table(zeros(numIterations,2),VariableNames=["Cumulative" "Window"]);

    Simulate a data stream with incoming chunks of 10 observations each and perform incremental drift-aware learning. At each iteration:

    1. Simulate predictor data and labels, and update the drift generator using the helper function hgenerate.

    2. Call updateMetrics to update the performance metrics and fit to fit the incremental drift-aware model to the incoming data.

    3. Track and record the drift status and the regression error for visualization purposes.

    rng(12); % For reproducibility

for j = 1:numIterations

 % Generate data
 [driftGenerator,X,Y] = hgenerate(driftGenerator,numObsPerChunk);

 % Update performance metrics and fit
 idaMdl = updateMetrics(idaMdl,X,Y);
 idaMdl = fit(idaMdl,X,Y);

 % Record drift status and regression error
 statusname(j) = string(idaMdl.DriftStatus);
 ce{j,:} = idaMdl.Metrics{"MeanSquaredError",:};
    if idaMdl.DriftDetected
       dstatus(j) = 2;
       driftTimes(end+1) = j;
    elseif idaMdl.WarningDetected
       dstatus(j) = 1;
    else
       dstatus(j) = 0;
    end

end

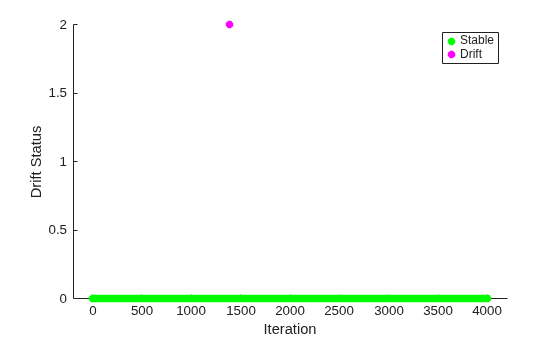

    Plot the drift status versus the iteration number.

    figure()
gscatter(1:numIterations,dstatus,statusname,'gmr','o',5,'on',"Iteration","Drift Status","filled")

    Figure contains an axes object. The axes object with xlabel Iteration, ylabel Drift Status contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Stable, Drift.

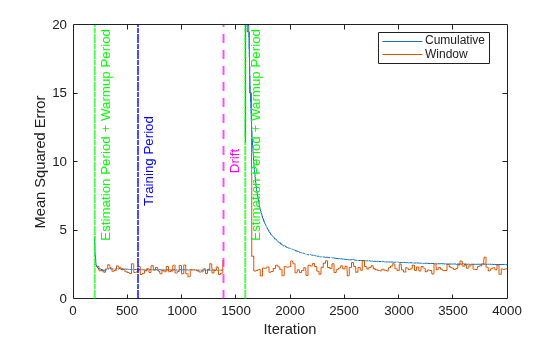

    Plot the cumulative and per window regression error. Mark the warmup and training periods, and where the drift was introduced.

    figure()
h = plot(ce.Variables);

xlim([0 numIterations])
ylim([0 20])
ylabel("Mean Squared Error")
xlabel("Iteration")

xline((idaMdl.MetricsWarmupPeriod+idaMdl.BaseLearner.EstimationPeriod)/numObsPerChunk,"g-.","Estimation Period + Warmup Period",LineWidth=1.5)
xline((idaMdl.MetricsWarmupPeriod+idaMdl.BaseLearner.EstimationPeriod)/numObsPerChunk+driftTimes,"g-.","Estimation Period + Warmup Period",LineWidth=1.5)
xline(idaMdl.TrainingPeriod/numObsPerChunk,"b-.","Training Period",LabelVerticalAlignment="middle",LineWidth=1.5)
xline(driftTimes,"m--","Drift",LabelVerticalAlignment="middle",LineWidth=1.5)

legend(h,ce.Properties.VariableNames)
legend(h,Location="best")

    Figure contains an axes object. The axes object with xlabel Iteration, ylabel Mean Squared Error contains 6 objects of type line, constantline. These objects represent Cumulative, Window.

    After the detection of drift, the fit function calls the reset function to reset the incremental drift-aware learner, hence the base learner and the drift detector. The updateMetrics function waits for idaMdl.BaseLearner.EstimationPeriod+idaMdl.MetricsWarmupPeriod observations to start updating model performance metrics again.

    Generate new data. Reorient the predictor variables in columns.

    [driftGenerator,X,Y] = hgenerate(driftGenerator,500);
X = X';

    Predict responses on new data. Specify the orientation of the predictor variables.

    yhat = predict(idaMdl,X,ObservationsIn="columns");

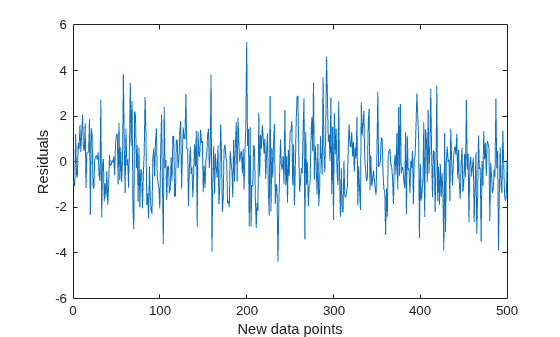

    Compute and plot the residuals.

    res = Y - yhat;
plot(res)
ylabel("Residuals")
xlabel("New data points")

    Figure contains an axes object. The axes object with xlabel New data points, ylabel Residuals contains an object of type line.

    The residuals appear symmetrically spread around 0 for new data.

    Open Live Script

    Create the random concept data using the HelperSineGenerator and concept drift generator HelperConceptDriftGenerator.

    concept1 = HelperSineGenerator("ClassificationFunction",1,"IrrelevantFeatures",true,"TableOutput",false);
concept2 = HelperSineGenerator("ClassificationFunction",3,"IrrelevantFeatures",true,"TableOutput",false);
driftGenerator = HelperConceptDriftGenerator(concept1,concept2,15000,1000);

    When ClassificationFunction is 1, HelperSineGenerator labels all points that satisfy x1 < sin(x2) as 1, otherwise the function labels them as 0. When ClassificationFunction is 3, this is reversed. That is, HelperSineGenerator labels all points that satisfy x1 >= sin(x2) as 1, otherwise the function labels them as 0.

    HelperConceptDriftGenerator establishes the concept drift. The object uses a sigmoid function 1./(1+exp(-4*(numobservations-position)./width)) to decide the probability of choosing the first stream when generating data [1]. In this case, the position argument is 15000 and the width argument is 1000. As the number of observations exceeds the position value minus half of the width, the probability of sampling from the first stream when generating data decreases. The sigmoid function allows a smooth transition from one stream to the other. Larger width values indicate a larger transition period where both streams are approximately equally likely to be selected.

    Instantiate an incremental drift-aware model as follows:

    1. Create an incremental Naive Bayes classification model for binary classification.

    2. Initiate an incremental concept drift detector that uses the Hoeffding's Bounds Drift Detection Method with moving average (HDDMA).

    3. Using the incremental linear model and the concept drift detector, instantiate an incremental drift-aware model. Specify the training period as 5000 observations.

    BaseLearner = incrementalClassificationLinear(Solver="sgd");
dd = incrementalConceptDriftDetector("hddma");
idaMdl = incrementalDriftAwareLearner(BaseLearner,DriftDetector=dd,TrainingPeriod=5000);

    Preallocate the number of variables in each chunk and number of iterations for creating a stream of data.

    numObsPerChunk = 10;
numIterations = 4000;

    Preallocate the variables for tracking the drift status and drift time, and storing the classification error.

    dstatus = zeros(numIterations,1);
statusname = strings(numIterations,1);
ce = array2table(zeros(numIterations,2),VariableNames=["Cumulative" "Window"]);
driftTimes = [];

    Simulate a data stream with incoming chunks of 10 observations each and perform incremental drift-aware learning. At each iteration:

    1. Simulate predictor data and labels, and update the drift generator using the helper function hgenerate.

    2. Call updateMetricsAndFit to update the performance metrics and fit the incremental drift-aware model to the incoming data.

    3. Track and record the drift status and the classification error for visualization purposes.

    rng(12); % For reproducibility

for j = 1:numIterations

 % Generate data
 [driftGenerator,X,Y] = hgenerate(driftGenerator,numObsPerChunk);

 % Update performance metrics and fit
 idaMdl = updateMetricsAndFit(idaMdl,X,Y);

 % Record drift status and classification error
 statusname(j) = string(idaMdl.DriftStatus);
 ce{j,:} = idaMdl.Metrics{"ClassificationError",:};
 if idaMdl.DriftDetected
       dstatus(j) = 2;
       driftTimes(end+1) = j;
    elseif idaMdl.WarningDetected
       dstatus(j) = 1;
    else
       dstatus(j) = 0;
    end

end

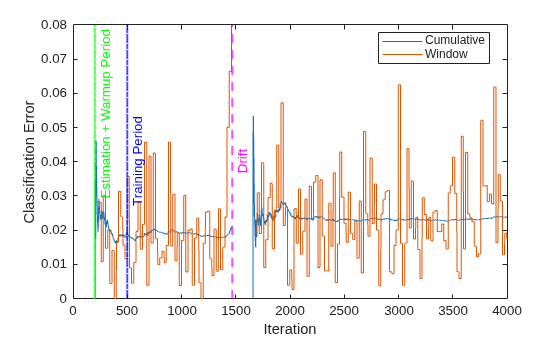

    Plot the cumulative and per window classification error. Mark the warmup and training periods, and where the drift was introduced.

    h = plot(ce.Variables);

xlim([0 numIterations])
ylim([0 0.08])
ylabel("Classification Error")
xlabel("Iteration")

xline((idaMdl.BaseLearner.EstimationPeriod+idaMdl.MetricsWarmupPeriod)/numObsPerChunk,"g-.","Estimation + Warmup Period",LineWidth=1.5)
xline(idaMdl.TrainingPeriod/numObsPerChunk,"b-.","Training Period",LabelVerticalAlignment="middle",LineWidth=1.5)
xline(driftTimes,"m--","Drift",LabelVerticalAlignment="middle",LineWidth=1.5)

legend(h,ce.Properties.VariableNames)
legend(h,Location="best")

    Figure contains an axes object. The axes object with xlabel Iteration, ylabel Classification Error contains 5 objects of type line, constantline. These objects represent Cumulative, Window.

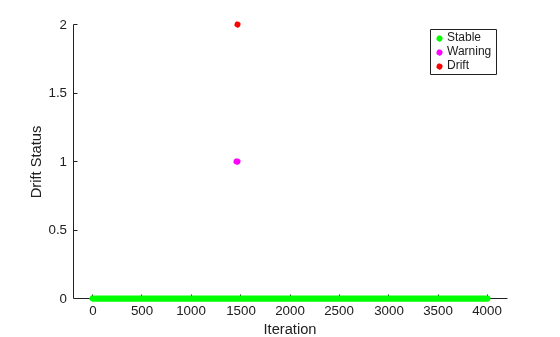

    Plot the drift status versus the iteration number.

    gscatter(1:numIterations,dstatus,statusname,'gmr','o',4,'on',"Iteration","Drift Status","Filled")

    Figure contains an axes object. The axes object with xlabel Iteration, ylabel Drift Status contains 3 objects of type line. One or more of the lines displays its values using only markers These objects represent Stable, Warning, Drift.

    Generate new data of 500 observations. Predict class labels and classification scores for new data.

    numnewdata = 500;
[driftGenerator,X,Y] = hgenerate(driftGenerator,numnewdata);
[yhat,cscores] = predict(idaMdl,X);

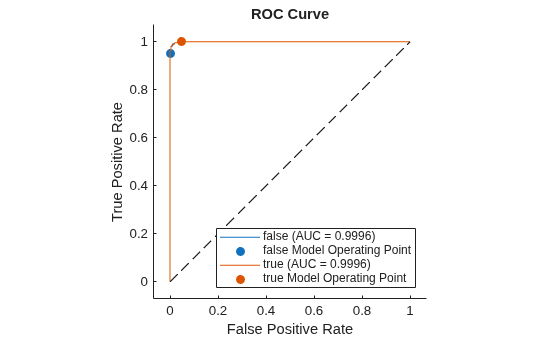

    Compute ROC and plot the results.

    roc = rocmetrics(Y,cscores,idaMdl.BaseLearner.ClassNames);
plot(roc)

    Figure contains an axes object. The axes object with title ROC Curve, xlabel False Positive Rate, ylabel True Positive Rate contains 5 objects of type roccurve, scatter, line. These objects represent false (AUC = 0.9996), false Model Operating Point, true (AUC = 0.9996), true Model Operating Point.

    For each class, the plot function plots a ROC curve and displays a filled circle marker at the model operating point. The legend displays the class name and AUC value for each curve. In a binary classification problem, the two ROC curves are symmetric, and the AUC values are identical.

    Compute the accuracy of the model.

    accuracy = sum(Y==yhat)/500
    accuracy =
0.9780

    The model predicts the new class labels with high accuracy.

    Input Arguments

    collapse all

    Incremental drift-aware learning model fit to streaming data, specified as an incrementalDriftAwareLearner model object. You can create Mdl using the incrementalDriftAwareLearner function. For more details, see the object reference page.

    Chunk of predictor data for which to predict responses or labels, specified as a floating-point matrix of n observations and Mdl.BaseLearner.NumPredictors predictor variables.

    When Mdl.BaseLearner accepts the ObservationsIn name-value argument, the value of ObservationsIn determines the orientation of the variables and observations. The default ObservationsIn value is "rows", which indicates that observations in the predictor data are oriented along the rows of X.

    Note

    predict supports only floating-point input predictor data. If your input data includes categorical data, you must prepare an encoded version of the categorical data. Use dummyvar to convert each categorical variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable matrices and any other numeric predictors. For more details, see Dummy Variables.

    Data Types: single | double

    Predictor data observation dimension, specified as "columns" or "rows".

    predict supports ObservationsIn=dimension only if Mdl.BaseLearner supports the ObservationsIn name-value argument.

    Data Types: char | string

    Output Arguments

    collapse all

    Predicted responses (labels), returned as a floating-point vector, categorical or character array, string or logical vector, or cell array of character vectors with n rows. n is the number of observations in X, and yfit(j) is the predicted response (label) for observation j.

    • For classification problems, yfit has the same data type as the class names stored in Mdl.BaseLearner.ClassNames. The software treats string arrays as cell arrays of character vectors.

    • For regression problems, yfit is a floating-point vector.

    Classification scores, posterior probabilities, or negated average binary losses, returned as a floating-point matrix when Mdl.BaseLearner is an incremental classification model.

    • When Mdl.BaseLearner is an incrementalClassificationLinear or incrementalClassificationKernel model object, m contains the raw classification scores or posterior probabilities depending on the learner type. For more information, see predict (incrementalClassificationLinear) or predict (incrementalClassificationKernel).

    • When Mdl.BaseLearner is an incrementalClassificationNaiveBayes model object, m contains the posterior probabilities. For more information, see predict (incrementalClassificationNaiveBayes).

    • When Mdl.BaseLearner is an incrementalClassificationECOC model object, m contains the negated average binary losses. For more information, see predict (incrementalClassificationECOC).

    Expected misclassification costs, returned as an n-by-numel(Mdl.BaseLearner.ClassNames) floating-point matrix when Mdl.BaseLearner is an incrementalClassificationNaiveBayes model. For more information, see predict (incrementalClassificationNaiveBayes).

    References

    [1] Barros, Roberto S.M. , et al. "RDDM: Reactive drift detection method." Expert Systems with Applications. vol. 90, Dec. 2017, pp. 344-55. https://doi.org/10.1016/j.eswa.2017.08.023.

    [2] Bifet, Albert, et al. "New Ensemble Methods for Evolving Data Streams." Proceedings of the 15th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. ACM Press, 2009, p. 139. https://doi.org/10.1145/1557019.1557041.

    [3] Gama, João, et al. "Learning with drift detection". Advances in Artificial Intelligence – SBIA 2004, edited by Ana L. C. Bazzan and Sofiane Labidi, vol. 3171, Springer Berlin Heidelberg, 2004, pp. 286–95. https://doi.org/10.1007/978-3-540-28645-5_29.

    Version History

    Introduced in R2022b
