jacobiCD

Jacobi CD elliptic function

collapse all in page

Syntax

jacobiCD(u,m)

Description

jacobiCD(u,m) returns the Jacobi CD Elliptic Function of u and m. If u or m is an array, then jacobiCD acts element-wise.

example

Examples

collapse all

jacobiCD(2,1)
ans =
    1

Call jacobiCD on array inputs. jacobiCD acts element-wise when u or m is an array.

jacobiCD([2 1 -3],[1 2 3])
ans =
    1.0000    2.3829 -178.6290

Convert numeric input to symbolic form using sym, and find the Jacobi CD elliptic function. For symbolic input where u = 0 or m = 0 or 1, jacobiCD returns exact symbolic output.

jacobiCD(sym(2),sym(1))
ans =
1

Show that for other values of u or m, jacobiCD returns an unevaluated function call.

jacobiCD(sym(2),sym(3))
ans =
jacobiCD(2, 3)

For symbolic variables or expressions, jacobiCD returns the unevaluated function call.

syms x y
f = jacobiCD(x,y)
f =
jacobiCD(x, y)

Substitute values for the variables by using subs, and convert values to double by using double.

f = subs(f, [x y], [3 5])
f =
jacobiCD(3, 5)
fVal = double(f)
fVal =
    1.0019

Calculate f to higher precision using vpa.

fVal = vpa(f)
fVal =
1.0019475527333315357888731083364
Open Live Script

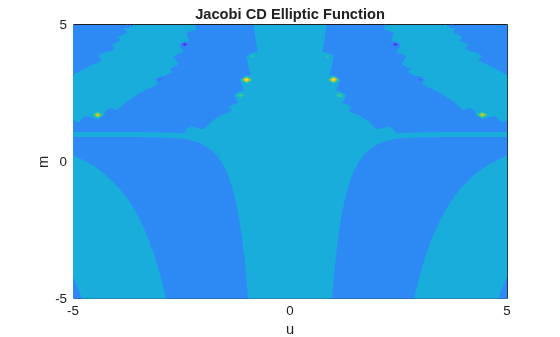

Plot the Jacobi CD elliptic function using fcontour. Set u on the x-axis and m on the y-axis by using the symbolic function f with the variable order (u,m). Fill plot contours by setting Fill to on.

syms f(u,m)
f(u,m) = jacobiCD(u,m);
fcontour(f,'Fill','on')
title('Jacobi CD Elliptic Function')
xlabel('u')
ylabel('m')

Figure contains an axes object. The axes object with title Jacobi CD Elliptic Function, xlabel u, ylabel m contains an object of type functioncontour.

Input Arguments

collapse all

Input, specified as a number, vector, matrix, or multidimensional array, or a symbolic number, variable, vector, matrix, multidimensional array, function, or expression.

Input, specified as a number, vector, matrix, or multidimensional array, or a symbolic number, variable, vector, matrix, multidimensional array, function, or expression.

More About

collapse all

Jacobi CD Elliptic Function

The Jacobi CD elliptic function is

cd(u,m) = cn(u,m)/dn(u,m)

where cn and dn are the respective Jacobi elliptic functions.

The Jacobi elliptic functions are meromorphic and doubly periodic in their first argument with periods 4K(m) and 4iK'(m), where K is the complete elliptic integral of the first kind, implemented as ellipticK.

Version History

Introduced in R2017b
