Remove High-Frequency Noise in Measured Data

Read Data

The ThingSpeak™ channel 12397 contains data from the MathWorks® weather station, located in Natick, Massachusetts. The data is collected and posted to ThingSpeak once per minute. Field 3 of the channel contains relative humidity data. Read the data using the thingSpeakRead function.

[humidity,time] = thingSpeakRead(12397,'NumPoints',8000,'Fields',3);

Design Filter

A filter is a process that removes unwanted components from a signal. A low-pass filter is designed to let lower frequency components pass through and block higher frequency components in a signal. DSP System Toolbox™ provides multiple techniques to define a low-pass filter. This example designs a third-order finite impulse response (FIR) filter. The sampling frequency is once every 60 seconds (Fs=1/60), as the data in channel 12397 is uploaded once per minute. The low-pass filter keeps low frequency components and attenuates high-frequency components with a period of less than 24 hours.

filtertype = 'FIR';
Fs = 1/60;
N = 3;
Fpass = 1/(24*60*60);
Fstop = 1/(2*60*60);
Rp = 0.5;
Astop = 50;

LPF = dsp.LowpassFilter('SampleRate',Fs,...
                        'FilterType',filtertype,...
                        'PassbandFrequency',Fpass,...
                        'StopbandFrequency',Fstop,...
                        'PassbandRipple',Rp,...
                        'StopbandAttenuation',Astop);

Process and Send the Data to ThingSpeak

Process the relative humidity data using the low-pass filter, and send the filtered humidity data to a ThingSpeak channel using the thingSpeakWrite function.

Output = step(LPF, humidity);

Using the MATLAB Analysis app, you can write the data to a channel. If you are using the MATLAB Visualizations app, you can also add a plot of the data. Change the channelID and the writeAPIKey to send data to your channel.

channelID = 17504;
writeAPIKey='23ZLGOBBU9TWHG2H';
thingSpeakWrite(channelID,Output,'Timestamps',time,'WriteKey',writeAPIKey);
plot(time,humidity,time,Output);
ylabel('Relative Humidity');
legend('Raw Data', 'Filtered Data');

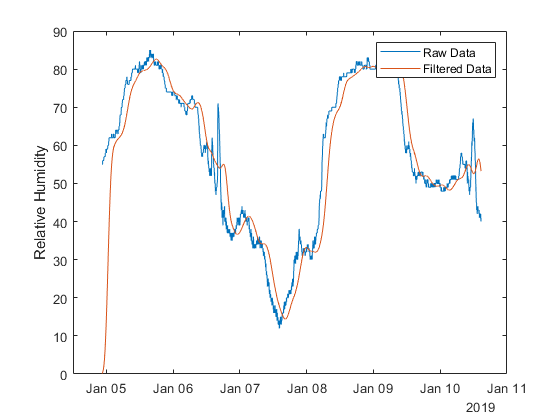

The plot demonstrates a dramatic reduction in high-frequency noise.
