Read Parameter

Read PX4 system parameters

expand all in page
  • Read Parameter block

Libraries:
UAV Toolbox Support Package for PX4 Autopilots

Description

Add-On Required: This feature requires the UAV Toolbox Support Package for PX4 Autopilots add-on.

The Read Parameter block reads the specified PX4 system parameter, and provides its value as output.

The block supports all parameters listed in PX4 Parameter Reference page. You can also use custom parameters that you define by following the guidelines.

During Normal mode simulation, the block outputs zeroes.

During Connected I/O simulation, this block reads data from the peripherals of the hardware.

Examples

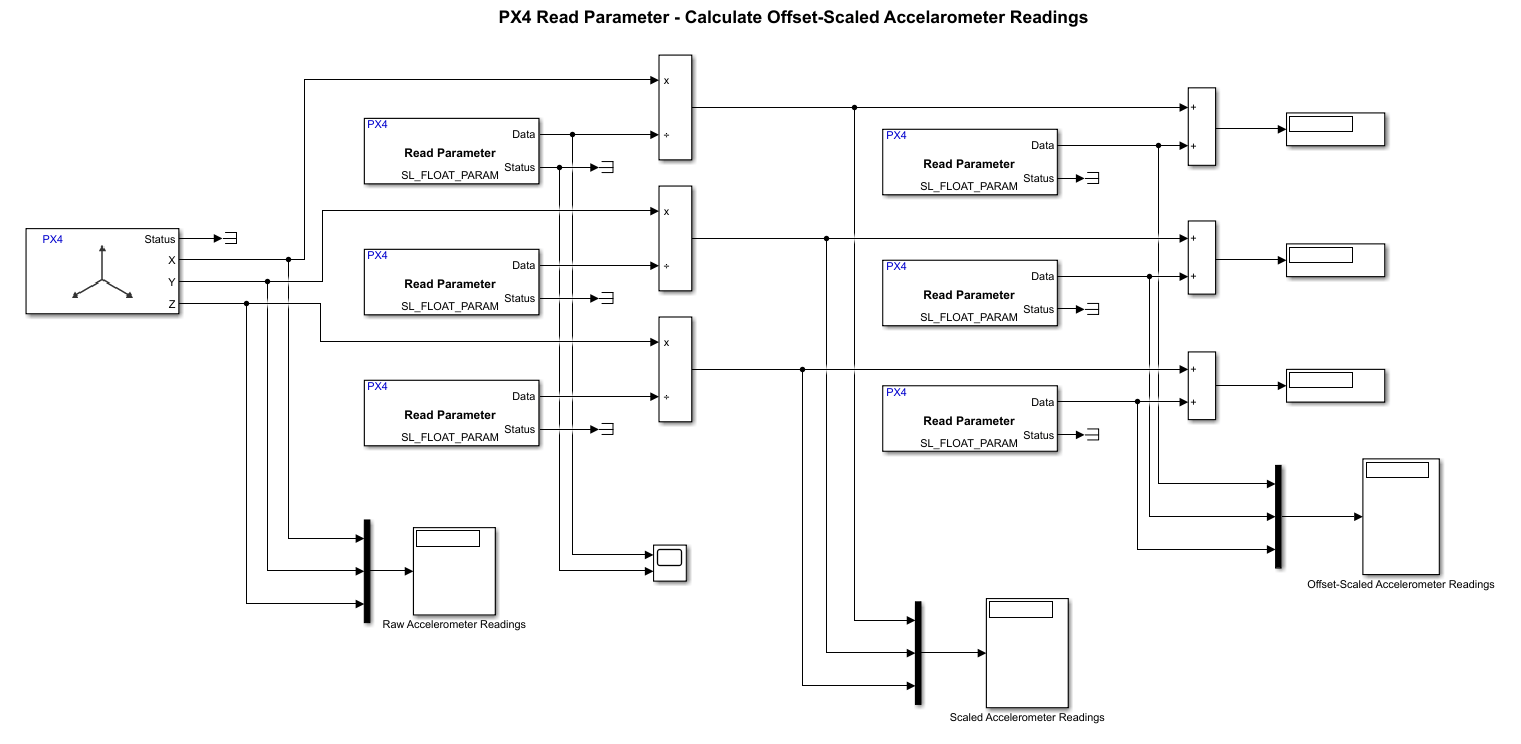

Read PX4 System Parameters from PX4 Autopilot

Read PX4 System Parameters from PX4 Autopilot

Read system parameters from PX4® autopilot using Read Parameter block.

Ports

Output

expand all

Value of the specified PX4 system parameter

Data Types: int32 | float

The Status output indicates if the parameter that you specified is valid or not. A value of 0 indicates that the parameter handle is valid, and a value of 1 indicates that the parameter handle is invalid.

Data Types: Boolean

Parameters

expand all

Enter the name of the PX4 system parameter.

Note

The Parameter Name that you enter in this field must match one of the PX4 parameters; otherwise, the Status port outputs 1, indicating that the parameter handle is invalid.

Select the data type of the parameter that you entered in the Parameter Name field.

Note

If the Data type that you select in this field does not match the actual data type of the PX4 parameter, the values read may lead to data type mismatch.

Enter the time interval at which the block reads values from the uORB network.

When you set this parameter to -1, Simulink® determines the best sample time for the block based on the block context within the model.

Version History

Introduced in R2018b
