Simulate Multiple Fixed-Wing UAVs in Simulink Using System Objects

Open Live Script

This example shows how to simulate a multiple-UAV in a waypoint-following mission in Simulink® by using System objects to implement multiple instances. In addition, this example shows how to visualize multiple UAVs and waypoints using the UAV Animation block.

To learn more about how to use System objects, see What Are System Objects? and System Design in Simulink Using System Objects.

Create UAV Waypoints

Create waypoints for five UAVs. First, define the number of UAVs in the simulation.

numUAVs = 5;

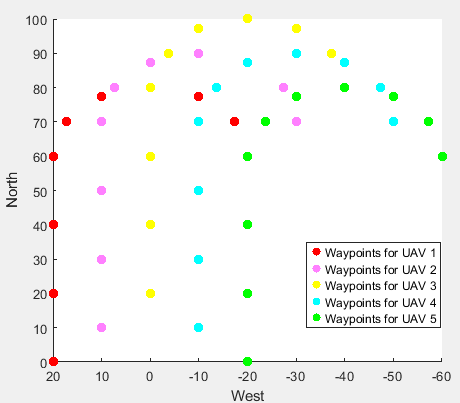

In this example, each UAV has 10 waypoints. All UAVs first fly in a straight line, followed by a semicircular U-turn as illustrated in this image.

Create an empty array to store all the waypoints.

wayPoints = zeros(10,3,numUAVs);

Create waypoints for each UAV in the north-east-down (NED) frame, in meters.

wayPoints1 = [0     -20    0; ...
              20    -20    0; ...
              40    -20    0; ...
              60    -20    0; ...
              70    -17.32 0; ...
              77.32 -10    0; ...
              80     0     0; ...
              77.32  10    0; ...
              70     17.32 0; ...
              60     20    0];

wayPoints2 = [10    -10    0; ...
              30    -10    0; ...
              50    -10    0; ...
              70    -10    0; ...
              80    -7.32  0; ...
              87.32  0     0; ...
              90     10    0; ...
              87.32  20    0; ...
              80     27.32 0; ...
              70     30    0];

wayPoints3 = [20     0     0; ...
              40     0     0; ...
              60     0     0; ...
              80     0     0; ...
              90     3.68  0; ...
              97.32  10    0; ...
              100    20    0; ...
              97.32  30    0; ...
              90     37.32 0; ...
              80     40    0];

wayPoints4 = [10     10    0; ...
              30     10    0; ...
              50     10    0; ...
              70     10    0; ...
              80     13.68 0; ...
              87.32  20    0; ...
              90     30    0; ...
              87.32  40    0; ...
              80     47.32 0; ...
              70     50    0];

wayPoints5 = [0      20    0; ...
              20     20    0; ...
              40     20    0; ...
              60     20    0; ...
              70     23.68 0; ...
              77.32  30    0; ...
              80     40    0; ...
              77.32  50    0; ...
              70     57.32 0; ...
              60     60    0];

Populate the waypoints array.

wayPoints(:,:,1) = wayPoints1;
wayPoints(:,:,2) = wayPoints2;
wayPoints(:,:,3) = wayPoints3;
wayPoints(:,:,4) = wayPoints4;
wayPoints(:,:,5) = wayPoints5;

Creates Bus Signal Definitions

Create bus signal definitions for the state, control, and environment signals for the guidance models, and store them to the busSignal.sldd data dictionary by using the exampleHelperMultiUAVSetupScript helper function.

exampleHelperMultiUAVSetupScript

Model Overview

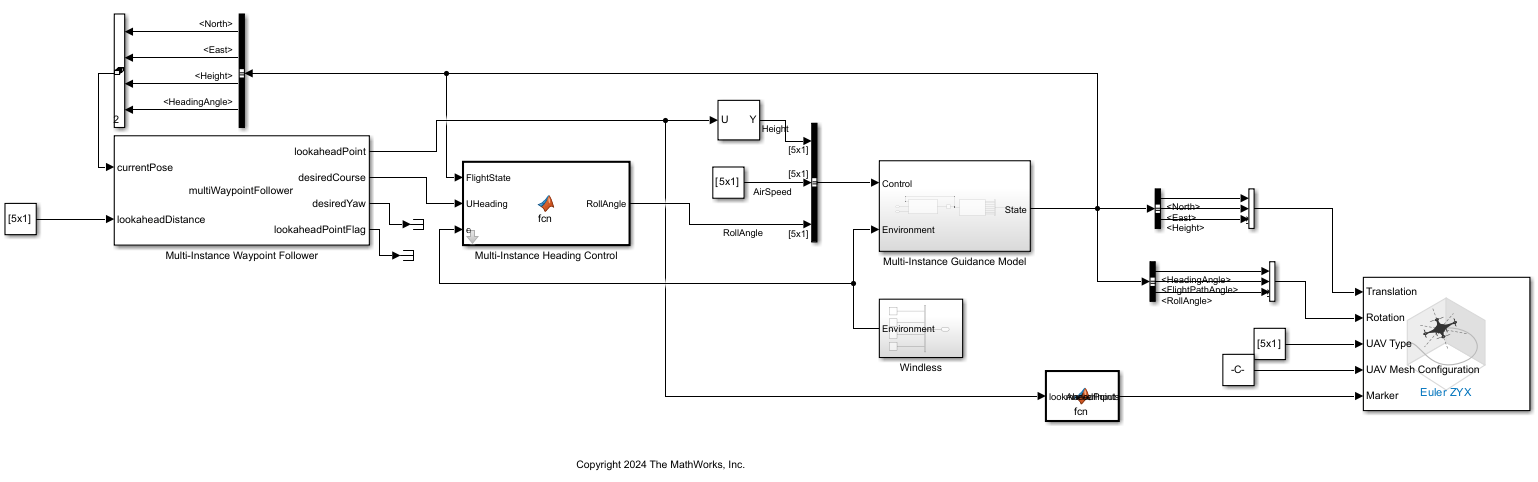

The formationFlightSimulation.slx Simulink model consists of these main parts:

Multi-Instance Waypoint Follower — MATLAB System block that implements multiple instances of the uavWaypointFollower object™ from UAV Toolbox, providing guidance logic for all the UAVs.
Multi-Instance Heading Controller - MATLAB Function block that calculates the heading control input for all UAVs.
Multi-Instance Guidance Model - Subsystem that implements multiple instances of the fixedwing guidance model object from UAV Toolbox, providing a low-fidelity model for all the UAVs.
UAV Animation Block — Animates the flight path, waypoints, and lookahead points of all UAVs.

The Multi-Instance Waypoint Follower block uses the multiWaypointFollower System object to implement multiple instances of the uavWaypointFollower object. Similarly, the Multi-Instance Guidance Model block uses the multiFixedwingDerivative System object to the implement multiple instances of the fixedwing guidance model object.

Both System objects have multiple defined object functions and properties. The properties that appear on their MATLAB System block masks are nontunable, which means you cannot change them once you instantiate the objects. Some of the important methods of the system object are:

resetImpl - This method initializes multiple uavWaypointFollower objects, with appropriate properties, once the system object has been initialized.
stepImpl - This method loops over each of the uavWaypointFollower objects and computes the look-ahead point and desired course for each of them.

Note: For this example, the Multi-Instance Waypoint Follower and Multi-Instance Guidance Model blocks support simulation using only interpreted execution.

Open the formationFlightSimulation.slx Simulink model. To set the properties of the waypoint follower for each UAV, open the mask for the Multi-Instance Waypoint Follower block. Select Source code to look at the underlying System object.

open_system("formationFlightSimulation")

Run Simulation

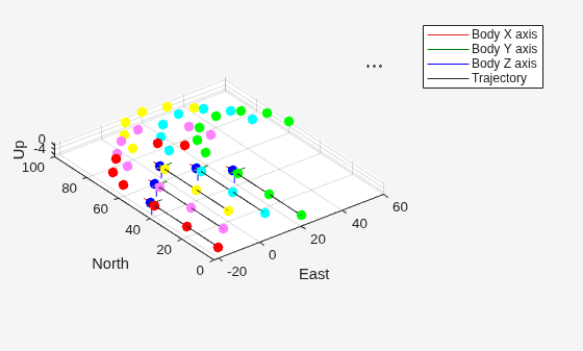

Run the Simulink model to simulate the formation flight. The UAV Animation block generates an animation of all the UAVs in formation, with their corresponding trajectories, waypoints, and look-ahead points.

sim("formationFlightSimulation");

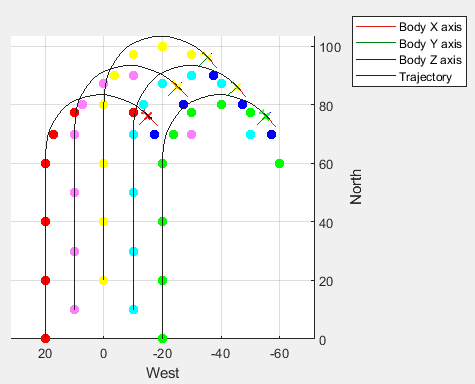

Figure UAV Animation contains an axes object. The axes object with xlabel North, ylabel West contains 26 objects of type patch, line, scatter.
