keyPointsToStruct

This example shows how to use the prebuilt MATLAB interface for the OpenCV function cv::Fast in MATLAB to detect keypoints in an image. Additionally, use the keyPointsToStruct utility function to write the keypoints returned by the OpenCV cv::Fast function to a MATLAB structure.

Add the MATLAB interface to OpenCV package names to the import list.

import clib.opencv.*;
import vision.opencv.util.*;

Read an image into the MATLAB workspace.

img = imread("elephant.jpg");

Create MATLAB interface objects for the OpenCV MatND and InputArray classes to store the input image.

[inputMat,inputArray] = createMat(img);

Create a MATLAB interface object for the OpenCV KeyPoint vector by using the clibArray function.

keyPointsVec = clibArray("clib.opencv.cv.KeyPoint",0);

Specify the parameters for computing keypoints using the FAST detector.

threshold = 100;
nonmaxSuppression = true;

Compute keypoints in the image by calling the OpenCV function cv::FAST in MATLAB.

cv.FAST(inputArray,keyPointsVec,threshold,nonmaxSuppression);

Convert the KeyPoints object returned by the OpenCV function into a MATLAB structure.

mlstruct = keyPointsToStruct(keyPointsVec);

Inspect the fields in the output MATLAB structure.

mlstruct

mlstruct = struct with fields:
       Location: [48x2 double]
          Scale: [48x1 double]
         Metric: [48x1 double]
           Misc: [48x1 double]
    Orientation: [48x1 double]

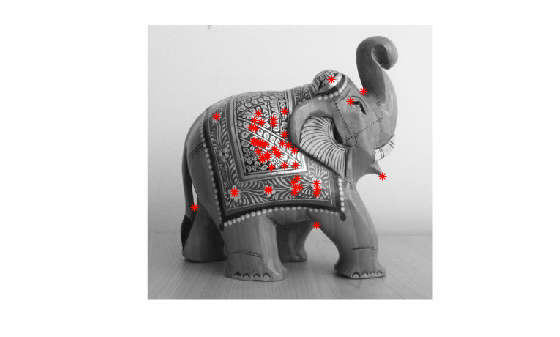

Display the input image and plot the detected keypoints.

figure
imshow(img)
hold on
plot(mlstruct.Location(:,1),mlstruct.Location(:,2),"*r")
hold off
