selectStrongestBboxMulticlass

Select strongest multiclass bounding boxes from overlapping clusters

Syntax

selectedBboxes = selectStrongestBboxMulticlass(bboxes,scores,labels)

[selectedBboxes,selectedScores,selectedLabels,index]
= selectStrongestBboxMulticlass(bboxes,scores,labels)

[___]
= selectStrongestBboxMulticlass(___,Name,Value)

Description

example

selectedBboxes = selectStrongestBboxMulticlass(bboxes,scores,labels) returns selected bounding boxes that have high confidence scores. The function uses greedy nonmaximal suppression (NMS) to eliminate overlapping bounding boxes from the bboxes input, only if they have the same class label.

[selectedBboxes,selectedScores,selectedLabels,index] = selectStrongestBboxMulticlass(bboxes,scores,labels) additionally returns the scores, labels, and index associated with the selected bounding boxes.

[___] = selectStrongestBboxMulticlass(___,Name,Value) uses additional options specified by one or more Name,Value pair arguments.

Examples

collapse all

Run Multiclass Nonmaximal Suppression on Bounding Boxes Using People Detector

Open Live Script

Create detectors using two different models. These will be used to generate multiclass detection results.

detectorInria = peopleDetectorACF('inria-100x41');
detectorCaltech = peopleDetectorACF('caltech-50x21');

Apply the detectors.

I = imread('visionteam1.jpg');
[bboxesInria,scoresInria] = detect(detectorInria,I,'SelectStrongest',false);
[bboxesCaltech,scoresCaltech] = detect(detectorCaltech,I,'SelectStrongest',false);

Create categorical labels for each the result of each detector.

labelsInria = repelem("inria",numel(scoresInria),1);
labelsInria = categorical(labelsInria,{'inria','caltech'});
labelsCaltech = repelem("caltech",numel(scoresCaltech),1);
labelsCaltech = categorical(labelsCaltech,{'inria','caltech'});

Combine results from all detectors to for multiclass detection results.

allBBoxes = [bboxesInria;bboxesCaltech];
allScores = [scoresInria;scoresCaltech];
allLabels = [labelsInria;labelsCaltech];

Run multiclass non-maximal suppression.

[bboxes,scores,labels] = selectStrongestBboxMulticlass(allBBoxes,allScores,allLabels,...
    'RatioType','Min','OverlapThreshold',0.65);

Annotate detected people.

annotations = string(labels) + ": " + string(scores);
I = insertObjectAnnotation(I,'rectangle',bboxes,cellstr(annotations));
imshow(I)
title('Detected People, Scores, and Labels')

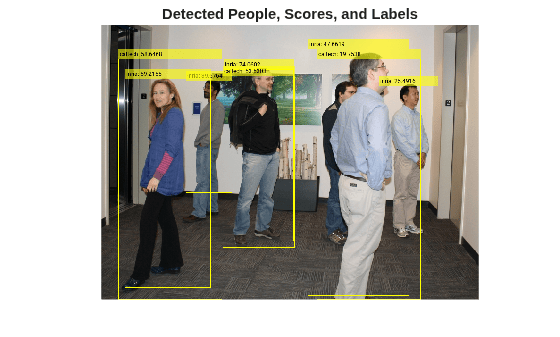

Figure contains an axes object. The axes object with title Detected People, Scores, and Labels contains an object of type image.

Input Arguments

collapse all

`bboxes` — Bounding boxes
M-by-4 matrix | M-by-5 matrix

Bounding boxes, specified as an M-by-4 or M-by-5 nonsparse numeric matrix. M is the number of bounding boxes. Each row of the matrix defines a bounding box as either an axis-aligned rectangle or a rotated rectangle. This table describes the format for each bounding box.

Bounding Box Description

Axis-aligned rectangle

Bounding Box	Description
Axis-aligned rectangle	Defined in pixel coordinates as an M-by-4 numeric matrix with rows of the form [x y w h], where: M is the number of axis-aligned rectangles. x and `y` specify the upper-left corner of the rectangle. w specifies the width of the rectangle, which is its length along the x-axis. h specifies the height of the rectangle, which is its length along the y-axis.
Rotated rectangle	Defined in spatial coordinates as an M-by-5 numeric matrix with rows of the form [xctr yctr xlen ylen yaw], where: M is the number of rotated rectangles. xctr and yctr specify the center of the rectangle. xlen specifies the width of the rectangle, which is its length along the x-axis before rotation. ylen specifies the height of the rectangle, which is its length along the y-axis before rotation. yaw specifies the rotation angle in degrees. The rotation is clockwise-positive around the center of the bounding box.

Defined in pixel coordinates as an M-by-4 numeric matrix with rows of the form [x y w h], where:

M is the number of axis-aligned rectangles.
x and y specify the upper-left corner of the rectangle.
w specifies the width of the rectangle, which is its length along the x-axis.
h specifies the height of the rectangle, which is its length along the y-axis.

Rotated rectangle

Defined in spatial coordinates as an M-by-5 numeric matrix with rows of the form [xctr yctr xlen ylen yaw], where:

M is the number of rotated rectangles.
xctr and yctr specify the center of the rectangle.
xlen specifies the width of the rectangle, which is its length along the x-axis before rotation.
ylen specifies the height of the rectangle, which is its length along the y-axis before rotation.
yaw specifies the rotation angle in degrees. The rotation is clockwise-positive around the center of the bounding box.

Square rectangle rotated by -30 degrees.

`scores` — Confidence scores
M-by-1 vector

Confidence scores corresponding to the input bounding boxes, specified as an M-by-1 vector. The selectStrongestBboxMulticlass function uses greedy NMS to eliminate overlapping bounding boxes and associate the confidence score with the boxes. A higher score represents a higher confidence in keeping the bounding box. The scores input must be real, finite, and nonsparse.

`labels` — Labels
M-by-1 categorical vector | M-by-1 numeric vector

Labels corresponding to the input bounding boxes, specified as an M-by-1 categorical or numeric vector.

Name-Value Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'RatioType','Union' sets the 'RatioType' property to 'Union'.

`RatioType` — Bounding box overlap ratio denominator
`'Union'` (default) | `'Min'`

Ratio type, specified as the character vector 'Union' or 'Min'.

Set the ratio type to 'Union' to compute the ratio as the area of intersection between bboxA and bboxB, divided by the area of the union of the two.
Set the ratio type to 'Min' to compute the ratio as the area of intersection between bboxA and bboxB, divided by the minimum area of the two bounding boxes.

Data Types: char

`OverlapThreshold` — Overlap ratio threshold
`0.5` (default) | scalar in the range [0 1]

Overlap ratio threshold, specified as the comma-separated pair consisting of 'OverlapThreshold' and a scalar in the range [0 1]. When the overlap ratio is above the threshold, the function removes bounding boxes around the reference box. Decrease the threshold to reduce the number of selected bounding boxes. However, if you decrease the threshold too much, you might eliminate boxes that represent objects close to each other in the image.

Data Types: single | double

`NumStrongest` — Maximum number of strongest boxes
`inf` (default) | positive scalar

Maximum number of strongest boxes, specified as the comma-separated pair consisting of 'NumStrongest' and inf or a positive scalar. Use this argument to reduce processing time when you have a priori knowledge about the maximum number of boxes. Set the value to inf to select all the strongest, non-overlapping, bounding boxes.

When the labels input contains categorical labels, you can also specify a vector that contains the maximum number of strongest boxes for each category in the labels input. The length of the specified vector must equal the number of categories in the label.

Output Arguments

collapse all

`selectedBboxes` — Selected bounding boxes
M-by-4 matrix | M-by-5 matrix

Selected bounding boxes, returned as an M-by-4 or an M-by-5 matrix. The 4-element vectors represent axis-aligned rectangles and the 5-element vectors represent rotated rectangles.

The selectedBbox output returns the selected bounding boxes from the bbox input that have the highest confidence score. The function uses nonmaximal suppression to eliminate overlapping bounding boxes.

`selectedScores` — Scores of selected bounding boxes
M-by-1 vector

Scores of selected bounding boxes, returned as an M-by-1 vector. The Mth score in the selectedScores output corresponds to the Mth bounding box in the selectedBboxes output. The data type of selectedScores matches the data type of scores.

`selectedLabels` — Labels of selected bounding boxes
M-by-1 categorical vector | M-by-1 numeric vector

Labels of selected bounding boxes, returned as an M-by-1 categorical or numeric vector. The Mth label in the selectedLabels output corresponds to the Mth bounding box in the selectedBboxes output. The data type of selectedLabels matches the data type of labels.

`index` — Index of selected bounding boxes
M-by-1 vector

Index of selected bounding boxes, returned as an M-by-1 vector. The index vector contains the indices to the selected boxes in the bboxes input.

Data Types: double

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

Code generation is not supported for rotated rectangle bounding box inputs.

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

GPU Code generation is not supported for rotated rectangle bounding box inputs.

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

GPU Arrays is not supported for rotated rectangle bounding box inputs.
