Convert Image Labeler Polygons to Labeled Blocked Image for Semantic Segmentation

Load Label Ground Truth Data

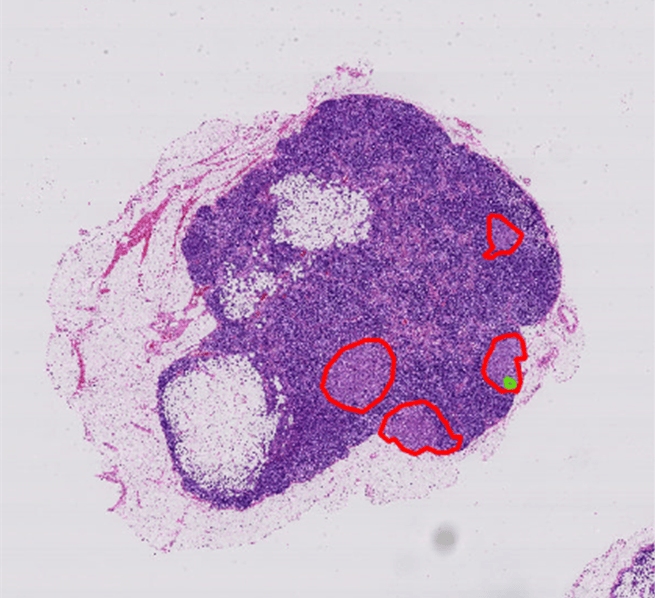

This example loads a presaved groundTruth object, gTruth.mat, created by labeling the blocked image data in bim using the Image Labeler app. The groundTruth object stores the polygon labels displayed in the figure. A normal tissue ROI is outlined in green, and tumor tissue ROIs are outlined in red. You can export your own labeled ground truth data from the Image Labeler app by selecting Export and then To Workspace. Name the variable gTruth.

load gTruth.mat

Extract ROI Position and Label Data

The LabelData property of the gTruth object stores the polygon label data as a table with one column for each label.

labelData = gTruth.LabelData

labelData=1×2 table
       normal         tumor
    ____________    __________

    {4×2 double}    {4×1 cell}

Use the helper function gTruthtoXY, defined at the end of this example, to convert the xy-position data and labels stored in labelData into a format accepted as an input to the polyToBlockedImage function. gTruthtoXY assigns the numeric label 1 to the normal tissue ROI and the label 2 to the tumor tissue ROIs.

[roiPositions,roiLabels] = gTruthtoXY(labelData)

roiPositions=5×1 cell array
    { 4×2 double}
    {14×2 double}
    {16×2 double}
    {20×2 double}
    {12×2 double}

roiLabels = 5×1

     1
     2
     2
     2
     2

Create Labeled Blocked Image

Select the desired resolution level for the new blocked image. This choice is a tradeoff between efficiency and accuracy. Using a coarser resolution level decreases processing time and storage size. Using a finer resolution level increases the level of detail preserved in the mask. You can use coarse resolution levels for regular ROIs, like polygons. For small, freehand ROIs, a fine resolution level is more appropriate. For this example, use an intermediate resolution level.

maskLevel = 2;

Specify the image size for the new blocked image to match that of the original image, bim, at the desired resolution level.

imageSize = bim.Size(maskLevel,1:2);

Create a labeled blocked image. Maintain the spatial referencing of the original blocked image, bim, at the desired resolution level. By default, polyToBlockedImage assigns pixels that do not fall inside any ROI the numeric label 0.

bLabeled = polyToBlockedImage(roiPositions,roiLabels,imageSize, ...
    BlockSize=bim.BlockSize(maskLevel,1:2), ...
    WorldStart=bim.WorldStart(maskLevel,1:2),WorldEnd=bim.WorldEnd(maskLevel,1:2));

Display the labeled blocked image overlaid on the original image. The regions corresponding to the tumor and normal tissue polygons of the groundTruth object are shown in red and green, respectively. To distinguish the normal tissue outside of the ROIs from the background using a binary mask, see Create Labeled Blocked Image from ROIs and Masks.

hbim = bigimageshow(bim);
showlabels(hbim,bLabeled,Colormap=[0 0 1; 0 1 0; 1 0 0])

Supporting Function

The gTruthtoXY helper function converts the polygon ROI coordinates and label data stored in the table labelData into cell arrays suitable for input into the polyToBlockedImage function.

function [roiPositions,roiLabels] = gTruthtoXY(labelData)

totalROIs = numel(labelData{1,1}) + numel(labelData{1,2}{:});
roiPositions = cell(totalROIs,1);
roiLabels = zeros(totalROIs,1);

% Obtain label names from the labelData table
labelName = labelData.Properties.VariableNames;

roiIdx = 1;  % Initialize ROI index

% Loop through all labels
% Assign a numeric label of 2 to tumor tissue; 1 for normal tissue
for j = 1:numel(labelData)

    % All ROIs for a given label
    data = labelData{1,j}{:};

    if(isequal(labelName{j},"tumor"))
        for k = 1:numel(data)
            roiLabels(roiIdx) = 2;
            roiPositions{roiIdx} = data{k};
            roiIdx = roiIdx + 1;
        end
    else
        % For other ROI labels
        roiLabels(roiIdx) = 1;
        roiPositions{roiIdx} = data;
        roiIdx = roiIdx + 1;
    end

end

end
