idwt3

Single-level 3-D inverse discrete wavelet transform

collapse all in page

    Syntax

    X = idwt3(wt)
    C = idwt3(wt,type)

    Description

    X = idwt3(wt) returns the single-level reconstructed 3-D array X based on the single-level three-dimensional wavelet decomposition structure wt.

    example

    C = idwt3(wt,type) returns the single-level reconstructed component of specified type.

    Examples

    collapse all

    Open Live Script

    Create a 3-D array.

    X  = reshape(1:64,4,4,4);
tiledlayout(2,2)
for k=1:4
    nexttile
    imagesc(X(:,:,k))
    title("k = "+num2str(k))
    colorbar
end

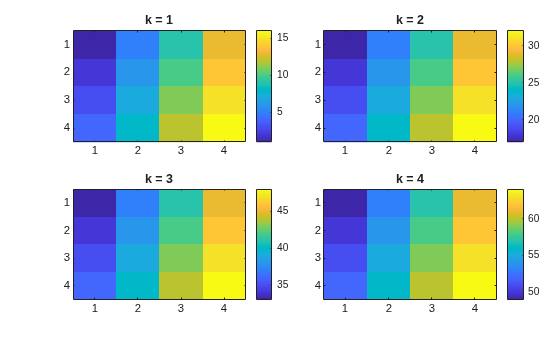

    Figure contains 4 axes objects. Axes object 1 with title k = 1 contains an object of type image. Axes object 2 with title k = 2 contains an object of type image. Axes object 3 with title k = 3 contains an object of type image. Axes object 4 with title k = 4 contains an object of type image.

    Decompose X using the Haar wavelet.

    wt = dwt3(X,"haar");

    Reconstruct X from the coefficients. Verify that the reconstructed data agrees with the original data to machine precision.

    XR = idwt3(wt);

dff = max(abs(X(:)-XR(:)))
    dff =
3.5527e-14

    Compute the reconstructed approximation, which consists of the lowpass component.

    A  = idwt3(wt,"aaa");

    Compute the sum of all the components different from the lowpass component. Visualize the reconstruction.

    D  = idwt3(wt,"d");
tiledlayout(2,2)
for k=1:4
    nexttile
    imagesc(D(:,:,k))
    title("k = "+num2str(k))
    colorbar
end

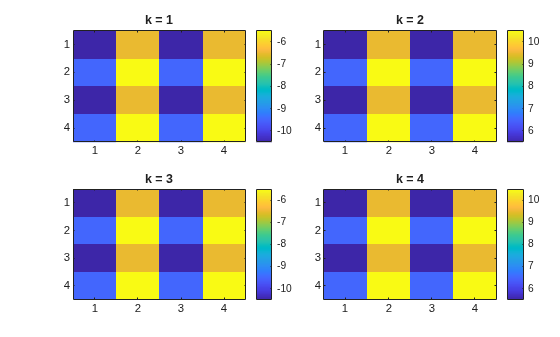

    Figure contains 4 axes objects. Axes object 1 with title k = 1 contains an object of type image. Axes object 2 with title k = 2 contains an object of type image. Axes object 3 with title k = 3 contains an object of type image. Axes object 4 with title k = 4 contains an object of type image.

    Reconstruct the component associated with lowpass in the x and z directions and highpass in the y direction.

    ADA  = idwt3(wt,"ada");

    Input Arguments

    collapse all

    Single-level 3-D wavelet decomposition, specified as a structure with these fields:

    sizeINI

    Size of the three-dimensional array X.

    mode

    Name of the wavelet transform extension mode.

    filters

    Structure with four fields: LoD, HiD, LoR, HiR, which are the filters used for DWT.

    dec

    2-by-2-by-2 cell array containing the coefficients of the decomposition.

    dec{i,j,k}, where i, j, and k equal 1 or 2, contains the coefficients obtained by lowpass filtering (for i, j, or k equal to 1) or highpass filtering (for i, j, k equal to 2).

    The i element filters along the rows of X, the j element filters along the columns, and the k element filters along the third dimension. For example, dec{1,2,1} is obtained by filtering X along the rows with the lowpass (scaling) filter, along the columns with the highpass (wavelet) filter, and along the third dimension with the lowpass (scaling) filter.

    Type of reconstruction, specified as a character vector or string scalar. Valid values of type are these:

    • A group of three characters 'xyz', one per direction, with each character selected in the set {'a', 'd', 'l', 'h'} or in the corresponding uppercase set {'A','D', 'L', 'H'}, where 'A' (or 'L') is a lowpass filter and 'D' (or 'H') is a highpass filter.

    • The char 'd' (or 'h' or 'D' or 'H') gives the sum of all the components different from the lowpass component.

    Data Types: char | string

    Output Arguments

    collapse all

    Reconstruction, returned as a 3-D array.

    Reconstructed component of specified type, returned as a 3-D array.

    Version History

    Introduced in R2010a
