NTREE constructor

collapse all in page

    Syntax

    T = ntree(ord,d)
    T = ntree(ord,d,s)
    T = ntree(ord,d,s,u)
    [T,nb] = ntree(___)

    Description

    T = ntree(ord,d) returns an NTREE object, which is a complete tree of order ord and depth d.

    • T = ntree is equivalent to T = ntree(2,0).

    • T = ntree(ord) is equivalent to T = ntree(ord,0).

    example

    T = ntree(ord,d,s) sets a "split scheme" for nodes.

    T = ntree(ord,d,s,u) sets the user data field of T.

    You can also specify function inputs this way: T = ntree('order',ord,'depth',d,'spsch',s,'ud',u). For unspecified inputs, the defaults are ord = 2 and d = 0 , s = ones(ord,1]) , u = {}.

    [T,nb] = ntree(___) also returns the number of terminal nodes (leaves) of T.

    Examples

    collapse all

    Open Live Script

    Create a binary tree (a tree of order 2) of depth 3.

    t2 = ntree(2,3);

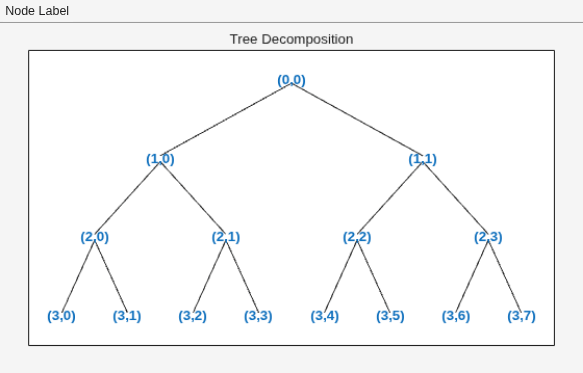

    Use the plot tree GUI plot to plot the tree.

    plot(t2)

    Figure contains an axes object and an object of type uimenu. The axes object with title Tree Decomposition contains 29 objects of type line, text.

    Create a quadtree (a tree of order 4) of depth 2. Split all except the third node.

    t4 = ntree(4,2,[1 1 0 1]);

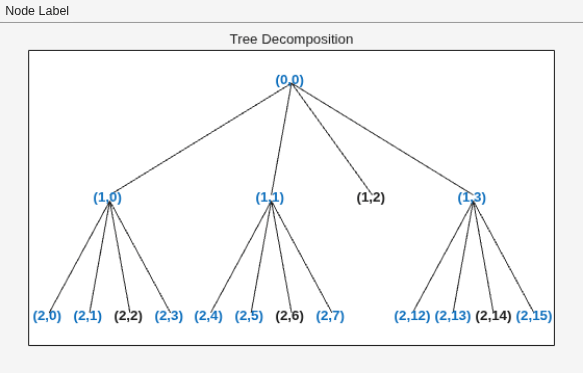

plot(t4)

    Figure contains an axes object and an object of type uimenu. The axes object with title Tree Decomposition contains 33 objects of type line, text.

    Input Arguments

    collapse all

    Tree order, specified as a positive integer.

    Data Types: double

    Tree depth, specified as a nonnegative integer.

    Data Types: double

    Split scheme, specified as an ord-by-1 logical array. The root of the tree can be split and it has ord children. You can split the jth child if s(j) = 1. Each node that you can split has the same property as the root node.

    Example: T = ntree(2,3,[1 0]) splits the first node at every level.

    User data to set in the ud field of T, specified as an array, cell array, or structure array.

    Example: t = ntree(2,3,[0 1],{1,"aa",rand(3,3)})

    Output Arguments

    collapse all

    Tree, returned as a NTREE object.

    The NTREE object has these fields:

    wtbo

    Parent object

    order

    Tree order

    depth

    Tree depth

    spsch

    Split scheme for nodes

    tn

    Column vector with terminal node indices

    The wtbo parent object has these fields:

    wtboInfo

    Object information

    ud

    User data field

    For more information on object fields, type:

    help ntree/get

    Number of terminal nodes (leaves) of T.

    Data Types: double

    Version History

    Introduced before R2006a
