treedpth

R2026b

Tree depth

Syntax

d = treedpth(t)

treedpth is a tree-management utility.

d = treedpth(t) returns the depth d of the tree t.

A tree of order 2 is a binary tree. Create a binary tree of depth 3. Plot the tree.

order = 2;
depth = 3;
t = ntree(order,depth);
plot(t)

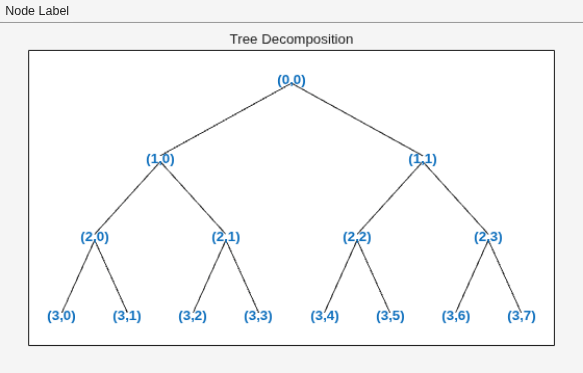

Figure contains an axes object and an object of type uimenu. The axes object with title Tree Decomposition contains 29 objects of type line, text.

Use the treedpth function to confirm the tree depth is 3.

treedpth(t)

ans =
3

Tree, specified as an ntree, dtree, or wptree object.

The treedpth function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

Introduced before R2006a

expand all

You can use treedpth in thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
