wlanTGaxChannel

Filter signal through 802.11ax multipath fading channel

Description

The wlanTGaxChannel System object™ filters an input signal through an 802.11ax™ (TGax) indoor MIMO channel as specified in [1], following the MIMO modeling approach described in [4].

The fading processing assumes the same parameters for all N_T-by-N_R links of the TGax channel, where N_T is the number of transmit antennas and N_R is the number of receive antennas. Each link comprises all multipaths for that link.

To filter an input signal using a TGax multipath fading channel:

Create the wlanTGaxChannel object and set its properties.
Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

tgax = wlanTGaxChannel

tgax = wlanTGaxChannel(Name,Value)

Description

tgax = wlanTGaxChannel creates a TGax channel System object, tgax. This object filters a real or complex input signal through the TGax channel to obtain the channel-impaired signal.

example

tgax = wlanTGaxChannel(Name,Value) creates a TGax channel object, tgax, and sets properties using one or more name-value pairs. Enclose each property name in quotes. For example, wlanTGaxChannel('NumReceiveAntennas',2,'SampleRate',10e6) creates a TGax channel with two receive antennas and a 10 MHz sample rate.

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`SampleRate` — Sample rate of the input signal
`80e6` (default) | positive scalar

Sample rate of the input signal in Hz, specified as a positive scalar.

Data Types: double

`DelayProfile` — Delay profile model
`'Model-B'` (default) | `'Model-A'` | `'Model-C'` | `'Model-D'` | `'Model-E'` | `'Model-F'`

Delay profile model, specified as 'Model-A', 'Model-B', 'Model-C', 'Model-D', 'Model-E', or 'Model-F'.

The table summarizes the properties of the models before the bandwidth reduction factor. For more information, see Increased Bandwidth.

Property	Model
Property	A	B	C	D	E	F
Breakpoint distance (m)	5	5	5	10	20	30
RMS delay spread (ns)	0	15	30	50	100	150
Maximum delay (ns)	0	80	200	390	730	1050
Rician K-factor (dB)	0	0	0	3	6	6
Number of taps	1	9	14	18	18	18
Number of clusters	1	2	2	3	4	6
Propagation scenario	Flat fading	Indoor residential	Indoor residential or small office	Office	Large office/warehouse	Large space indoor (pseudo-outdoor)

The number of clusters represents the number of independently modeled propagation paths.

Data Types: char | string

`ChannelBandwidth` — Channel bandwidth
`'CBW80'` (default) | `'CBW20'` | `'CBW40'` | `'CBW160'` | `'CBW320'`

Channel bandwidth, specified as one of these values.

'CBW20' — Channel bandwidth of 20 MHz
'CBW40' — Channel bandwidth of 40 MHz
'CBW80' — Channel bandwidth of 80 MHz
'CBW160' — Channel bandwidth of 160 MHz
'CBW320' — Channel bandwidth of 320 MHz

Data Types: char | string

`CarrierFrequency` — RF carrier frequency
`5.25e9` (default) | positive scalar

RF carrier frequency, in Hz, specified as a positive scalar.

Data Types: double

`EnvironmentalSpeed` — Speed of the scatterers
`0.089` (default) | positive scalar

Speed of the scatterers in km/h, specified as a positive scalar.

Data Types: double

`TransmitReceiveDistance` — Distance between transmitter and receiver
`3` (default) | positive scalar

Distance between the transmitter and receiver in meters, specified as a positive scalar.

TransmitReceiveDistance is used to compute the path loss, and to determine whether the channel has a line of sight (LOS) or non line of sight (NLOS) condition. The path loss and standard deviation of shadow fading loss depend on the separation between the transmitter and the receiver.

Data Types: double

`NormalizePathGains` — Normalize path gains
`true` or `1` (default) | `false` or `0`

Normalize path gains, specified as a numeric or logical 1 (true) or 0 (false). To normalize the fading processes such that the total power of the path gains, averaged over time, is 0 dB, set this property to 1 (true). Otherwise, set this property to false.

Data Types: logical

`UserIndex` — User index for single or multi-user scenario
`0` (default) | positive integer

User index, specified as a nonnegative integer. If the property is set to 0, the angles of arrival and departure from the TGn channel model are used in the calculation of the spatial correlation matrix. If the property is set to a positive integer, pseudorandom offsets are applied to the TGn angles of arrival and departure before the calculation of the spatial correlation matrix. For more details, see the section on MIMO Enhancements.

Data Types: double

`TransmissionDirection` — Transmission direction
`'Downlink'` (default) | `'Uplink'`

Transmission direction of the active link, specified as either 'Downlink' or 'Uplink'. The default value, 'Downlink', specifies transmission from an access point to a user station.

Data Types: char | string

`NumTransmitAntennas` — Number of transmit antennas
`1` (default) | positive integer

Number of transmit antennas, specified as a positive integer.

Data Types: double

`TransmitAntennaSpacing` — Distance between transmit antenna elements
`0.5` (default) | positive scalar

Distance between transmit antenna elements, specified as a positive scalar expressed in wavelengths.

TransmitAntennaSpacing supports uniform linear arrays only.

Dependencies

To enable this property, set the NumTransmitAntennas property to a value greater than 1.

Data Types: double

`NumReceiveAntennas` — Number of receive antennas
`1` (default) | positive integer

Number of receive antennas, specified as a positive integer.

Data Types: double

`ReceiveAntennaSpacing` — Distance between receive antenna elements
`0.5` (default) | positive scalar

Distance between receive antenna elements, specified as a positive scalar expressed in wavelengths.

ReceiveAntennaSpacing supports uniform linear arrays only.

Dependencies

To enable this property, set the NumReceiveAntennas property to a value greater than 1.

Data Types: double

`LargeScaleFadingEffect` — Large-scale fading effects
`'None'` (default) | `'Pathloss'` | `'Shadowing'` | `'Pathloss and shadowing'`

Large-scale fading effects applied in the channel, specified as 'None', 'Pathloss', 'Shadowing', or 'Pathloss and shadowing'.

Data Types: char | string

`NumPenetratedFloors` — Number of building floors
`0` (default) | positive integer

Number of building floors between the transmitter and the receiver, specified as a positive integer. Use this property in multiple floor scenarios to account for the floor attenuation loss in the path loss calculation. The default is 0, which represents a communication link between a transmitter and a receiver located on the same floor.

Dependencies

The NumPenetratedFloors property applies only when DelayProfile is 'Model-A' or 'Model-B'.

Data Types: double

`NumPenetratedWalls` — Number of walls
`0` (default) | positive integer

Number of walls between the transmitter and receiver, specified as a positive integer. Use this property to account for the wall penetration loss in the path loss calculation.

The default is 0, which represents a communication link between a transmitter and a receiver without wall penetration loss.

Data Types: double

`WallPenetrationLoss` — Penetration loss of a single wall
`5` (default) | real scalar

Penetration loss of a single wall in dB, specified as a real scalar.

Dependencies

The WallPenetrationLoss property applies only when NumPenetratedWalls is greater than 0.

Data Types: double

`FluorescentEffect` — Fluorescent effect
`true` or `1` (default) | `false` or `0`

Fluorescent effect, specified as a numeric or logical 1 (true) or 0 (false). To include Doppler effects from fluorescent lighting, set this property to 1 (true).

Dependencies

To enable this property, set the DelayProfile property to 'Model-D' or 'Model-E'.

Data Types: logical

`PowerLineFrequency` — Power line frequency
`'60Hz'` (default) | `'50Hz'`

Power line frequency in Hz, specified as '50Hz' or '60Hz'.

The power line frequency is 60 Hz in the United States and 50 Hz in Europe.

Dependencies

To enable this property, set the FluorescentEffect property to 1 (true) and the DelayProfile property to 'Model-D' or 'Model-E'.

Data Types: char | string

`NormalizeChannelOutputs` — Normalize channel outputs
`true` or `1` (default) | `false` or `0`

Normalize channel outputs by the number of receive antennas, specified as a numeric or logical 1 (true) or 0 (false).

Data Types: logical

`ChannelFiltering` — Enable channel filtering
`true` or `1` (default) | `false` or `0`

Enable channel filtering, specified as a numeric or logical 1 (true) or 0 (false). To enable channel filtering, set this property to 1 (true). To disable channel filtering, set this property to 0 (false).

Note

If you set this property to 0 (false), the step object function does not accept an input signal. In this case, the NumSamples and SampleRate properties determine the duration of the fading process realization. The object acts as a source of path gains without filtering an input signal.

Data Types: logical

`NumSamples` — Number of time-domain samples
`1280` (default) | positive integer

Number of time-domain samples used to get path gain samples, specified as a positive integer.

Dependencies

To enable this property, set the ChannelFiltering property to 0 (false).

Data Types: double

`OutputDataType` — Data type of impaired signal
`'double'` (default) | `'single'`

Data type of impaired signal, specified as one of these values:

'double' – Return the pathGains output as a double-precision matrix
'single' – Return the pathGains output as a single-precision matrix

Dependencies

To enable this property, set the ChannelFiltering property to 0 (false).

Data Types: char | string

`RandomStream` — Source of random number stream
`'Global stream'` (default) | `'mt19937ar with seed'`

Source of random number stream, specified as 'Global stream' or 'mt19937ar with seed'.

If you set this property to 'Global stream', the System object uses the current global random number stream to generate random numbers. In this case, the reset function resets the filters and creates a new channel realization.

If you set this property to 'mt19937ar with seed', the mt19937ar algorithm generates random numbers. In this case, the reset function not only resets the filters, but also reinitializes the random number stream to the value of the Seed property. This results in the same channel realization.

Note

The random numbers of the channel components are distributed as follows:

The random phase of the Doppler component due to fluorescent lights is uniformly distributed. See equation 27 of TGn Channel Models for more information.
In multi-user scenarios using the TGac, TGah, or TGax channel models, the per-user angle-of-arrival (AoA) and angle-of-departure (AoD) rotations discussed in the MIMO Enhancements section are uniformly distributed.
The fading samples are generated by a normally-distributed complex uncorrelated Gaussian process with zero mean and unit variance in discrete time.

Data Types: char | string

`Seed` — Initial seed of mt19937ar random number stream
`73` (default) | nonnegative integer

Initial seed of an mt19937ar random number stream, specified as a nonnegative integer. The Seed property reinitializes the mt19937ar random number stream in the reset function.

Dependencies

To enable this property, set the RandomStream property to 'mt19937ar with seed'.

Data Types: double

`PathGainsOutputPort` — Enable path gain output
`false` or `0` (default) | `true` or `1`

Enable path gain output computation, specified as a numeric or logical 1 (true) or 0 (false).

Data Types: logical

Usage

Syntax

y = tgax(x)

[y,pathGains] = tgax(x)

pathGains = tgax(x)

Description

y = tgax(x) filters input signal x through the TGax fading channel defined by the wlanTGaxChannel System object, tgax, and returns the result in y.

example

[y,pathGains] = tgax(x) also returns in pathGains the TGax channel path gains of the underlying fading process.

This syntax applies when you set the PathGainsOutputPort property of tgax to 1 (true).

example

pathGains = tgax(x) returns the path gains. The NumSamples property determines the duration of the fading process.

This syntax applies when you set the ChannelFiltering property to 0 (false).

Input Arguments

expand all

`x` — Input signal
complex matrix

Input signal, specified as a real or complex N_S-by-N_T matrix, where:

N_S is the number of samples.
N_T is the number of transmit antennas and must be equal to the NumTransmitAntennas property value of tgax.

Data Types: single | double
Complex Number Support: Yes

Output Arguments

expand all

`y` — Output signal
complex matrix

Output signal, returned as an N_S-by-N_R complex matrix, where:

N_S is the number of samples.
N_R is the number of receive antennas and is equal to the NumReceiveAntennas property value of tgax.

Data Types: single | double

`pathGains` — Path gains of the fading process
complex array

Path gains of the fading process, returned as an N_S-by-N_P-by-N_T-by-N_R complex array, where:

N_S is the number of samples.
N_P is the number of resolvable paths, that is, the number of paths defined for the case specified by the DelayProfile property.
N_T is the number of transmit antennas and is equal to the NumTransmitAntennas property value of tgax.
N_R is the number of receive antennas and is equal to the NumReceiveAntennas property value of tgax.

Data Types: single | double

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

Specific to wlanTGaxChannel

info Characteristic information about multipath fading channels

Common to All System Objects

`step`	Run System object algorithm
`release`	Release resources and allow changes to System object property values and input characteristics
`reset`	Reset internal states of System object

Note

reset: If the RandomStream property of the System object is set to 'Global stream', the reset function resets the filters only. If you set RandomStream to 'mt19937ar with seed', the reset function not only resets the filters, but also reinitializes the random number stream to the value of the Seed property. This results in the same channel realization.

Examples

collapse all

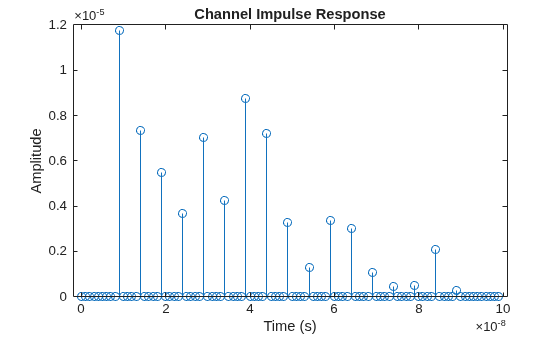

TGax Channel Impulse Response

Open Live Script

Obtain a channel impulse response by filtering an impulse through a TGax channel.

Create an impulse.

input = zeros(100,1);
input(10) = 1;

Create the TGax channel System Object with path loss and shadowing, two penetrated floors, and a sampling rate of 1 GHz.

tgax = wlanTGaxChannel;
tgax.LargeScaleFadingEffect = 'Pathloss and shadowing';
tgax.NumPenetratedFloors = 2;
tgax.RandomStream = 'mt19937ar with seed';
tgax.Seed = 10;
tgax.SampleRate = 1e9;

Plot the output impulse response of the channel.

figure
time = (1/tgax.SampleRate)*(0:length(input)-1);
stem(time,abs(tgax(input)))
xlabel('Time (s)')
ylabel('Amplitude')
title('Channel Impulse Response')

Figure contains an axes object. The axes object with title Channel Impulse Response, xlabel Time (s), ylabel Amplitude contains an object of type stem.

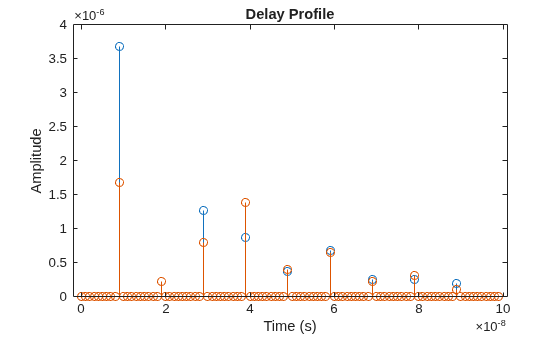

TGax Channel Delay Profile and Path Gains

Open Live Script

Plot the delay profile and path gains of a TGax channel.

Create an impulse.

input = zeros(100,4);
input(10) = 1;

Create the TGax channel System Object. Enable path gains at the output, and specify path loss, 20 MHz of channel bandwidth, a 4x2 MIMO channel, four penetrated floors, and a sampling rate of 1 GHz.

tgax = wlanTGaxChannel;
tgax.LargeScaleFadingEffect = 'Pathloss';
tgax.ChannelBandwidth = 'CBW20';
tgax.NumTransmitAntennas = 4;
tgax.NumReceiveAntennas = 2;
tgax.NumPenetratedFloors = 4;
tgax.RandomStream = 'mt19937ar with seed';
tgax.Seed = 10;
tgax.SampleRate = 1e9;
tgax.PathGainsOutputPort = true;

Filter the input impulse. Use the TGax channel object to generate the output response and the path gains.

[out,pathgains]= tgax(input);

Plot the output impulse response of the channel. The channel has two delay profiles, one per each receive antenna.

figure
time = (1/tgax.SampleRate)*(0:length(input)-1);
stem(time,abs(out))
xlabel('Time (s)')
ylabel('Amplitude')
title('Delay Profile')

Figure contains an axes object. The axes object with title Delay Profile, xlabel Time (s), ylabel Amplitude contains 2 objects of type stem.

The path gains of the channel are contained in a four dimensional array since the channel has nine resolvable paths, four transmit antennas and two receive antennas.

size(pathgains)

ans = 1×4

   100     9     4     2

Compare Random Number Sources for TGn Channel

Open Live Script

Create a non-HT configuration object with default parameters. Generate a waveform for the configuration.

cfg = wlanNonHTConfig;
tx = wlanWaveformGenerator([1;0;0;1],cfg);

Create a TGn channel System object with default parameters. Display the value of the RandomStream property.

tgnChan = wlanTGnChannel;
disp(tgnChan.RandomStream)

Global stream

Pass the waveform through the channel twice, resetting the System object between the two iterations.

for i = 1:2
    rx(:,i) = tgnChan(tx);
    reset(tgnChan);
end

Compare the two received waveforms. They are different because the reset object function resets the filters and the channel object takes new random numbers from the global stream. This causes it to generate a different channel realization.

isequal(rx(:,1),rx(:,2))

ans = logical
   0

Now release the System object and set the RandomStream property to "mt19937ar with seed".

release(tgnChan);
tgnChan.RandomStream = "mt19937ar with seed";

Pass the waveform through the channel twice, resetting the System object between the two iterations.

for i = 1:2
    rx(:,i) = tgnChan(tx);
    reset(tgnChan);
end

Compare the two received waveforms. They are equal because the channel realization is the same for both iterations. This happens because the reset function reinitializes the random number stream to the value of the Seed property, so the channel object uses the same random numbers for both channel realizations.

isequal(rx(:,1),rx(:,2))

ans = logical
   1

Algorithms

expand all

The algorithms used to model the TGax channel are based on those used for the TGn channel (as described in wlanTGnChannel and TGn Channel Models [2]) and the TGac channel (as described in wlanTGacChannel and TGac Channel Model Addendum [3]). Complete information on the changes required to support TGax channels can be found in TGax Channel Model [1]. The changes to support the TGax channel include lower bandwidths, floor separation attenuation, wall separation attenuation, and path loss and shadowing.

Floor Separation Attenuation

In the TGax channel, the path loss model used to compute the spatial correlation accounts for floor separation attenuation effects. The floor separation loss depends on the number of floors penetrated, as shown in the equation:

PEL_floor= 18.3n^{(n +
2)/(n + 1) -0.46},

where n is the number of floors, represented by the NumPenetratedFloors property of the System object. For more information, see TGax Channel Model [1].

Wall Separation Attenuation

In the TGax channel, the path loss model used to compute the spatial correlation accounts for wall separation attenuation effects. The wall separation loss is defined by the following equation:

PEL_wall= m×L_iw.

Where m is the number of walls penetrated, and L_iw is the penetration loss for a single wall. The variables m and L_iw are represented by the NumPenetratedWalls and WallPenetrationLoss properties of the System object, respectively. For more information, see TGax Channel Model [1].

MIMO Enhancements

The TGn channel model supports no more than 4x4 MIMO, while the TGax model supports 8x8 MIMO.

The TGax model uses per-user angle diversity to support simultaneous communication between multiple user stations and an access point. For each channel realization, the model achieves this by adding pseudorandom offsets to the angles of arrival and departure of each cluster before the calculation of the spatial correlation matrix. Different offsets are chosen for each positive value of the UserIndex property. This causes the angles of arrival and departure for each cluster to differ between users.

Changing the TransmissionDirection property swaps the angle of arrival of each cluster with its corresponding angle of departure. For more details, see the Appendix of [3].

To see how the UserIndex property can be used in an application, see this example: 802.11ax Packet Error Rate Simulation for Uplink Trigger-Based Format.

Path Loss and Shadowing

In TGax Channel Model [1], Table 3 defines path loss parameters that are slightly modified from those defined for TGn. The floor penetration loss and wall penetration loss are added to this path loss.

The path loss exponent and the standard deviation of the shadow fading loss characterize each model. The two parameters depend on the presence of a line of sight (LOS) between the transmitter and receiver. For paths with a transmitter-to-receiver distance, d, less than the breakpoint distance, d_BP, the LOS parameters apply. For d > d_BP, the non line of sight (NLOS) parameters apply. The table summarizes the path loss and shadow fading parameters.

Parameter	Model
Parameter	A	B	C	D	E	F
Breakpoint distance, d_BP (m)	5	5	5	10	20	30
Path loss exponent for d ≤ d_BP	2	2	2	2	2	2
Path loss exponent for d >d_BP	3.5	3.5	3.5	3.5	3.5	3.5
Shadow fading σ (dB) for d ≤ d_BP	3	3	3	3	3	3
Shadow fading σ (dB) for d >d_BP	4	4	5	5	6	6

Increased Bandwidth

TGax channels support bandwidths of up to 320 MHz whereas TGn channels have a maximum bandwidth of 40 MHz. By increasing the sampling rate and decreasing the tap spacing of the power delay profile (PDP), the TGn model is used as the basis for TGax. The channel sampling rate is increased by a factor of $2^{⌈ \log_{2} (W / 40) ⌉}$ , where W is the bandwidth. The PDP tap spacing is reduced by the same factor. This is shown in the table, which is adapted from Table 1 in [3].

Bandwidth, W	Sampling Rate Expansion Factor	PDP Tap Spacing (ns)
W ≤ 40 MHz	1	10
40 MHz < W ≤ 80 MHz	2	5
80 MHz < W ≤ 160 MHz	4	2.5
160 MHz < W ≤ 320 MHz	8	1.25
320 MHz < W ≤ 640 MHz	16	0.625
640 MHz < W ≤ 1280 MHz	32	0.3125

References

[1] Jianhan, L., Ron, P. et al. TGax Channel Model. IEEE 802.11-14/0882r4, September 2014.

[2] Erceg, V., Schumacher, L., Kyritsi, P. et al. TGn Channel Models. Version 4. IEEE 802.11-03/940r4, May 2004.

[3] Breit, G., Sampath, H., Vermani, S. et al. TGac Channel Model Addendum. Version 12. IEEE 802.11-09/0308r12, March 2010.

[4] Kermoal, J. P., L. Schumacher, K. I. Pedersen, P. E. Mogensen, and F. Frederiksen. “A Stochastic MIMO Radio Channel Model with Experimental Validation.” IEEE Journal on Selected Areas in Communications. Vol. 20, No. 6, August 2002, pp. 1211–1226.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

See System Objects in MATLAB Code Generation (MATLAB Coder).

Version History

Introduced in R2018a

wlanTGaxChannel

Description

Creation

Syntax

Description

Properties

SampleRate — Sample rate of the input signal 80e6 (default) | positive scalar

DelayProfile — Delay profile model 'Model-B' (default) | 'Model-A' | 'Model-C' | 'Model-D' | 'Model-E' | 'Model-F'

ChannelBandwidth — Channel bandwidth 'CBW80' (default) | 'CBW20' | 'CBW40' | 'CBW160' | 'CBW320'

CarrierFrequency — RF carrier frequency 5.25e9 (default) | positive scalar

EnvironmentalSpeed — Speed of the scatterers 0.089 (default) | positive scalar

TransmitReceiveDistance — Distance between transmitter and receiver 3 (default) | positive scalar

NormalizePathGains — Normalize path gains true or 1 (default) | false or 0

UserIndex — User index for single or multi-user scenario 0 (default) | positive integer

TransmissionDirection — Transmission direction 'Downlink' (default) | 'Uplink'

NumTransmitAntennas — Number of transmit antennas 1 (default) | positive integer

TransmitAntennaSpacing — Distance between transmit antenna elements 0.5 (default) | positive scalar

Dependencies

NumReceiveAntennas — Number of receive antennas 1 (default) | positive integer

ReceiveAntennaSpacing — Distance between receive antenna elements 0.5 (default) | positive scalar

Dependencies

LargeScaleFadingEffect — Large-scale fading effects 'None' (default) | 'Pathloss' | 'Shadowing' | 'Pathloss and shadowing'

NumPenetratedFloors — Number of building floors 0 (default) | positive integer

Dependencies

NumPenetratedWalls — Number of walls 0 (default) | positive integer

WallPenetrationLoss — Penetration loss of a single wall 5 (default) | real scalar

Dependencies

FluorescentEffect — Fluorescent effect true or 1 (default) | false or 0

Dependencies

PowerLineFrequency — Power line frequency '60Hz' (default) | '50Hz'

Dependencies

NormalizeChannelOutputs — Normalize channel outputs true or 1 (default) | false or 0

ChannelFiltering — Enable channel filtering true or 1 (default) | false or 0

NumSamples — Number of time-domain samples 1280 (default) | positive integer

Dependencies

OutputDataType — Data type of impaired signal 'double' (default) | 'single'

Dependencies

RandomStream — Source of random number stream 'Global stream' (default) | 'mt19937ar with seed'

Seed — Initial seed of mt19937ar random number stream 73 (default) | nonnegative integer

Dependencies

PathGainsOutputPort — Enable path gain output false or 0 (default) | true or 1

Usage

Syntax

Description

Input Arguments

x — Input signal complex matrix

Output Arguments

y — Output signal complex matrix

pathGains — Path gains of the fading process complex array

Object Functions

Specific to wlanTGaxChannel

Common to All System Objects

Examples

TGax Channel Impulse Response

TGax Channel Delay Profile and Path Gains

Compare Random Number Sources for TGn Channel

Algorithms

Floor Separation Attenuation

Wall Separation Attenuation

MIMO Enhancements

Path Loss and Shadowing

Increased Bandwidth

References

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using MATLAB® Coder™.

Version History

See Also

Objects

`SampleRate` — Sample rate of the input signal
`80e6` (default) | positive scalar

`DelayProfile` — Delay profile model
`'Model-B'` (default) | `'Model-A'` | `'Model-C'` | `'Model-D'` | `'Model-E'` | `'Model-F'`

`ChannelBandwidth` — Channel bandwidth
`'CBW80'` (default) | `'CBW20'` | `'CBW40'` | `'CBW160'` | `'CBW320'`

`CarrierFrequency` — RF carrier frequency
`5.25e9` (default) | positive scalar

`EnvironmentalSpeed` — Speed of the scatterers
`0.089` (default) | positive scalar

`TransmitReceiveDistance` — Distance between transmitter and receiver
`3` (default) | positive scalar

`NormalizePathGains` — Normalize path gains
`true` or `1` (default) | `false` or `0`

`UserIndex` — User index for single or multi-user scenario
`0` (default) | positive integer

`TransmissionDirection` — Transmission direction
`'Downlink'` (default) | `'Uplink'`

`NumTransmitAntennas` — Number of transmit antennas
`1` (default) | positive integer

`TransmitAntennaSpacing` — Distance between transmit antenna elements
`0.5` (default) | positive scalar

`NumReceiveAntennas` — Number of receive antennas
`1` (default) | positive integer

`ReceiveAntennaSpacing` — Distance between receive antenna elements
`0.5` (default) | positive scalar

`LargeScaleFadingEffect` — Large-scale fading effects
`'None'` (default) | `'Pathloss'` | `'Shadowing'` | `'Pathloss and shadowing'`

`NumPenetratedFloors` — Number of building floors
`0` (default) | positive integer

`NumPenetratedWalls` — Number of walls
`0` (default) | positive integer

`WallPenetrationLoss` — Penetration loss of a single wall
`5` (default) | real scalar

`FluorescentEffect` — Fluorescent effect
`true` or `1` (default) | `false` or `0`

`PowerLineFrequency` — Power line frequency
`'60Hz'` (default) | `'50Hz'`

`NormalizeChannelOutputs` — Normalize channel outputs
`true` or `1` (default) | `false` or `0`

`ChannelFiltering` — Enable channel filtering
`true` or `1` (default) | `false` or `0`

`NumSamples` — Number of time-domain samples
`1280` (default) | positive integer

`OutputDataType` — Data type of impaired signal
`'double'` (default) | `'single'`

`RandomStream` — Source of random number stream
`'Global stream'` (default) | `'mt19937ar with seed'`

`Seed` — Initial seed of mt19937ar random number stream
`73` (default) | nonnegative integer

`PathGainsOutputPort` — Enable path gain output
`false` or `0` (default) | `true` or `1`

`x` — Input signal
complex matrix

`y` — Output signal
complex matrix

`pathGains` — Path gains of the fading process
complex array

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
