Contours for triangular grids

Generate smooth contours for functions defined on unstructured triangular grids

您现在正在关注此提交

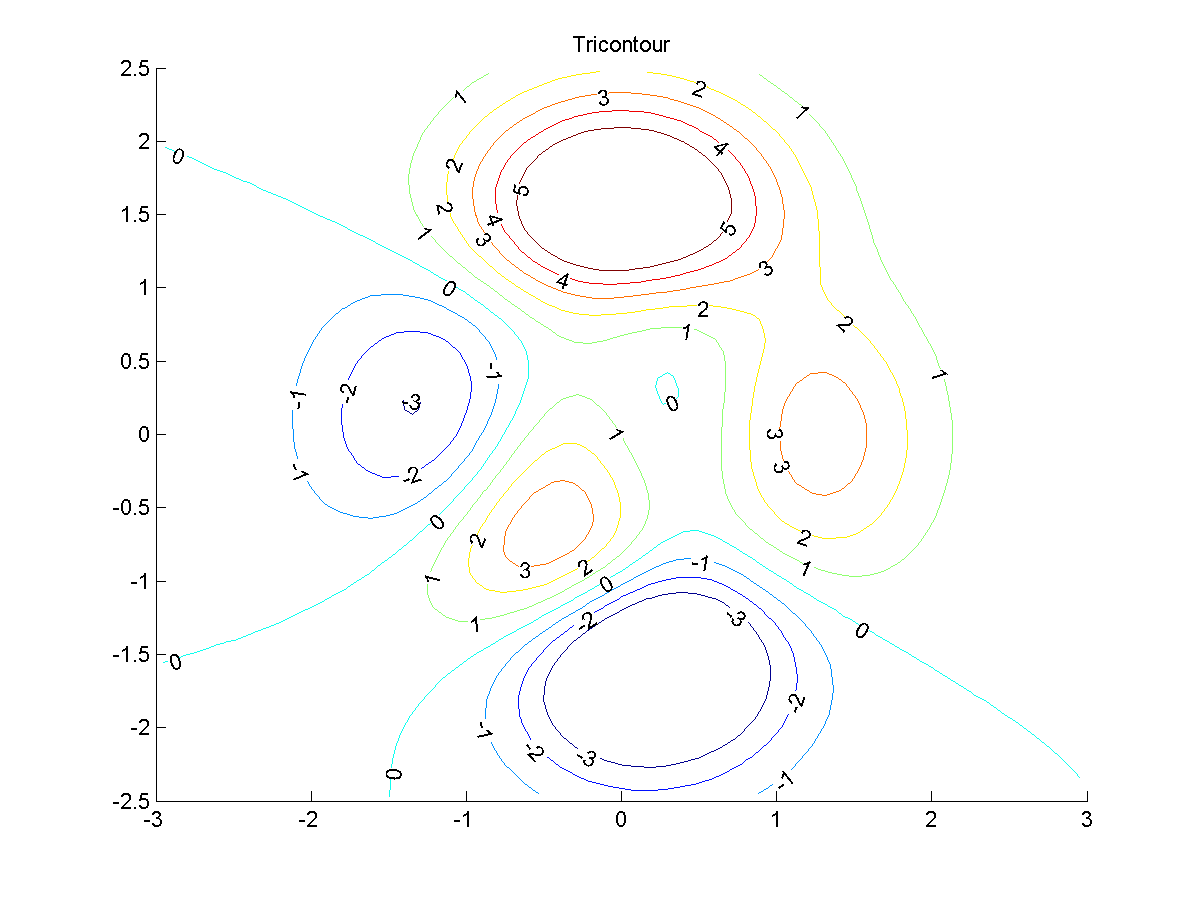

Plots the contours of a function defined on an unstructured triangular grid directly, without the need to interpolate back onto a Cartesian array.

I have attempted to replicate much of the functionality of the regular "contour" function.

Type "help tricontour"

Type "contourdemo" for some examples

You may also find my mesh generator "mesh2d.m" in the physics and Chem section helpful.

UPDATE 11/05/2006
- Can now be used with clabel
- A bit faster

UPDATE 15/05/2006
- Much more accurate (now uses quadratic interpolation)
