barweb (BARgraph With Error Bars)

版本 1.2.0.0 (2.8 KB) 作者: Bolu Ajiboye

Plots a fully customizable grouped bar graph with error bars

关注

4.7

(79)

38.9K 次下载

更新时间 2009/10/1

查看许可证

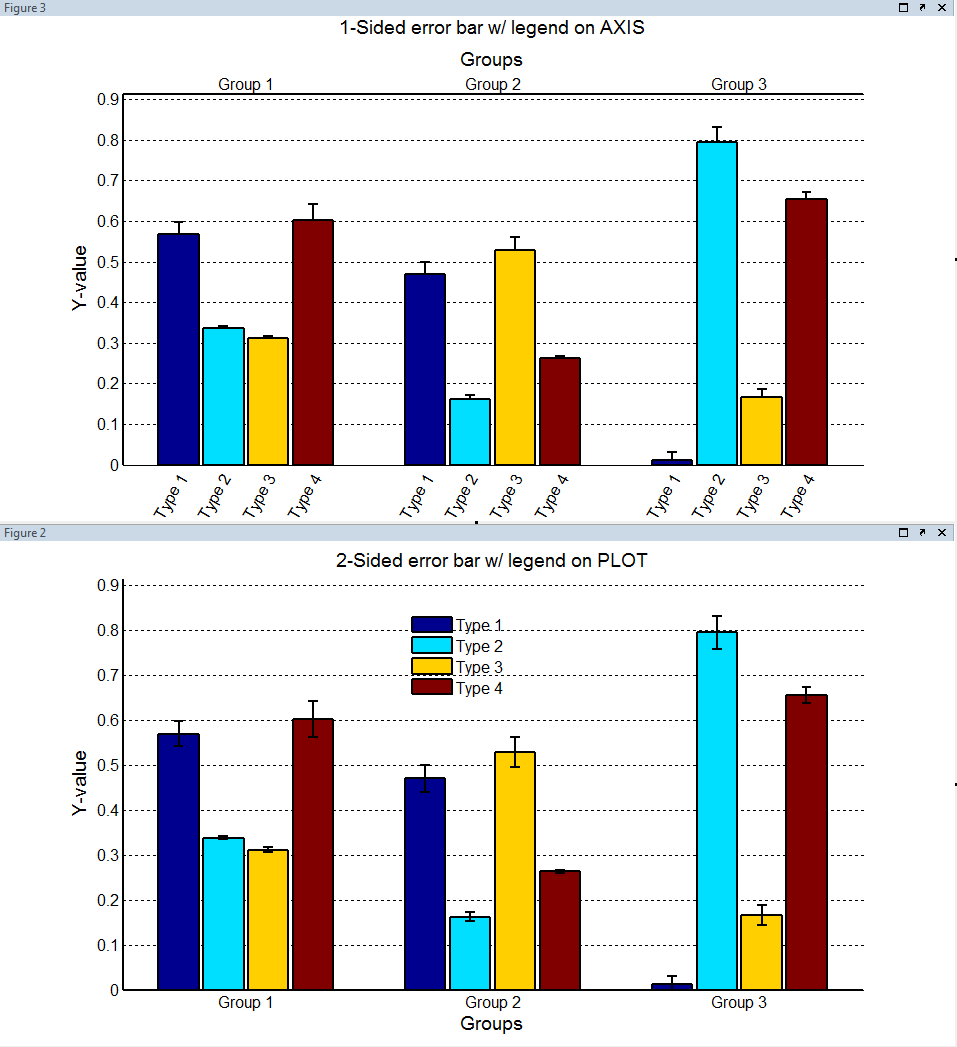

barweb.m calls the BAR and ERRORBAR MATLAB functions to produce bar graphs with error bars. The resultant graph is fully customizable, from group naming to legend inclusion to colormap setting. It assumes an m-by-n y-input matrix and plots m groups of n bars. The errorbar matrix must be setup the same way as the barvalues matrix (i.e. same dimensionality, matched values must have same indexes)

Syntax:
barweb(barvalues, errors, width, groupnames, bw_title, bw_xlabel, bw_ylabel, bw_colormap, gridstatus, bw_legend)

引用格式

Bolu Ajiboye (2024). barweb (BARgraph With Error Bars) (https://www.mathworks.com/matlabcentral/fileexchange/10803-barweb-bargraph-with-error-bars), MATLAB Central File Exchange. 检索来源 2024/4/23.

MATLAB 版本兼容性

创建方式 R14SP3

兼容任何版本

平台兼容性

Windows macOS Linux

类别

MATLAB > Graphics > 2-D and 3-D Plots > Data Distribution Plots > Bar Plots >

在 Help Center 和 MATLAB Answers 中查找有关 Bar Plots 的更多信息

标签添加标签

致谢

启发作品: superbar, BarTwoYaxis, Create Healthy Looking Error Bars, barwebpairs (pair bars within groups and between groups), pierremegevand/errorbar_groups

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

barweb(barvalues, errors, width, groupnames, bw_title, bw_xlabel, bw_ylabel, bw_colormap, gridstatus, bw_legend, error_sides, legend_type)

版本	已发布	发行说明
1.2.0.0	2009/10/1	Changed the usage information	下载
1.1.0.0	2009/9/28	1) Now able to plot 1 vs 2-sided barwebs 2) Now able to show legend along x-axis or on standard plot 3) Made code more robust by using bar children features rather than calculating x positions manually 4) other small fixes	下载
1.0.0.0	2006/12/7	Updated to return handles to different aspects of plot	下载
