Anatomy IntersectionDistrib​ution Analysis

版本 1.0.3 (40.9 KB) 作者: Carina Micheler
MATLAB classes for 3D mesh intersection analysis and interactive slice/3D distribution views.
0.0 次下载
更新时间 2025/9/1

查看许可证

MATLAB classes for analyzing intersections and distributions of 3D defect models. Developed in the context of orthopaedic research for pelvic defect evaluation, but also applicable to other anatomical or technical surface models.
  • Intersection.m – computation of intersections between defect volume models, intersection thresholds
  • Distribution.m – statistical evaluation and visualization (frequencies)
Key Features:
Intersection
1. Sequential intersections: intersectSeq – Computes sequential intersections across combinations (not recommended)
2. Pairwise Intersections for any intersection combinations (recommended)
  • intersectBox: Pre-filters points using a non-axis-aligned bounding box
  • intersectPairs: Performs pairwise point-in-volume tests using inpolyhedron, returns index masks
  • intersectCount: Builds frequency tables across pairings and filters by intersection thresholds
3. Comparison: Compares intersection types (unique vs. shared vertices/points)
Distribution
1. Distribution: Distribution of anatomical models with reference points within the reference model
2. Visualization: Creates 2D slice views (axial/sagittal/coronal) in 3D reference model
How to Use:
1. Code structure: The Intersection and Distribution Classes can be integrated into a corresponding main script. The key parts of the code are extracted into individual functions for reuse.
2. Import: Import your STL mesh into MATLAB and add the inpolyhedron function to your path
3. Run Intersection Analysis: Compute intersections for any intersection combinations
4. Distribution in relation to reference model
5. Visualize distributions (2D/3D Views) in reference model
Use Cases:
  • 3D Mesh Intersection: Determine intersection regions of multiple triangulated surfaces or volumes
  • Identify points that appear in multiple intersections (frequency analysis)
  • Visualization: Explore mesh intersections in 2D slice views (axial/sagittal/coronal)
Benefits:
  • Flexible: Works with any STL-based geometry
  • Efficient: Uses index masks instead of large logical arrays
  • Scalable Intersections: With pairwise intersections and the linked frequency tables, any intersection can be derived

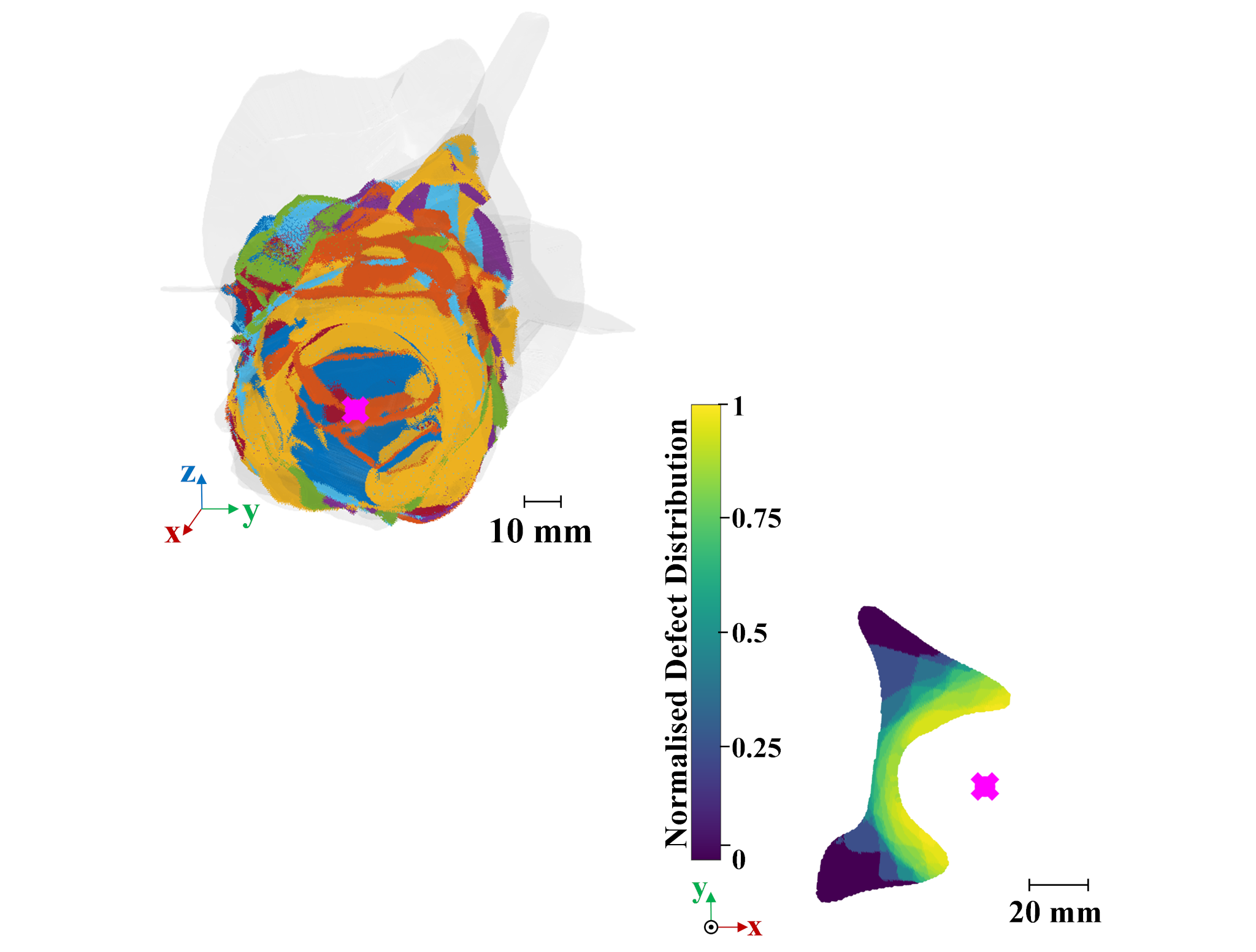

  • Evaluation: Supports multiple intersection types (alpha, refinedAlpha, inside, grid) and compares them
Keywords:
STL, mesh processing, intersection analysis, overlap analysis, point-in-polyhedron, inpolyhedron, slice view, pelvis
Compatibility:
These classes are compatible with MATLAB and can easily be integrated into existing workflows for analysing the intersections of anatomical models. It is optimised for MATLAB 2024a but should be compatible with the most recent versions of MATLAB.
Disclaimer:
This MATLAB class is provided on the MATLAB File Exchange for educational and research purposes. Users should ensure that the class meets their specific analysis requirements and may need to adapt it accordingly. The code is provided "as-is," and the author assumes no responsibility for its use or any consequences thereof.
References:
  • Johannes Korsawe (2025). Minimal Bounding Box (https://www.mathworks.com/matlabcentral/fileexchange/18264-minimal-bounding-box), MATLAB Central File Exchange.
  • Sven (2025). inpolyhedron - are points inside a triangulated volume? (https://www.mathworks.com/matlabcentral/fileexchange/37856-inpolyhedron-are-points-inside-a-triangulated-volume), MATLAB Central File Exchange.

引用格式

Carina Micheler (2025). Anatomy IntersectionDistribution Analysis (https://ww2.mathworks.cn/matlabcentral/fileexchange/181297-anatomy-intersectiondistribution-analysis), MATLAB Central File Exchange. 检索时间: .

MATLAB 版本兼容性
创建方式 R2024a
兼容任何版本
平台兼容性
Windows macOS Linux
