Descriptions:

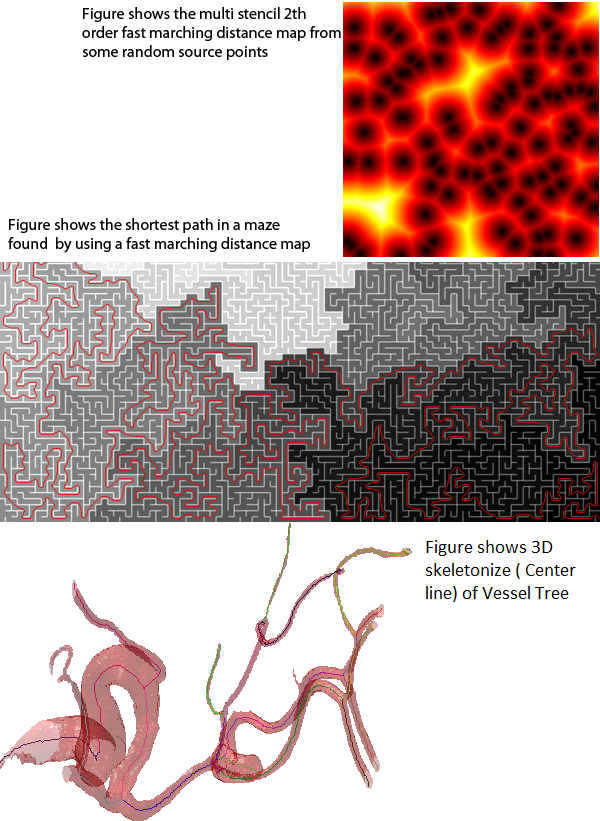

 The function MSFM2D/MSFM3D calculates the shortest distance from a list of points to all other pixels in an 2D or 3D image, using the Multistencil Fast Marching Method (MSFM). This method gives more accurate distances by using second order derivatives and cross neighbors.
 The function Skeleton will calculate an accurate skeleton (centerlines) of an object represented by an binary image / volume using the fastmarching distance transform.
 The function Shortestpath traces the shortest path from start point to source point using Euler or Runge Kutta 4 in the 2D or 3D distance map.
Implementation:
The 2D fast marching method is implemented in both Matlabcode and ccode. The ccode uses a custom build unsorted binary tree minimum search which out performs a normal binary sorted tree. The ccode is more than 500 times as fast as the matlabcode (compiled with the Microsoft Visual compiler).
Literature:
We used two papers:
 J. Andreas Baerentzen "On the implementation of fast marching methods for 3D lattices"
 M. Sabry Hassouna et al. "Multistencils Fast Marching Methods: A Highly Accurate Solution to the Eikonal Equation on Cartesian Domains"
 R. van Uitert et al. "Subvoxel precise skeletons of volumetric data based on fast marching methods"
We compared the results of our implementation with the results in the paper:
 Normal fast marching 1th order, exact the same results.
 2th order, significant smaller errors than in the paper.
 Multistencil 1th order, larger errors than in the paper
 Multistencil 2th order, significant worse results than published in the paper. (Note : Our results are in accordance to other existing implementations )
The last version of our code produces better result than in the paper or other literature. This is achieved by solving the polynomial roots using all the available information, as described by the comment of Olivier Roy below.
Examples:
Compile the ccode with mex msfm2d.c; mex msfm3d.c; mex rk4.c;
Try the examples in the help of msfm2d, shortestpath and skeleton
DirkJan Kroon (2020). Accurate Fast Marching (https://www.mathworks.com/matlabcentral/fileexchange/24531accuratefastmarching), MATLAB Central File Exchange. Retrieved .
1.12.0.0  Fixed Crashbug, and solved bug when curvature and 2e order are enabled. Shortestpath optimized.

1.8.0.0  Centerline in 3D now works robust. More Accurate see comment of Olivier Roy.

1.4.0.0  Added skeletonize method for vessel centerline extraction

1.3.0.0  Linux Ubuntu Tested

1.2.0.0  Changed ccode comments // to /* */


1.1.0.0  text
Inspired: Microscopy Image Browser (MIB), Microscopy Image Browser 2 (MIB2)
Create scripts with code, output, and formatted text in a single executable document.
Anyone compiled the Mex files with Matlab 2019a on Ubuntu 18.04 (gcc 7.4.0) by chance?
It might be necessary to compile the c functions with mex in compatible mode, for example:
mex compatibleArrayDims rk4.c
Prof. Kroon,
I am a researcher at the Academy of Mathematics and Systems Science, Chinese Academy of Sciences.
I reimplemented numerical experiences of the paper, Multistencils Fast Marching Methods:A Highly Accurate Solution to the Eikonal Equation on Cartesian Domains, through your code. When I used your program to test the convergence order of the MSFM2 method, I found that it did not reach the secondorder convergence and only reached the firstorder convergence. In other words, I used your code to reimplement the result of TABLE 10 of the reference paper, and there occured a problem.
I don't know where the problem is. In the attached file, the m file is my test code, and the pdf file is the reference paper for your program.
Thanks. I am looking forward to your reply eagerly. I can hardly find your email address on the internet. You can reply to my Email, my Email address is 'lusong@lsec.cc.ac.cn' .
Best wishes,
Song Lu,
Institution: LSEC, AMSS, CAS
Hello all,
I'm using matlab 2017a and whenever I run:
SourcePoint=rand(2,100)*255+1;
SpeedImage = ones([256 256]);
tic; T1_MSFM2 = msfm(SpeedImage, SourcePoint, true, true); toc;
figure, imshow(T1_MSFM2,[]); colormap(hot(256));
I get back a binary image with 1s and 0s.
Anyone knows how to fix this?
When running shortestpath.m, MATLAB crashes: "MATLAB has encountered an internal problem and needs to close." I tried deleting "__inline" throughout rk4.c, and I also tried replacing "__inline" with "static inline". No change in outcome. Any suggestions?
I've gotten some very nice results with this method, however I have noticed that many smaller features of my image are ignored and do not receive skeleton lines. I have a scan of a full mouse lung so I go from vessels of ~1000 um in diameter to about 15 um. These smaller ones seem to not have centrelines. Is there any parameter I could change to improve this?
Hello, I have a problem compiling rk4.c on a Mac architecture. I got this message :Error using mex
Undefined symbols for architecture x86_64:
"_interpgrad3d", referenced from:
_RK4STEP_3D in rk4.o
ld: symbol(s) not found for architecture x86_64
clang: error: linker command failed with exit code 1 (use v to see invocation)
Error in compile_c_files (line 15)
mex compatibleArrayDims rk4.c
Do you have any advice ?
My bad. I should have compiled the code first.
Hi, I tried to run the example inside skeleton.m, but the script failed with the following errors. Please advise how to fix it. Thank you.
***********************************************
I=im2double(rgb2gray(imread('images/vessels2d.png')));
% Convert double image to logical
Ibin=I<0.5;
% Use fastmarching to find the skeleton
S=skeleton(Ibin);
% Display the skeleton
figure, imshow(Ibin); hold on;
for i=1:length(S)
L=S{i};
plot(L(:,2),L(:,1),'','Color',rand(1,3));
end
Distance Map Constructed
Find Branches Iterations : 0
Attempt to execute SCRIPT rk4 as a function:
C:\Matlab_work\FastMarching_version3b\shortestpath\rk4.m
Error in shortestpath (line 64)
EndPoint=rk4(StartPoint, GradientVolume, Stepsize);
Error in skeleton (line 97)
ShortestLine=shortestpath(T,StartPoint,SourcePoint,1,'rk4');
sorry, I haven't read the dmi pr's answer. Now the example in shortestpath.m is running incredibly slow. Has anyone else had the same problem?
Hi, please read the comments from 'carter griest'. It may solve your problem about the code.
@hone Greenhall, take dmi pr's advice and recompile all of the .c files with compatibleArrayDims like this:
mex compatibleArrayDims msfm2d.c
mex compatibleArrayDims msfm3d.c
cd('shortestpath');
mex compatibleArrayDims rk4.c
When running the example in shortestpath.m, I keep getting the "MATLAB has encountered an internal problem and needs to close." error message. Looking into the details, it looks like there's an access violation in the rk4.mexw64 file. I am running MATLAB 2017b on windows 10. Has anyone else run into this issue?
Excellent implementation
I have a question the dx and the dy, they can be varied.
Tested on 201 cubed image with uniform speed. Seed was center, i.e. [ 101, 101, 101 ]. The resulting contour at distance=50 was as posted in this image. https://imgur.com/a/59yh2 Expected something closer to a sphere, or at least something with twofold symmetry over each axial plane. Please investigate so I can rate you up!
Tested on 201 cubed image with uniform speed. Seed was center, i.e. [ 101, 101, 101 ]. The result was as posted in this image. https://imgur.com/a/59yh2 Expected something closer to a sphere, or at least something with twofold symmetry over each axial plane. Please investigate so I can rate you up!
To use with new versions of Matlab just add compatibleArrayDims when compile a mex files, like this:
mex compatibleArrayDims msfm2d.c
Anyone knows how to debug the toolbox for Matlab 2017a (as it only returns '1' with this version of matlab)?
I tried this for all the night, it executes very slow, the problem is it can't find all the centerline of my vessel, feel so frustrated...
thanks for the code i have tried to find a code like this in github for a week...what a surprise!!!
Is there a way to refine the resolution of the mesh used to calculate the target distances for the msfm.m function for the 2d image?
@Enoch Pae I didn't use the functions you tried but all I can tell you is theses scritps doesn't work on Matlab R2017a (I tried). It works properly on Matlab 2015 though (with an appropriate compiler).
Thank you DirkJan Kroon.
I used the ShortestPath on 3D binary data and the script worked successfully.
I am currently using mac os Sierra 10.12.4 and Matlab R2017a.
Whenever I try to use the skeleton.m on the examples, it gets trapped in the while loop in shortestpath.m
Turns out it gets problem with the rk4 function in
line 64 EndPoint=rk4(StartPoint, GradientVolume, Stepsize);
the EndPoint keeps returning NaN's.
I've erased all the __inline in rk4.c and compiled it.
Anybody else encountered such problem?
Also, is it right that the getBoundaryDistance function is supposed to return a matrix with only 1, 0 values?
line 73 [SourcePoint,maxD]=maxDistancePoint(BoundaryDistance,I,IS3D);
in skeleton.m
Then why bother getting maxD, if it's always 0? just curious.
Thanks
Thanks for the code, msfm works great.
Thanks for the code, by the way, msfm works great.
Thank you very much for your submission. It is very useful.
I use skeleton to find the centerline of an aorta. The problem when I have big matrix (512*512*559) it take a lot of time and I have no result. How can I resolve this problem? Thank you
Fantastic, clean skeleton in 3D, albeit a bit slow (average 5 min) but worth the time.
EDIT:
have you tried to find skeleton of the square, which height and width are equal to some odd number, let's say 41? In that case algorithm throws an error:
Output argument "S" (and maybe others) not assigned during call to "skeleton>OrganizeSkeleton".
Temporary solution:
change line
if(linelength<maxD*2), break; end;
to
if(linelength<maxD*1.2), break; end;
int the skeleton.m file
Yes it only returns 1 with recent versions of matlab
There are a lot of compiler warnings which may be the problem
when I run Example 2D
it retuens T1_FMM1 T1_MSFM1 T1_FMM2 T1_MSFM2, but these value are all 1
what is the problem?
With the Windows 10 updates, there are a lot of issues using mex to compile. Could you please just compile these files into matlab functions and make them available? Thank you!
Some more compiling notes for Mac OS X 10.11.5 with Matlab 2016a:
 remove all instances of "__inline" in rk4.c
 change all "/* comment styles */" into "// comment" styles in all *.c files
Hi All,
who has the c++ code of fast marching algorithm? could you please send me?
Best,
@Ebrahim deleting the "__inline" prefix to interpgrad3d on line 76 fixes the problem.
I get an error compiling rk4.c (Error output shown below). Any suggestions on how to fix this?
>> mex('rk4.c')
Building with 'Xcode with Clang'.
Error using mex
Undefined symbols for architecture x86_64:
"_interpgrad3d", referenced from:
_RK4STEP_3D in rk4.o
ld: symbol(s) not found for architecture x86_64
clang: error: linker command failed with exit code 1 (use v to see invocation)
hi, thank you for shared your code.
but I'm new matlab programmer, can anyone tell me how to run this code, please?
I like this code since it gives each individual branch with coordinates sorted. However, I recently cannot run the 3d matrix (even the size is very small). It hangs over the first iteration forever. I run it before with much larger matrix, and it worked well. Just suddenly stop working, not even the exampled volume. I re downloaded, but no help. Any thoughts? Thanks!
Hi Dirk,
Just found an error in the matlab function file named 'msfm2d'. It is located in the subfunction 'CalculateDistance'. There is a line where you try to calculate the distance using the cross directions, i.e., 'Coeff=Coeff + [...]'. I think 'Coeff' should be reinitialized with a correction as 'Coeff=[...]'. I guess this may be a translation error since I didn't find it in your corresponding C version .
This it is a good support and can helps a a lot.
But one question: how can I run this code for my 3D vascular tree already extracted with threshold method now I need to extract the centerline?
Thank you !
Cannot run skeletization in 3D as msfm3d.m not a function resulting in the following error:
Attempt to execute SCRIPT msfm3d as a function:
C:\Users\Will\Desktop\Matlab Tools\functions\msfm3d.m
Error in msfm (line 105)
T=msfm3d(F, SourcePoints, UseSecond, UseCross);
Error in skeleton>getBoundaryDistance (line 201)
BoundaryDistance = msfm(SpeedImage, SourcePoint, false, true);
Error in skeleton (line 66)
BoundaryDistance=getBoundaryDistance(I,IS3D);
Please advise, many thanks
Some compiling notes for clang (mac):
change 'inline' to 'static inline' before compiling with mex
Hi Dirk,
Thanks a lot for sharing your code! One thing though, quite basic stuff I am afraid, but hopefully you can help: I cannot compile rk4, I get the error below.
Any help will be more than welcomed!
Pablo
Building with 'Xcode with Clang'.
Error using mex
Undefined symbols for architecture x86_64:
"_interpgrad3d", referenced from:
_RK4STEP_3D in rk4.o
ld: symbol(s) not found for architecture x86_64
clang: error: linker command failed with exit code 1 (use v to see invocation)
Error in compile_c_files (line 12)
mex('rk4.c');
Seems to have error for constant speed field tracking.
SpeedImage=ones(1000,1000)*0+1500;
SourcePoint=[800;400];
DistanceMap= msfm(SpeedImage, SourcePoint);
figure, imshow(DistanceMap,[0 3400])
StartPoint=[100;100];
ShortestLine=shortestpath(DistanceMap,StartPoint,SourcePoint);
hold on, plot(ShortestLine(:,2),ShortestLine(:,1),'r')
This work is good. But I have one suggestion that why not sort these vessel tree branches with bitree, so we are easy to show it consistently ?
Thanks for sharing! The skeleton runs quite slow when dealing with 3D data. Is there a fast version (e.g. mex)?
Great submission! Thanks.
I have a quick question, I am using skeleton function on a 'C' shaped section (3 segments) but I end up with 2 segments only (1 long and 1 short). Any ideas?
Great toolbox! Would it be possible to allow for anisotropic voxels? Thanks
skeleton function example doesn't work.somebody help me please
skeleton function example doesn't work.somebody help me please
Excellent code!
In response Mark Drakesmith's question in April, one can call the shortestpath function once by specifying the StartPoint and SourcePoint in the skeleton function.
I believe by creating groups of the starting points one could use parfor (on those groups) to compute distance maps and take advantage of multiple CPU cores with each core working on a group of the distance points.
Excellent. Just what I need for skeletonisation of 3D images. Has saved me lots of time!
Just one thing I am wondering... Is it possible to restrict the skeletonisation to a single, mostprobable, branch? All my images are of a single branch but, depending on which threshold I use, the algorithm gives me multiple branches.
Many thanks.
Hi every one.
I wrote FMM code in C++ by myself but for large number of grids, I think it take too much time. Would you please tell me know that typically how long it should take for running the efficient code in a mesh that contains 1 million grids.(100*100*100).
Thanks for your help in advance.
Can anyone help me how to use the compile cfiles code in 64bit computers.
I could not compile it on 64bit. I end up with the following error.
Error using ==> mex at 208
Unable to complete successfully.
On 32bit the memory of my computer is not sufficient even for 3D example..
Thanks for the contribution by the way..
Dear DirkJan Kroon,
For a sake a fast computation, I ran the example given in the skeleton file with a reduced version of the vessels3d =>V=V(1:128,1:128,1:128);
After final completion, if you display the skeleton along with an isosurface of the volume of interest (V), and rotate the figure, the skeleton seems to connect the three separated parts into one skeleton.
I think there should be some sort of check on whether the skeleton is passing a background area where there is no foreground voxels representing the blood vessel.
Unless I am doing something wrong, and if so, I will immediately apologize to you.
I also discovered a tiny mistake, easily solvable, in the example of your skeleton code (line 42  commented):
%V = imfill(Vraw > 30000,'holes');
It should be V instead of Vraw.
Otherwise, thank you for sharing this code with us.
Best regards,
Olivier Cros.
Hello, going along what Erik Valenti said, is there a .m version of the msmf3d.c code? Thanks
Thank you for this code! It is a great help for my research. Has anyone come across problems with running out of memory? If so, have you found a way to fix this problem.
Is there a way to get a MATLAB .m version of the msmf3d.c code? We are trying to keep everything to a MATLAB program if possible. Thanks
I find a large difference in my results between using and not using crossneighbours, and would like to know what exactly the crossneighbours are that you use  as I can not find a reference for them anywhere.
Are they the diagonal neighbours calculated via directional derivatives (Hassouna 2007)?
Thanks for sharing code. It is faster one than what I used for my research.
One problem I found: when I used constant speed, shortestpath code will crash. Also, shortestpath for 3D case (just like 2D since constant value in y direction) is not consistent with 2D case. I can send your my results if you want to take a look at them.
Here is a compiler error and the fix:
My compiler (gcc version "4.4.34ubuntu5)") gives the following error when compiling "rk4.c":

rk4.c: In function ‘RK4STEP_2D’:
rk4.c:133: error: expected expression before ‘/’ token
mex: compile of ' "rk4.c"' failed.
??? Error using ==> mex at 222
Unable to complete successfully.
Error in ==> compile_c_files at 12
mex('rk4.c');

The referred line says:
//double D[2],dl;
FIX:
Just replace the line with:
/*double D[2],dl;*/
Thanks for the great contribution!
Can you provide the m files of the c code? Some of us do not have matlab compiler.
Excellent job!
But I have a problem when I test it on my data, local tumor vascular which is unconnected volume.However,The result skeleton was turned out to be connected and passed through two separated vessels.How can I fix this?
Very useful submission，and I have a question that is how long it will be finished based on 3D image during your experiment?
*Olivier Roy,
Thanks for your very useful suggestion, to increase the accuracy.
My i ask a question: I prceed the codes as following, but the shortestpath is not finded. What is the reason?
My testing code:
SourcePoint = [26; 100]; %Starting point
F = zeros([101 101]);
F(9:27,10:12) = 1;
F(25:27,12:100) = 1;
SpeedImage = F*1000+0.001;
[X Y] = ndgrid(1:101, 1:101);
T1 = sqrt((XSourcePoint(1)).^2 + (YSourcePoint(2)).^2);
tic; T1_MSFM2 = msfm(SpeedImage, SourcePoint, true, true); toc;
figure, imshow(T1_MSFM2,[ ]); colormap gray;
StartPoint=[10;11];
ShortestLine=shortestpath(T1_MSFM2,StartPoint,SourcePoint);
hold on, plot(ShortestLine(:,2),ShortestLine(:,1),'g')
Great submission thanks. The tree structure you use is very efficient.
I compared, as you did, the accuracy of your implementation with the results reported in M. Sabry Hassouna et al. "Multistencils Fast Marching Methods: A Highly Accurate Solution to the Eikonal Equation on Cartesian Domains". Not sure exactly what they do but I found that the accuracy depends a lot on how the results of the two stencils are combined (which is somewhat arbitrary since we do not know a priori which stencil provides the most accurate result).
To improve the accuracy here is the trick: instead of computing the distance with the first and second stencils separately, simply sum the corresponding second order polynomials and solve the resulting second order equation. In other words, simply replace
if(usecross) {
Coeff[0]=0; Coeff[1]=0; Coeff[2]=1/(max(pow2(Fij),eps));
...
by
if(usecross) {
Coeff[0]+=0; Coeff[1]+=0; Coeff[2]+=1/(max(pow2(Fij),eps));
in the CalculateDistance function.
With this little modification, I could obtain better results that the aforementioned paper for their Experiment 1.
Note that a weighted sum of the two polynomials can also be done.
Hope this helps,
Olivier
Nice work !
But there are prohibitive memory problems when using the C version. The matlab script stops with the message (OUT OF MEMORY) when calling the MSFM2D several times inside the script.
*Daniela
The speed function may contain all values larger then zero.
But in practice you have numerical round offs, and because the next "time front" always depend on the old "time front", this error will grow and can sometimes become very high.
The code is easy to understand, but the speed function must be between [1e8,1], otherwise you get a complex number to value of T, where T is arrival time  this is not correct. Anybody observe/solve that? *Notice that such a constraint for F is theoretically wrong.*
Does this work with R2007a? Thank you
Nice submission, works perfectly, and well commented. Thank you!
One thing I was wondering:
Is it possible to give a maximum distance to compute, and not fill the entire image with correct distances? In my problem that would speed up computation considerably.
Furthermore, I deleted the line
if(itt==652221) { printf("569 \n"); }
in msfm2d.c as it put my command window full with 569s.
Great submition, works perfectly, simple to understand how it works, well done!
Fast and work perfectly. Very usefull for Path Planning
