Mesh voxelisation

Polygon mesh voxelisation
=========================

Adam H. Aitkenhead
adam.aitkenhead@christie.nhs.uk
The Christie NHS Foundation Trust

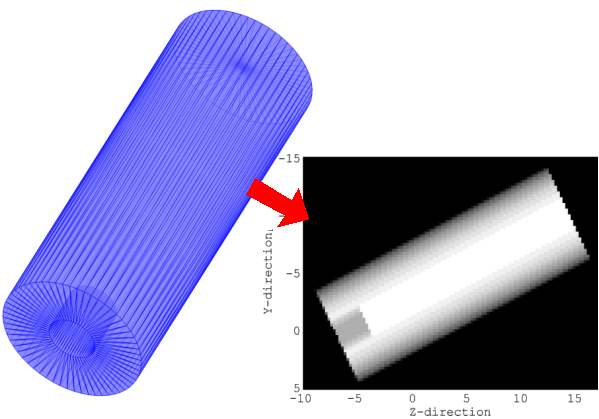

Voxelize a closed (ie. watertight) triangular-polygon mesh. The mesh can be in one of several formats: in an STL file; in a structure containing the faces and vertices data; in three 3xN arrays containing the x,y,z coordinates; or in a single Nx3x3 array defining the vertex coordinates for each of the N facets.


USAGE:
======

[gridOUTPUT,gridCOx,gridCOy,gridCOz] = VOXELISE(gridX,gridY,gridZ,STLin,raydirection)
...or...
[gridOUTPUT,gridCOx,gridCOy,gridCOz] = VOXELISE(gridX,gridY,gridZ,meshFV,raydirection)
...or...
[gridOUTPUT,gridCOx,gridCOy,gridCOz] = VOXELISE(gridX,gridY,gridZ,meshX,meshY,meshZ,raydirection)
...or...
[gridOUTPUT,gridCOx,gridCOy,gridCOz] = VOXELISE(gridX,gridY,gridZ,meshXYZ,raydirection)


INPUT PARAMETERS
================

gridX - Mandatory - 1xP array - List of the grid X coordinates.
OR an integer - Number of voxels in the grid in the X direction.

gridY - Mandatory - 1xQ array - List of the grid Y coordinates.
OR an integer - Number of voxels in the grid in the Y direction.

gridZ - Mandatory - 1xR array - List of the grid Z coordinates.
OR an integer - Number of voxels in the grid in the Z direction.

STLin - Optional - string - Filename of the STL file.

meshFV - Optional - structure - Structure containing the faces and vertices of the mesh, in the same format as that produced by the isosurface command.

meshX - Optional - 3xN array - List of the mesh X coordinates for the 3 vertices of each of the N facets
meshY - Optional - 3xN array - List of the mesh Y coordinates for the 3 vertices of each of the N facets
meshZ - Optional - 3xN array - List of the mesh Z coordinates for the 3 vertices of each of the N facets

meshXYZ - Optional - Nx3x3 array - The vertex positions for each facet, with:
1 row for each facet
3 columns for the x,y,z coordinates
3 pages for the three vertices

raydirection - Optional - String - Defines in which directions the ray-tracing is performed. The default is 'xyz', which traces in the x,y,z directions and combines the results.


OUTPUT PARAMETERS
=================

gridOUTPUT - Mandatory - PxQxR logical array - Voxelised data (1=>Inside the mesh, 0=>Outside the mesh)

gridCOx - Optional - 1xP array - List of the grid X coordinates.
gridCOy - Optional - 1xQ array - List of the grid Y coordinates.
gridCOz - Optional - 1xR array - List of the grid Z coordinates.


EXAMPLES
========

To voxelise an STL file:
>> [gridOUTPUT] = VOXELISE(gridX,gridY,gridZ,STLin)

To voxelise a mesh defined by a structure containing the faces and vertices:
>> [gridOUTPUT] = VOXELISE(gridX,gridY,gridZ,meshFV)

To voxelise a mesh where the x,y,z coordinates are defined by three 3xN arrays:
>> [gridOUTPUT] = VOXELISE(gridX,gridY,gridZ,meshX,meshY,meshZ)

To voxelise a mesh defined by a single Nx3x3 array:
>> [gridOUTPUT] = VOXELISE(gridX,gridY,gridZ,meshXYZ)

To also output the lists of X,Y,Z coordinates:
>> [gridOUTPUT,gridCOx,gridCOy,gridCOz] = VOXELISE(gridX,gridY,gridZ,STLin)

To use ray-tracing in only the z-direction:
>> [gridOUTPUT] = VOXELISE(gridX,gridY,gridZ,STLin,'z')


NOTES
=====

- Defining raydirection='xyz' means that the mesh is ray-traced in each of the x,y,z directions, with the overall result being a combination of the result from each direction. This gives the most reliable result at the expense of computation time.
- Tracing in only one direction (eg. raydirection='z') is faster, but can potentially lead to artefacts if rays exactly cross a facet edge.


REFERENCES
==========

- This code uses a ray intersection method similar to that described by:
Patil S and Ravi B. Voxel-based representation, display and thickness analysis of intricate shapes. Ninth International Conference on Computer Aided Design and Computer Graphics (CAD/CG 2005)
