subtightplot

版本 1.2.0.0 (122.2 KB) 作者: Felipe G. Nievinski
Asymmetric subplots with variable inner gaps and outer margins.
16.1K 次下载
更新时间 2013/1/8

查看许可证

subtightplot is a merger of Pekka Kumpulainen's tight_subplot and Nikolay S.'s subplot_tight. It extends the former, which supports asymmetric subplots, to allow for variable margins in addition to gaps, as in the latter.

Existing scripts that currently call Matlab's builtin subplot can be adapted with minimal modification by issuing the following command upfront:
subplot = @(m,n,p) subtightplot(m,n,p,opt{:});

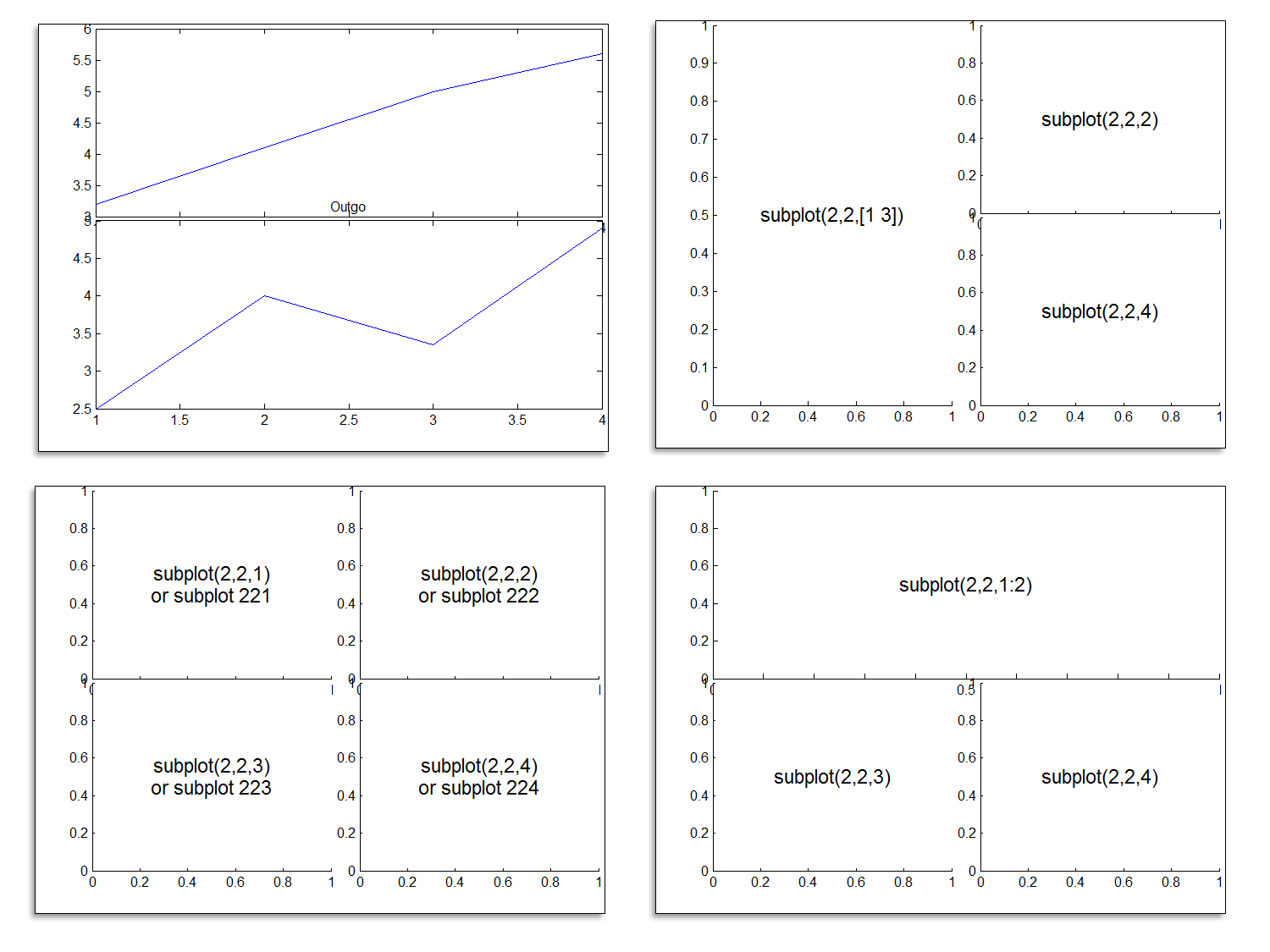

where opt = {gap, width_h, width_w} describes the inner and outer spacings. The screenshot attached shows demo results for examples modified from the subplot documentation.

For axes ticks and labels and locations, see Matlab's axes properties documentation, or try Eran Ofek's subplot1 for a more guided approach.

If you prefer a post-processing solution, see Richard Crozier's tightfig or Aditya's spaceplots.

Alon Geva's subplotplus is interesting for making complicated subplot arrangements; apparently gaps and margins are fixed. Aslak Grinsted's subaxis is based on a richer, more expressive HTML jargon. Joris Kampman's subplot_grid is a colossal 3500+ line object-based implementation. These high-end alternatives are a departure from the built-in subplot's calling syntax, though.

For an overview, please see the Dec 21st, 2012 post on the File Exchange Pick of the Week Blog, titled "Figure margins, subplot spacings, and more…".

引用格式

Felipe G. Nievinski (2024). subtightplot (https://www.mathworks.com/matlabcentral/fileexchange/39664-subtightplot), MATLAB Central File Exchange. 检索来源 .

MATLAB 版本兼容性
创建方式 R2011b
兼容任何版本
平台兼容性
Windows macOS Linux
类别
Help CenterMATLAB Answers 中查找有关 Subplots 的更多信息

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
版本 已发布 发行说明
1.2.0.0

acknowledging another FX submission.

1.1.0.0

acknowledged one more FX submission.

1.0.0.0
