Carpet Plot Toolkit

版本 1.0.0.0 (114.0 KB) 作者: Rob McDonald
A set of routines to make carpet plotting easier.
4.8
(4)
3.0K 次下载
更新时间 2013/3/18

查看许可证

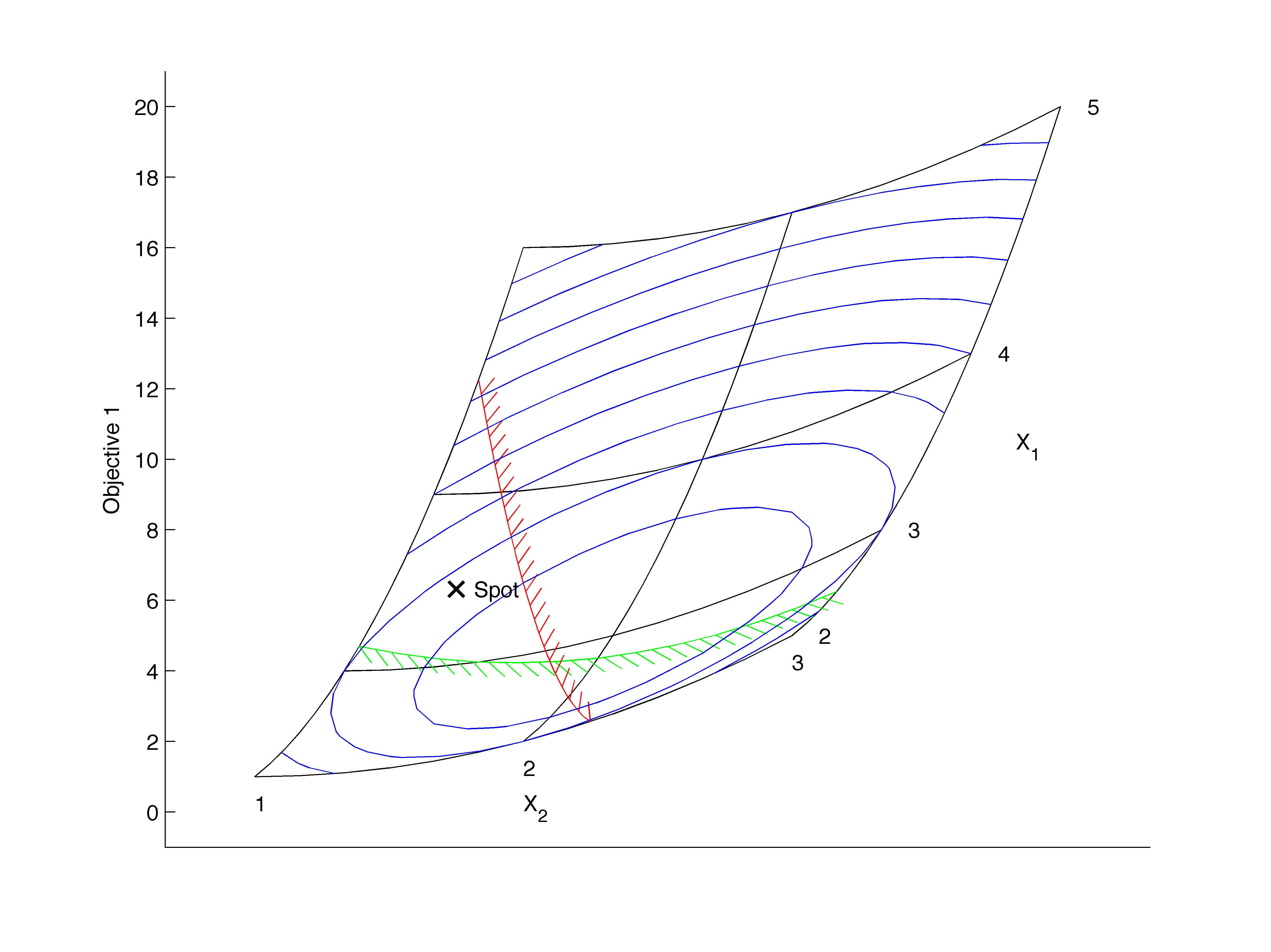

Carpet plots are a common means of visualizing multi-dimensional data in certain fields such as aircraft design.

These routines make generating carpet plots easier. These plots depict the response of a system of two independent variables plotted with a cheater axis.

Routines for labeling the axes, placing text labels, and converting contour lines to the carpet plot axes are also included.

引用格式

Rob McDonald (2024). Carpet Plot Toolkit (https://www.mathworks.com/matlabcentral/fileexchange/40831-carpet-plot-toolkit), MATLAB Central File Exchange. 检索时间: .

MATLAB 版本兼容性
创建方式 R2012b
兼容任何版本
平台兼容性
Windows macOS Linux
类别
在 Help Center 和 MATLAB Answers 中查找有关 Guidance, Navigation, and Control (GNC) 的更多信息
致谢

参考作品: Hatched Lines and Contours
