Colors for plotting

版本 1.0.0.0 (1.1 KB) 作者: Giorgos
Provides color variation for line plots.
785.0 次下载
更新时间 2013/9/18

查看许可证

For multiple plots on the same figure, current color schemes are often not satisfactory. This function provides a smooth transition from red, through green, to blue. The function is especially suited for visualisation of the dependence of a variable over small variations of a parameter.

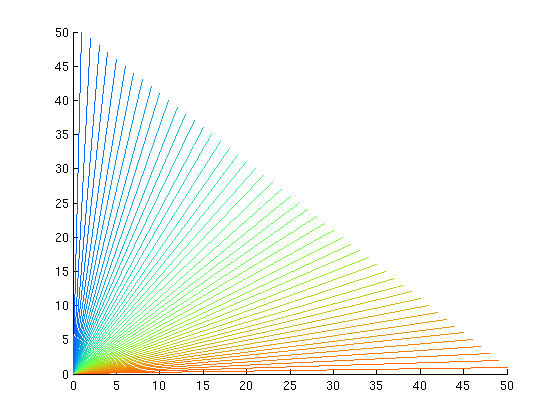

The following two ways can be used to reproduce the screenshot:

Color definition:
N = 50;
ColorSet = ColorBand(N);

Some data:
x = zeros(N, 2);
y = zeros(N, 2);
x(:,2) = N:-1:1;
y(:,2) = 1:N;

a) Separately set the color of each plot:
figure
hold on
for m = 1:N
plot(x(m,:), y(m,:), 'color', ColorSet(m,:));
end

b) Manually set the color order:
figure
hold all
set(gca, 'ColorOrder', ColorSet);
for m = 1:N
plot(x(m,:), y(m,:));
end

Special thanks to Jiro for the construction of a visually appealing example. See his blog on http://blogs.mathworks.com/pick/2008/08/15/colors-for-your-multi-line-plots/
