Simple Robotics Toolbox

版本 1.0.3 (259.4 KB) 作者: Cesar Chavez

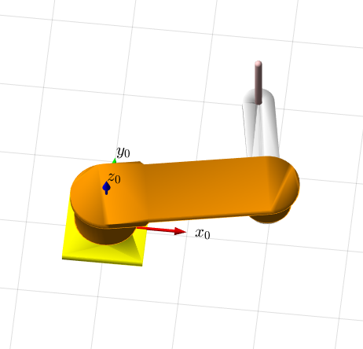

This toolbox is used to represent the kinematic diagram of any robot using both solid 3D frames and solid links.
5.0
(2)
3.1K 次下载
更新时间 2021/9/18

查看许可证

This is a simple robotics toolbox designed to study and understand the forward kinematics of robot manipulators.
Unlike Peter Corke's toolbox, the representation is not done automatically through the Denavit Hartenberg representation, but the homogeneous transformations are at the user's discretion and therefore the representation is built by the user. This feature enables to represent the kinematic diagram of parallel robots, such as the paralelogram configuration in the Fanuc Robots.
All the elements of any kinematic diagram can be represented with solid parts (3D frames, joints and links). The solid links need STL files. If you don't need the representation of solid links, these can be represented with simple lines.
The toolbox needs the next included complementary toolboxes/functions:
* FreezeColors toolbox by John Iversen (2005)
* Stlread and patchslim functions by Francis Esmonde-White (2010).
A couple of examples are provided for using this Toolbox.

引用格式

Cesar Chavez (2024). Simple Robotics Toolbox (https://www.mathworks.com/matlabcentral/fileexchange/80137-simple-robotics-toolbox), MATLAB Central File Exchange. 检索时间: .

MATLAB 版本兼容性
创建方式 R2016b
与 R2016b 及更高版本兼容
平台兼容性
Windows macOS Linux
类别
在 Help Center 和 MATLAB Answers 中查找有关 Robotics 的更多信息

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

Complementary toolboxes/STL

Complementary toolboxes/freezeColors

Complementary toolboxes/freezeColors/test

Examples/GUI ejemplo Graficar STL

Examples/Robot SCARA cinematica

Toolbox Robotica Chavez Matlab R2016b

版本 已发布 发行说明
1.0.3

Last update: sept 2021
1.0.1

A few useful functions were added
1.0.0
