Heat Exchanger using E-NTU method

版本 1.0.0 (1.9 KB) 作者: Rohan Kokate
Solves the heat transfer problem between two fluids using the Epsilon-NTU method. It plots the actual temperature profile of Heat Exchanger.
382.0 次下载
更新时间 2020/12/4

查看许可证

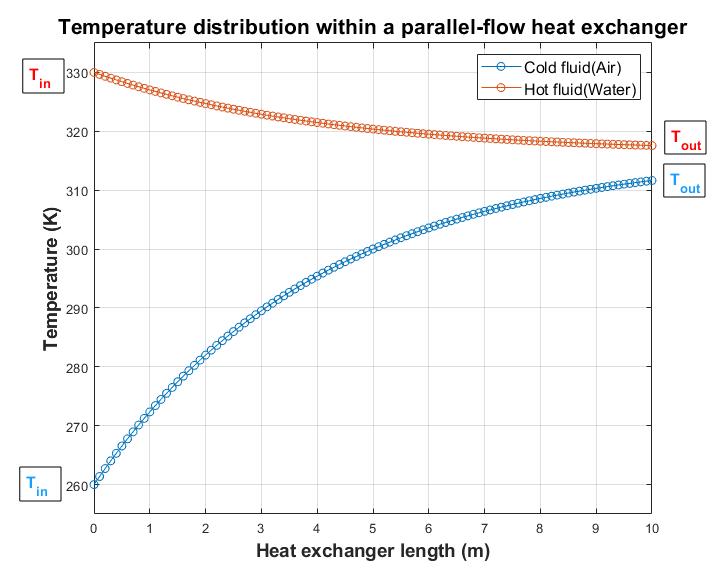

E-NTU method used to solve the heat exchanger problem for various heat exchanger types (Eg. parallel flow, counterflow, N-shells, etc.). The function plots the actual 1D temperature profile of the heat exchanger and not the linear profile.
Inputs: Temperature, mass flow rate, and specific heats of both the fluids. The heat exchanger area and total heat transfer coefficient are also constants. It won't be too difficult to model the heat transfer coefficient based on the material and wall thickness though.
Outputs: Temperature of both fluids at the outlet, Heat exchanged, and the non-linear temperature profile.

引用格式

Rohan Kokate (2024). Heat Exchanger using E-NTU method (https://www.mathworks.com/matlabcentral/fileexchange/83863-heat-exchanger-using-e-ntu-method), MATLAB Central File Exchange. 检索来源 .

MATLAB 版本兼容性
创建方式 R2020b
兼容任何版本
平台兼容性
Windows macOS Linux
