edges
三角剖分边缘
说明
示例
查找二维三角剖分的边
加载二维三角剖分数据并创建三角剖分表示。
P = [2.5 8.0; 6.5 8.0; 2.5 5.0; 6.5 5.0; 1.0 6.5; 8.0 6.5]; T = [5 3 1; 3 2 1; 3 4 2; 4 6 2]; TR = triangulation(T,P);
在三角剖分中查找边的起始和终止顶点标识号。
E = edges(TR)
E = 9×2
1 2
1 3
1 5
2 3
2 4
2 6
3 4
3 5
4 6
定义三角剖分中第一个点的坐标。然后定义与第一个点共享边的三个顶点(第二个、第三个和第五个)的坐标。
startVert = TR.Points(1,:); endVert = TR.Points([2 3 5],:);

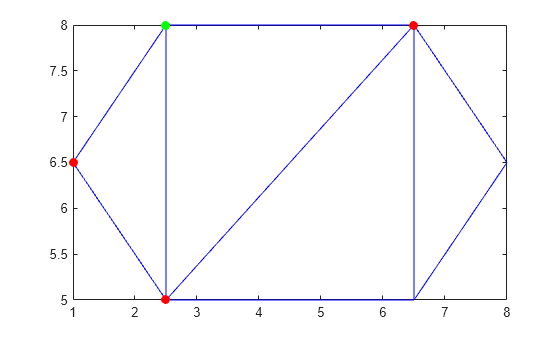

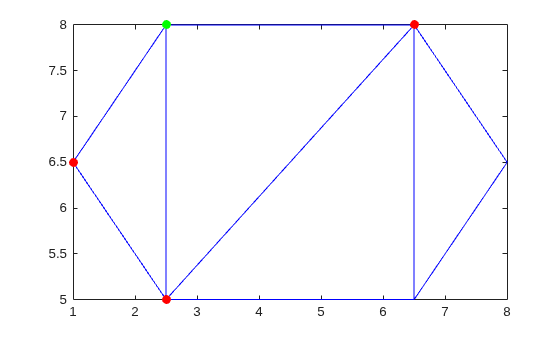

绘制该三角剖分。以绿色绘制第一个顶点,以红色绘制沿一条边的连接点。
triplot(TR) hold on plot(startVert(1,1),startVert(1,2),'g.','MarkerSize',20) plot(endVert(:,1),endVert(:,2),'r.','MarkerSize',20) hold off
输入参数
TR
— 三角剖分表示法
标量三角剖分对象
三角剖分表示法,指定为标量 triangulation
或 delaunayTriangulation
对象。
数据类型: triangulation
| delaunayTriangulation
扩展功能
基于线程的环境
使用 MATLAB® backgroundPool
在后台运行代码或使用 Parallel Computing Toolbox™ ThreadPool
加快代码运行速度。
此函数完全支持基于线程的环境。有关详细信息,请参阅在基于线程的环境中运行 MATLAB 函数。
版本历史记录
在 R2013a 中推出
