area

Create a rectangle with a length of 0.15 m, and a width of 0.15 m.

r  = antenna.Rectangle(Length=0.15,Width=0.15);

Create a second rectangle with a length of 0.05 m, and a width of 0.05 m. Set the center of the second rectangle at half the length of the first rectangle r.

n = antenna.Rectangle(Center=[0.075,0],Length=0.05,Width=0.05);

Create and view a notched rectangle by subtracting n from r.

rn  = r-n;
show(rn)

Calculate the area of the notched rectangle.

area(rn)

ans =
0.0212

This example shows how to calculate the area of a custom shape created using an rectangle and a circle.

Create a rectangular and a circular shape.

r = shape.Rectangle;
c = shape.Circle;

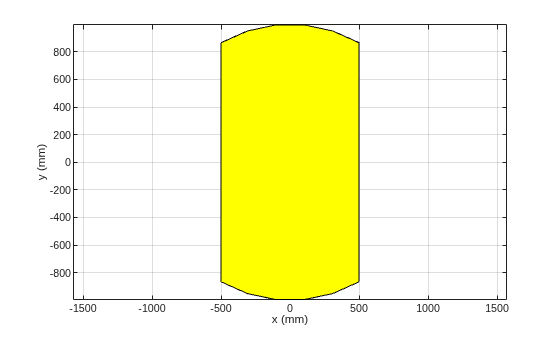

Intersect these two shapes to create a custom shape.

s = r & c;
show(s)

Calculate the area in sq.m of the resultant shape.

area(s)

ans =
1.9056
