rotateY

Rotate shape about y-axis by angle

collapse all in page

Syntax

rotateY(shape,angle)
c = rotateY(shape,angle)

Description

rotateY(shape,angle) rotates the shape about y-axis by an angle and plots the resultant shape.

example

c = rotateY(shape,angle) rotates the shape about y-axis by an angle and returns a shape object.

Examples

collapse all

Open Live Script

Create a rectangle shape.

r = antenna.Rectangle;
show(r)
axis equal

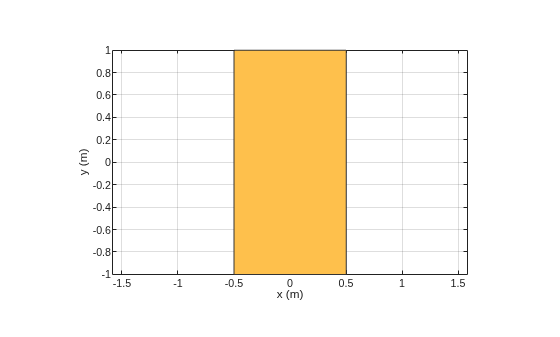

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, myrectangle.

Rotate the rectangle at 45 degrees about the Y-axis.

r1 = rotateY(r,45)
r1 =
  Rectangle with properties:

         Name: 'myrectangle'
       Center: [0 0]
       Length: 1
        Width: 2
    NumPoints: 2


show(r1)
axis equal

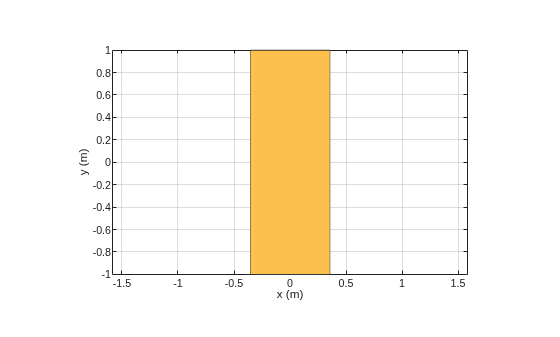

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, myrectangle.

Input Arguments

collapse all

Shape to rotate, specified as one of the following objects:

Example: antenna.Rectangle

Example: shape.Polygon

Example: shape.Box

Angle of rotation, specified as a scalar in degrees.

Example: 45

Data Types: double

Output Arguments

collapse all

Resultant shape obtained after the rotation operation on the input shape, returned as a shape object.

Example: antenna.Rectangle

Example: shape.Polygon

Example: shape.Box

Version History

Introduced in R2017a
