Plot electric or magnetic fields of antenna
the quiver object, using either of the previous syntaxes.
qobj = fieldsCustom(___)

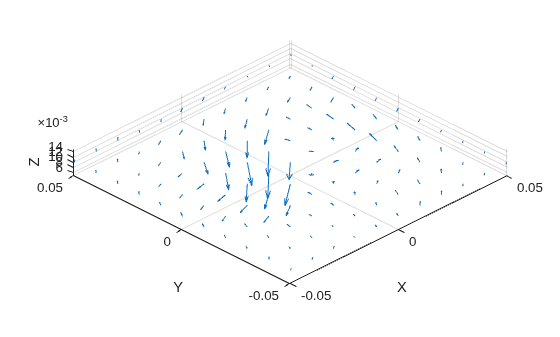

Visualize Magnetic Field of Antenna Using
Load and visualize the magnetic field data available in the file '
load fielddata fieldsCustom(H,p)

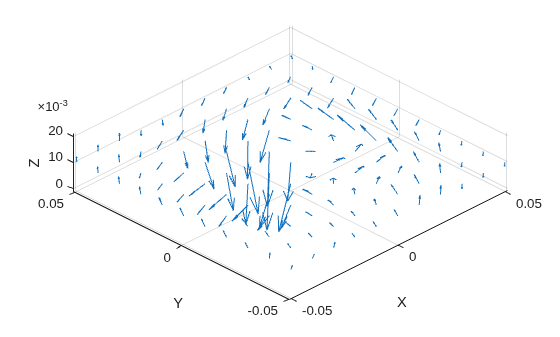

Scale the magnetic field arrows by a factor of 2.
fields — Electric or magnetic field vectors
3-by-p complex matrix
Electric or magnetic field vectors, specified as a 3-by-p complex matrix. p is the number of points in space.
z coordinates in space
3-by-p real matrix
x, y, z coordinates in space, specified as a 3-by-p real matrix. p is the number of points in space.
axeshandle — Axes object
Axes object, specified as an object.
scalefield — Value by which to scale field arrows
0.9 (default) | scalar
Value by which to scale the field arrows, specified as a scalar.
A value of
2 doubles the relative
length of the field arrows. A value of
the length of the field arrows. A value of
the field arrows without automatic scaling.
qobj — Electric or magnetic field plot
Electric or magnetic field plot, returned as quiver object.
Introduced in R2016a
