phaseShift

Calculate phase shift values for arrays or multi-feed PCB stack

collapse all in page

Syntax

ps = phaseShift(array,frequency,angle)
ps = phaseShift(pcb,frequency,angle)

Description

ps = phaseShift(array,frequency,angle) calculates the phase shift values of an array operating at a specified frequency to scan the beam at the given angle. The velocity of light is assumed to be that in free space.

example

ps = phaseShift(pcb,frequency,angle) calculates the phase shift values of a multi-feed PCB stack at a specified frequency and angle.

Examples

collapse all

Open Live Script

Create a 3-by-3 rectangular array of reflector-backed dipoles at an operating frequency of 1.8 GHz, and scan the main beam at 30 degrees along the azimuth and 45 degrees along the elevation.

a = design(rectangularArray(Size=[3 3]),1.8e9,reflector);
ps = phaseShift(a,1.8e9,[30 45])
ps = 9×1

  350.5337
   54.1733
  117.8129
  240.3066
  303.9462
    7.5858
  130.0796
  193.7192
  257.3588


a.PhaseShift = ps
a =
  rectangularArray with properties:

           Element: [1x1 reflector]
              Size: [3 3]
        RowSpacing: 0.0833
     ColumnSpacing: 0.0833
           Lattice: 'Rectangular'
    AmplitudeTaper: 1
        PhaseShift: [9x1 double]
              Tilt: 0
          TiltAxis: [1 0 0]

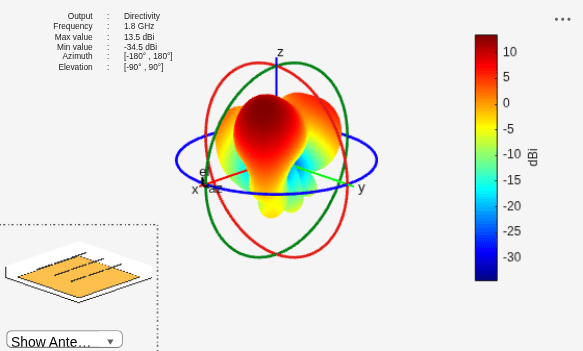

Calculate the radiation pattern of the array.

pattern(a,1.8e9)

Figure contains 2 axes objects and other objects of type uicontrol. Axes object 1 contains 29 objects of type patch, surface. Hidden axes object 2 contains 26 objects of type surface, line, text, patch.

Input Arguments

collapse all

Antenna array from the array catalog, specified as an array object.

Example: r = rectangularArray; phaseShift (r,70e6,[60 40]). Calculates the phase shift of the rectangular array.

Multi-feed PCB stack, specified as a pcbStack object.

Example: fco = invertedFcoplanar; pcb = pcbStack(fco); phaseShift (pcb,70e6,[60 40]) Calculates the phase shift of the coplanar inverted F antenna PCB.

Frequency value used to calculate the phase shift, specified as a scalar in Hz.

Example: 70e6

Data Types: double

Azimuth and elevation angle pair to scan the array toward, specified as a 2-element vector in degrees.

Example: [35 40]

Data Types: double

Output Arguments

collapse all

Phase shift values, returned as a 1-by-N vector in degrees. Phase shift value calculation does not consider mutual coupling.

Version History

Introduced in R2018b
