splMeter

Measure sound pressure level of audio signal

expand all in page

Description

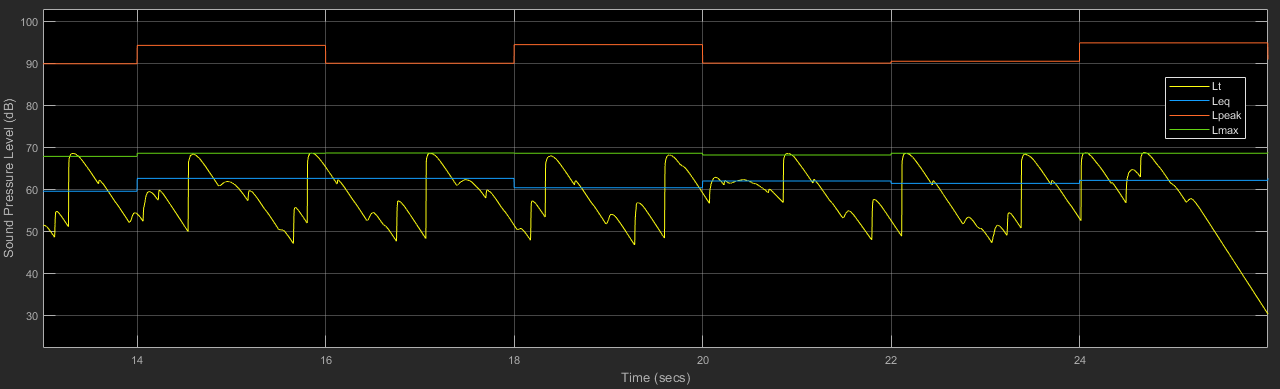

The splMeter System object™ computes sound pressure level measurements. The object returns measurements for:

frequency-weighted sound levels
fast or slow time-weighted sound levels
equivalent-continuous sound levels
peak sound levels
maximum sound levels

To implement SPL metering:

Create the splMeter object and set its properties.
Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

SPL = splMeter

SPL = splMeter(Name,Value)

Description

SPL = splMeter creates a System object, SPL, that performs SPL metering.

SPL = splMeter(Name,Value) sets each property Name to the specified Value. Unspecified properties have default values.

Example: SPL = splMeter('FrequencyWeighting','C-weighting','SampleRate',12000) creates a System object, SPL, that performs C-weighting and operates at 12 kHz.

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`Bandwidth` — Width of analysis bands
`'Full band'` (default) | `'1 octave'` | `'2/3 octave'` | `'1/3 octave'`

Width of analysis bands, specified as 'Full band', '1 octave', '2/3 octave', or '1/3 octave'. If Bandwidth is specified as 'Full band', the SPL meter returns one set of measurements for the whole frequency band. If Bandwidth is specified as '1 octave', '2/3 octave', or '1/3 octave', the SPL meter returns one set of measurements per octave or fractional-octave band.

Tunable: No

Data Types: char | string

`FrequencyRange` — Frequency range of filter bank (Hz)
`[22 22050]` (default) | two-element row vector of positive monotonically increasing values

Frequency range of the filter bank in Hz, specified as a two-element row vector of positive monotonically increasing values. Frequency bands centered above SampleRate/2 are excluded.

Tunable: No

Dependencies

To enable this property, set Bandwidth to '1 octave', '2/3 octave', or '1/3 octave'.

`OctaveFilterOrder` — Order of octave filter
`2` (default) | even integer

Order of the octave filter, specified as an even integer.

Tunable: No

Dependencies

To enable this property, set Bandwidth to '1 octave', '2/3 octave', or '1/3 octave'.

Data Types: single | double

`FrequencyWeighting` — Frequency weighting applied to input
`'A-weighting'` (default) | `'C-weighting'` | `'Z-weighting'` (no weighting)

Frequency weighting applied to input, specified as 'A-weighting', 'C-weighting', or 'Z-weighting', where Z-weighting corresponds to no weighting. The frequency weighting is designed and implemented using the weightingFilter System object.

Tunable: No

Data Types: char | string

`TimeWeighting` — Time weighting (s)
`'Fast'` (default) | `'Slow'`

Time weighting, in seconds, for calculation of time-weighted sound level and maximum time-weighted sound level, specified as 'Fast' or 'Slow'. The TimeWeighting property is used to specify the coefficient of a lowpass filter.

'Fast' – 1/8
'Slow' – 1

Tunable: Yes

Data Types: char | string

`PressureReference` — Reference pressure for dB calculations (Pa)
`2e-5` (default) | positive scalar

Reference pressure for dB calculations in Pa, specified as a positive scalar.

Tunable: Yes

Data Types: single | double

`TimeInterval` — Time interval for reporting level measurements (s)
`1` (default) | positive scalar

Time interval, in seconds, to report equivalent-continuous, peak, and maximum time-weighted sound levels, specified as a positive scalar.

Tunable: No

Data Types: single | double

`CalibrationFactor` — Calibration factor multiplied by input
1 (default) | positive finite scalar or vector

Scalar (mono input) or vector (multichannel input) calibration factor multiplied by input.

To set the calibration factor using a reference tone, use calibrate.

Tunable: No

Data Types: single | double

`SampleRate` — Input sample rate (Hz)
`44100` (default) | positive scalar

Input sample rate in Hz, specified as a positive scalar.

Tunable: No

Data Types: single | double

Usage

Syntax

[Lt,Leq,Lpeak,Lmax]
= SPL(audioIn)

Description

example

[Lt,Leq,Lpeak,Lmax] = SPL(audioIn) returns measurement values for the time-weighted (Lt) sound level of the current input frame, audioIn. The object also returns the equivalent-continuous (Leq), peak (Lpeak), and maximum time-weighted (Lmax) sound levels of the input to your SPL meter.

Input Arguments

expand all

`audioIn` — Audio input to SPL meter
column vector | matrix

Audio input to the SPL meter, specified as a column vector or matrix. The columns of the matrix are treated as independent audio channels.

Data Types: single | double

Output Arguments

expand all

`Lt` — Time-weighted sound level (dB)
column vector | matrix | 3-D array

Time-weighted sound level in dB, returned as a column vector, matrix, or 3-D array the same type as audioIn.

Size and interpretation of the outputs depend on what the Bandwidth property is set to:

'Full band' (default) –– Lt, Leq, Lpeak, and Lmax are returned as column vectors or matrices the same size as audioIn.
'1 octave', '2/3 octave', or '1/3 octave' –– Lt, Leq, Lpeak, and Lmax are returned as L-by-B-by-C arrays.
- L –– Number of rows in audioIn
- B –– Number of octave bands
- C –– Number of columns in audioIn

Data Types: single | double

`Leq` — Equivalent-continuous sound level (dB)
column vector | matrix | 3-D array

Equivalent-continuous sound level in dB, returned as a column vector, matrix, or 3-D array the same type as audioIn.

Size and interpretation of the outputs depend on what the Bandwidth property is set to:

'Full band' (default) –– Lt, Leq, Lpeak, and Lmax are returned as column vectors or matrices the same size as audioIn.
'1 octave', '2/3 octave', or '1/3 octave' –– Lt, Leq, Lpeak, and Lmax are returned as L-by-B-by-C arrays.
- L –– Number of rows in audioIn
- B –– Number of octave bands
- C –– Number of columns in audioIn

Data Types: single | double

`Lpeak` — Peak sound level (dB)
column vector | matrix | 3-D array

Peak sound level in dB, returned as a column vector, matrix, or 3-D array the same type as audioIn.

Size and interpretation of the outputs depend on what the Bandwidth property is set to:

'Full band' (default) –– Lt, Leq, Lpeak, and Lmax are returned as column vectors or matrices the same size as audioIn.
'1 octave', '2/3 octave', or '1/3 octave' –– Lt, Leq, Lpeak, and Lmax are returned as L-by-B-by-C arrays.
- L –– Number of rows in audioIn
- B –– Number of octave bands
- C –– Number of columns in audioIn

Data Types: single | double

`Lmax` — Maximum time-weighted sound level (dB)
column vector | matrix | 3-D array

Maximum time-weighted sound level in dB, returned as a column vector, matrix, or 3-D array the same type as audioIn.

Size and interpretation of the outputs depend on what the Bandwidth property is set to:

'Full band' (default) –– Lt, Leq, Lpeak, and Lmax are returned as column vectors or matrices the same size as audioIn.
'1 octave', '2/3 octave', or '1/3 octave' –– Lt, Leq, Lpeak, and Lmax are returned as L-by-B-by-C arrays.
- L –– Number of rows in audioIn
- B –– Number of octave bands
- C –– Number of columns in audioIn

Data Types: single | double

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

Specific to splMeter

`calibrate`	Calibrate meter using calibration tone with known level
`getCenterFrequencies`	Center frequencies of filters

Common to All System Objects

`step`	Run System object algorithm
`release`	Release resources and allow changes to System object property values and input characteristics
`reset`	Reset internal states of System object

Examples

collapse all

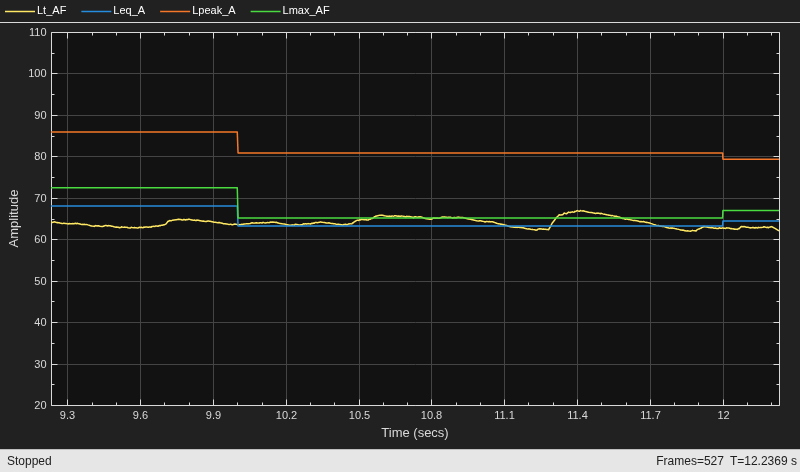

Measure SPL of Audio Signal

Open Script

Use the splMeter System object™ to measure the A-weighted sound pressure level of a streaming audio signal. Specify a two second time-interval for reporting and a fast time-weighting. Visualize the SPL measurements using the timescope object.

Create a dsp.AudioFileReader object to read in an audio file frame by frame. Create an audioDeviceWriter object to listen to the audio signal. Create a timescope object to visualize SPL measurements. Create an splMeter to measure the sound pressure level of the audio file. Use the default calibration factor of 1.

source = dsp.AudioFileReader("Ambiance-16-44p1-mono-12secs.wav");
fs = source.SampleRate;

player = audioDeviceWriter(SampleRate=fs);

scope  = timescope(SampleRate=fs, ...
    TimeSpanSource="property",TimeSpan=3, ...
    YLimits=[20 110], ...
    ShowLegend=true,BufferLength=4*3*fs, ...
    ChannelNames=["Lt_AF","Leq_A","Lpeak_A","Lmax_AF"], ...
    Name="Sound Pressure Level Meter");

SPL = splMeter(TimeWeighting="Fast", ...
    FrequencyWeighting="A-weighting", ...
    SampleRate=fs, ...
    TimeInterval=2);

In an audio stream loop:

Read in the audio signal frame.
Play the audio signal to your output device.
Call the SPL meter to return the time-weighted, equivalent-continuous, peak, and maximum time-weighted sound levels in dB.
Display the sound levels using the scope.

As a best practice, release your objects once complete.

while ~isDone(source)
    x = source();
    player(x);
    [Lt,Leq,Lpeak,Lmax] = SPL(x);
    scope([Lt,Leq,Lpeak,Lmax])
end

release(source)
release(player)
release(SPL)
release(scope)

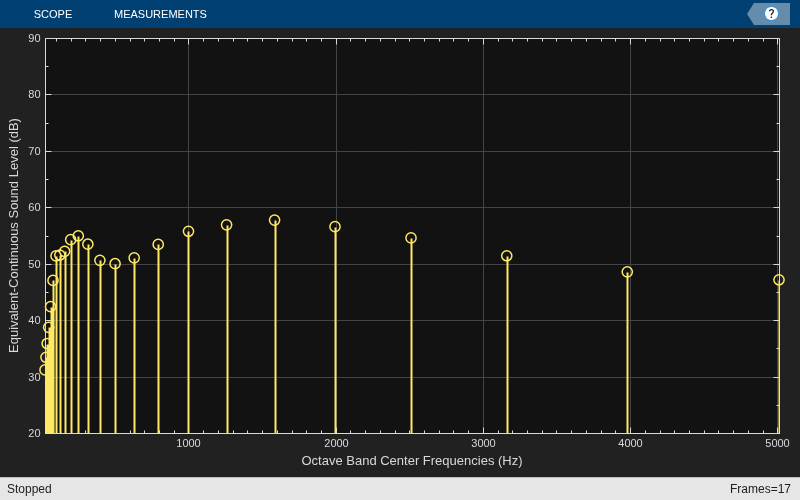

Octave SPL Metering

Open Script

The splMeter enables you to monitor sound pressure level for octave and fractional-octave bands. In this example, you monitor the equivalent-continuous sound pressure level of 1/3-octave bands.

Create a dsp.AudioFileReader object to read in an audio file frame by frame. Create an audioDeviceWriter object so you can listen to the audio signal. Create an splMeter to measure the octave sound pressure level of the audio file. Use the default calibration factor of 1. Create a dsp.ArrayPlot object to visualize the equivalent-continuous SPL for each octave band.

source = dsp.AudioFileReader('JetAirplane-16-11p025-mono-16secs.wav');
fs = source.SampleRate;

player = audioDeviceWriter('SampleRate',fs);

SPL = splMeter( ...
    'Bandwidth','1/3 octave', ...
    'SampleRate',fs);
centerFrequencies = getCenterFrequencies(SPL);

scope  = dsp.ArrayPlot(...
    'XDataMode','Custom', ...
    'CustomXData',centerFrequencies, ...
    'XLabel','Octave Band Center Frequencies (Hz)', ...
    'YLabel','Equivalent-Continuous Sound Level (dB)', ...
    'YLimits',[20 90], ...
    'ShowGrid',true, ...
    'Name','Sound Pressure Level Meter');

In an audio stream loop:

Read in the audio signal frame.
Play the audio signal to your output device.
Call the SPL meter to return the equivalent-continuous sound pressure level in dB.
Display the sound levels using the scope. Update the scope only when the equivalent-continuous sound pressure level has changed.

As a best practice, release your objects once complete.

LeqPrevious = zeros(size(centerFrequencies));
while ~isDone(source)
    x = source();
    player(x);
    [~,Leq] = SPL(x);

    for i = 1:size(Leq,1)
        if LeqPrevious ~= Leq(i,:)
            scope(Leq(i,:)')
            LeqPrevious = Leq(i,:);
        end
    end

end

release(source)
release(player)
release(SPL)
release(scope)

Algorithms

expand all

Sound pressure level calculations follow the algorithms described in [1]. You can specify property values to conform to standards [2] and [3].

Calibration

To account for environmental and input device effects in SPL measurements, the audio input is multiplied by a calibration factor:

$x = audioIn \times CalibrationFactor$

The CalibrationFactor property can be set directly, or by using the calibrate function, which compares a known level with acquired data. The known level is determined using a physical calibrator.

Frequency Weighting

A-, C-, or Z-frequency weighting is applied. The frequency weighting is implemented using the weightingFilter System object.

Analysis Bands

If you specify the Bandwidth property as '1 octave', '2/3 octave' or '1/3 octave', then the SPL calculations are applied to each octave or fractional-octave band. These analysis bands are determined after frequency weighting.

Time-Weighted Sound Level

Time-weighted sound level is defined as the ratio of the time-weighted root mean squared sound pressure to the reference sound pressure, converted to dB. That is,

$\begin{array}{l} L t = 10 \log_{10} {\frac{(\frac{1}{τ}) \int_{t_{s}}^{t} y {(ξ)}^{2} e^{- (t - ξ) / τ} d ξ}{p_{o}^{2}}} \\ = 10 \log_{10} {\frac{h (y^{2})}{p_{o}^{2}}} \end{array}$

h(y²) can be interpreted as the convolution of y² with a filter with impulse response $(\frac{1}{τ}) e^{- \frac{t}{τ}}$ . y is the output of the frequency-weighting filter. The impulse response corresponds to a lowpass filter of the form $H (s) = \frac{\frac{1}{τ}}{s + \frac{1}{τ}}$ . Using impulse invariance, the discrete filter can be interpreted as,

$H (z) = \frac{\frac{1}{(τ \times f s)}}{1 - e^{- \frac{1}{(τ \times f s)}} z^{- 1}} .$

τ is specified by the time-weighting coefficient as 0.125 (if TimeWeighting is set to 'Fast') or 1 (if TimeWeighting is set to'Slow').
fs is the sample rate specified by the SampleRate property.

Equivalent-Continuous Sound Level

Equivalent-continuous sound level is also called time-average sound level. It is defined as the ratio of root mean squared sound pressure to the reference sound pressure, converted to dB. That is,

$\begin{array}{l} L e q = 10 \log_{10} {\frac{(\frac{1}{T}) \int_{t_{1}}^{t_{2}} y^{2} d t}{p_{o}^{2}}} \\ = 20 \log_{10} (rms (y) / p_{o}) \end{array}$

where

y is the output of the frequency-weighting filter.
p_o is the reference sound pressure, specified by the PressureReference property.

Peak Sound Level

Peak sound level is defined as the ratio of peak sound pressure to the reference sound pressure, converted to dB. That is,

$L p e a k = 20 \log_{10} (\max (| y |) / p_{o})$

where

y is the output of the frequency-weighting filter.
p_o is the reference sound pressure, specified by the PressureReference property.

Max Time-Weighted Sound Level

Maximum time-weighted sound level is defined as the greatest time-weighted sound level within a stated time interval.

References

[1] Harris, Cyril M. Handbook of Acoustical Measurements and Noise Control. 3rd ed. American Institute of Physics, 1998.

[2] International Electrotechnical Commission. Electroacoustics - Sound level meters - Part 1: Specifications. IEC 61672-1:2013.

[3] American National Standards Institute. ANSI S1.4: Specification for Sound Level Meters. 1983.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

System Objects in MATLAB Code Generation (MATLAB Coder)

Version History

Introduced in R2018a

splMeter

Description

Creation

Syntax

Description

Properties

Bandwidth — Width of analysis bands 'Full band' (default) | '1 octave' | '2/3 octave' | '1/3 octave'

FrequencyRange — Frequency range of filter bank (Hz) [22 22050] (default) | two-element row vector of positive monotonically increasing values

Dependencies

OctaveFilterOrder — Order of octave filter 2 (default) | even integer

Dependencies

FrequencyWeighting — Frequency weighting applied to input 'A-weighting' (default) | 'C-weighting' | 'Z-weighting' (no weighting)

TimeWeighting — Time weighting (s) 'Fast' (default) | 'Slow'

PressureReference — Reference pressure for dB calculations (Pa) 2e-5 (default) | positive scalar

TimeInterval — Time interval for reporting level measurements (s) 1 (default) | positive scalar

CalibrationFactor — Calibration factor multiplied by input 1 (default) | positive finite scalar or vector

SampleRate — Input sample rate (Hz) 44100 (default) | positive scalar

Usage

Syntax

Description

Input Arguments

audioIn — Audio input to SPL meter column vector | matrix

Output Arguments

Lt — Time-weighted sound level (dB) column vector | matrix | 3-D array

Leq — Equivalent-continuous sound level (dB) column vector | matrix | 3-D array

Lpeak — Peak sound level (dB) column vector | matrix | 3-D array

Lmax — Maximum time-weighted sound level (dB) column vector | matrix | 3-D array

Object Functions

Specific to splMeter

Common to All System Objects

Examples

Measure SPL of Audio Signal

Octave SPL Metering

Algorithms

Calibration

Frequency Weighting

Analysis Bands

Time-Weighted Sound Level

Equivalent-Continuous Sound Level

Peak Sound Level

Max Time-Weighted Sound Level

References

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using MATLAB® Coder™.

Version History

See Also

Topics

WeChat

`Bandwidth` — Width of analysis bands
`'Full band'` (default) | `'1 octave'` | `'2/3 octave'` | `'1/3 octave'`

`FrequencyRange` — Frequency range of filter bank (Hz)
`[22 22050]` (default) | two-element row vector of positive monotonically increasing values

`OctaveFilterOrder` — Order of octave filter
`2` (default) | even integer

`FrequencyWeighting` — Frequency weighting applied to input
`'A-weighting'` (default) | `'C-weighting'` | `'Z-weighting'` (no weighting)

`TimeWeighting` — Time weighting (s)
`'Fast'` (default) | `'Slow'`

`PressureReference` — Reference pressure for dB calculations (Pa)
`2e-5` (default) | positive scalar

`TimeInterval` — Time interval for reporting level measurements (s)
`1` (default) | positive scalar

`CalibrationFactor` — Calibration factor multiplied by input
1 (default) | positive finite scalar or vector

`SampleRate` — Input sample rate (Hz)
`44100` (default) | positive scalar

`audioIn` — Audio input to SPL meter
column vector | matrix

`Lt` — Time-weighted sound level (dB)
column vector | matrix | 3-D array

`Leq` — Equivalent-continuous sound level (dB)
column vector | matrix | 3-D array

`Lpeak` — Peak sound level (dB)
column vector | matrix | 3-D array

`Lmax` — Maximum time-weighted sound level (dB)
column vector | matrix | 3-D array

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
