Generate C++ Code for MATLAB Class That Performs Acoustic Echo Cancellation (AEC)

Examine MATLAB Class That Performs Acoustic Echo Cancellation

This example performs echo cancellation on a system that has a constant sample rate fs of 8000 Hz. The input consists of two data streams: the near-end speech signal and the far-end speech signal (without echo).

The process method of the AcousticEchoCanceler class (displayed below) processes these two input data streams, one frame at a time. This method:

type AcousticEchoCanceler.m

classdef AcousticEchoCanceler < handle
    properties (Constant)
        fs = 8000
    end

    properties (Access = private)
        roomEchoAdder
        echoCanceler
        roomEchoAdderInitial
        echoCancelerInitial
    end

    methods
        function obj = AcousticEchoCanceler
            ir = acousticRoomResponse([5 7 3],[2 2 2],[3 5 2],"SampleRate",obj.fs,"ImageSourceOrder",15,"MaxNumRayReflections",24);
            obj.roomEchoAdderInitial = dsp.FIRFilter('Numerator', ir/norm(ir)*4);
            obj.echoCancelerInitial = dsp.FrequencyDomainAdaptiveFilter('Length', 2048, ...
                'StepSize', 0.025, ...
                'InitialPower', 0.01, ...
                'AveragingFactor', 0.98, ...
                'Method', 'Unconstrained FDAF');
            obj.roomEchoAdder = obj.roomEchoAdderInitial;
            obj.echoCanceler = obj.echoCancelerInitial;
        end

        function [microphoneFrame,echoCanceledFrame] = process(obj,nearSpeechFrame,farSpeechFrame)
            frameSize = numel(nearSpeechFrame);
            farSpeechEcho = obj.roomEchoAdder(farSpeechFrame);
            rng("default");
            microphoneFrame = farSpeechEcho + nearSpeechFrame + 0.001*randn(frameSize,1);
            [~,echoCanceledFrame] = obj.echoCanceler(farSpeechFrame, microphoneFrame);
        end

        function reset(obj)
            obj.roomEchoAdder = obj.roomEchoAdderInitial;
            obj.echoCanceler = obj.echoCancelerInitial;
        end
    end
end

As you process the input data streams one frame at a time, the current states of the two filters roomEchoAdder and echoCanceler are encapsulated as private properties in the AcousticEchoCanceler class instance. The class also has a constructor that initializes these filters and a reset method that resets the filters to their initial states.

Test MATLAB Code Using Example Signals

In this example, the entirety of the input data streams are provided as two column vectors of double values. Examine the MATLAB entry-point function cancelEcho that:

type cancelEcho.m

function [microphoneSignal,echoCanceledSignal] = cancelEcho(frameSize,nearSpeechSignal,farSpeechSignal)
rng("default");
obj = AcousticEchoCanceler;

N = numel(nearSpeechSignal);
M = frameSize - mod(N,frameSize);
numberOfFrames = (N + M)/frameSize;

nearSpeechSignalPadded = vertcat(nearSpeechSignal,zeros(M,1));
farSpeechSignalPadded = vertcat(farSpeechSignal,zeros(M,1));
microphoneSignal = zeros(N+M,1);
echoCanceledSignal = zeros(N+M,1);

for idx = 1:numberOfFrames
    startIndex = (idx-1)*frameSize+1;
    endIndex = idx*frameSize;
    frameVector = startIndex:endIndex;

    nearSpeechFrame = nearSpeechSignalPadded(frameVector);
    farSpeechFrame = farSpeechSignalPadded(frameVector);

    [microphoneFrame,echoCanceledFrame] = obj.process(nearSpeechFrame,farSpeechFrame);

    microphoneSignal(frameVector) = microphoneFrame;
    echoCanceledSignal(frameVector) = echoCanceledFrame;
end
end

To test this function, load the column vectors v and x from the two supporting MAT files nearspeech.mat and farspeech.mat respectively.

load nearspeech
load farspeech

Select a frame size of 2048. Call the cancelEcho function to generate the microphone and echo-canceled signals.

frameSize = 2048;
[microphoneSignal,echoCanceledSignal] = cancelEcho(frameSize,v,x);

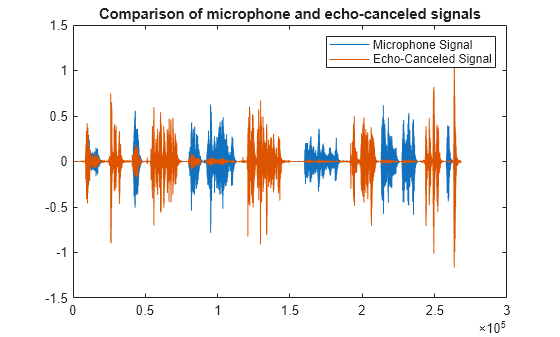

To observe the echo cancellation, plot the microphone and the echo-canceled signals.

plot(microphoneSignal)
hold on
plot(echoCanceledSignal)
hold off
title("Comparison of microphone and echo-canceled signals")
legend("Microphone Signal","Echo-Canceled Signal")

To play the generated speech signals, create an audiostreamer object.

as = audiostreamer(SampleRate=fs);

To play the microphone signal, uncomment this line.

% play(as,microphoneSignal)

To play the echo-canceled signal, uncomment this line. Observe that the echo reduces significantly after the initial few seconds as the adaptive filtering algorithm converges.

% play(as,echoCanceledSignal)

Prepare MATLAB Code for Code Generation

Add the %#codegen directive at the top of the AcousticEchoCanceler.m and cancelEcho.m files. This directive instructs the Code Analyzer to highlight MATLAB coding patterns that are not supported for C/C++ code generation.

classdef AcousticEchoCanceler < handle %#codegen

function [microphoneSignal,echoCanceledSignal] = cancelEcho(frameSize,nearSpeechSignal,farSpeechSignal) %#codegen

In this example, the Code Analyzer does not highlight any issues in these files.

Next, to identify functions and objects in your code that are not supported for code generation, call this function in the Command Window:

coder.screener("cancelEcho.m")

The Code Generation Readiness report opens. The report shows that the acousticRoomResponse function, that is used to initialize the roomEchoAdder property, is not supported for code generation.

To fix this issue, you must update the AcousticEchoCanceler.m file. Use the coder.extrinsic (MATLAB Coder) and coder.const (MATLAB Coder) directives to constant-fold the acousticRoomResponse function call at code generation time. The constant folding is justified because you do not need to generate a new room response every time you simulate the microphone signal for your inputs. You just want to generate a fixed room response for all your simulations.

coder.extrinsic("acousticRoomResponse");
ir = coder.const(@acousticRoomResponse,[5 7 3],[2 2 2],[3 5 2],"SampleRate",obj.fs,"ImageSourceOrder",15,"MaxNumRayReflections",24);

The updated class file AcousticEchoCancelerModified.m is attached with this example. The class in this file is named AcousticEchoCancelerModified to match the file name. The attached file canceledEchoModified.m contains the updated entry-point function that instantiates this renamed class.

Run the coder.screener command on the updated file cancelEchoModified.m:

coder.screener("cancelEchoModified.m")

The code generation readiness report shows no issues.

Generate and Run C++ MEX Function

Before generating standalone code, it is a best practice to generate and run a MEX function for the MATLAB entry-point function. This step enables you to detect code generation errors and run-time errors early in the development process.

Use the codegen (MATLAB Coder) command to generate a C++ MEX function for the entry-point function cancelEchoModified. Specify the frame size input to be a double scalar and the vector inputs to be unbounded column vectors of the double type. To make sure that the constant-folded function call in generated code produces the same result as MATLAB execution, reset the random number generator before calling the codegen command.

t = coder.typeof(0,[Inf 1]);
rng("default");
codegen -lang:c++ cancelEchoModified -args {0,t,t} -report

Code generation successful: View report

Run the generated MEX function cancelEchoModified_mex. You get a run-time error.

% [microphoneSignal_mex,echoCanceledSignal_mex] = cancelEchoModified_mex(frameSize,v,x);   % ERRORS OUT

The orientations of the vectors supplied at run time are incompatible with the variable-size inputs that were specified at code generation time. To perform this indexing operation, either force the run-time
input vectors to have the same orientation or regenerate the code specifying fixed-sized inputs.

To investigate the cause of this error, examine the code generation report.

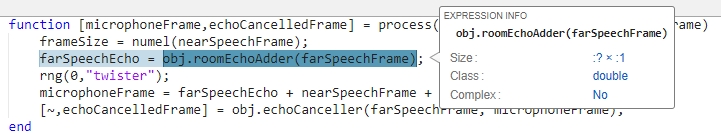

In the process method, the code generator determines the type of the expression obj.roomEchoAdder(farSpeechFrame) as a :Inf x :1 matrix whose both dimensions are variable-size. To force the type of this expression to be a column vector with dimensions :Inf x 1, convert farSpeechEcho to a column vector explicitly:

farSpeechEcho = farSpeechEcho(:);

The updated class file AcousticEchoCancelerCodegenCompatible.m is attached with this example. The class in this file is named AcousticEchoCancelerCodegenCompatible to match the file name. The attached file cancelEchoCodegenCompatible.m contains the updated entry-point function that instantiates this renamed class.

Generate code again for the updated MATLAB code.

rng("default");
codegen -lang:c++ cancelEchoCodegenCompatible -args {0,t,t} -report

Code generation successful: View report

Run the generated MEX function cancelEchoModified_mex.

[microphoneSignal_mex,echoCanceledSignal_mex] = cancelEchoCodegenCompatible_mex(frameSize,v,x);

Check that outputs of the generated MEX function and the MATLAB function agree within the default tolerance for double-precision values.

tf_microphoneSignal = all(ismembertol(microphoneSignal,microphoneSignal_mex));
tf_echoCanceledSignal = all(ismembertol(echoCanceledSignal,echoCanceledSignal_mex));

disp("The microphone signal outputs for MATLAB and MEX agree: " + tf_microphoneSignal)

The microphone signal outputs for MATLAB and MEX agree: true

disp("The echo-canceled signal outputs for MATLAB and MEX agree: " + tf_echoCanceledSignal)

The echo-canceled signal outputs for MATLAB and MEX agree: true

Generate C++ Static Library and Verify Execution Using SIL Interface

To generate a C++ static library and an associated software-in-the-loop (SIL) interface, create a coder.EmbeddedCodeConfig (MATLAB Coder) object. Specify the target language as C++ and the verification mode as SIL.

cfg = coder.config("lib");
cfg.VerificationMode = "SIL";
cfg.TargetLang = "C++";
rng("default");
codegen -config cfg cancelEchoCodegenCompatible -args {0,t,t} -report

Code generation successful: View report

Run the generated SIL MEX function cancelEcho1_sil.

[microphoneSignal_sil,echoCanceledSignal_sil] = cancelEchoCodegenCompatible_sil(frameSize,v,x);

### Starting SIL execution for 'cancelEchoCodegenCompatible'
    To terminate execution: clear cancelEchoCodegenCompatible_sil

Check that outputs of the generated SIL MEX function and the MATLAB function agree within the default tolerance for double-precision values.

tf_microphoneSignal = all(ismembertol(microphoneSignal,microphoneSignal_sil));
tf_echoCanceledSignal = all(ismembertol(echoCanceledSignal,echoCanceledSignal_sil));

disp("The microphone signal outputs for MATLAB and SIL MEX agree: " + tf_microphoneSignal)

The microphone signal outputs for MATLAB and SIL MEX agree: true

disp("The echo-canceled signal outputs for MATLAB and SIL MEX agree: " + tf_echoCanceledSignal)

The echo-canceled signal outputs for MATLAB and SIL MEX agree: true

Finally, clear the loaded SIL MEX function from memory.

clear cancelEcho_sil
