Configure Variants for AUTOSAR Elements

Open Live Script

AUTOSAR software components can use VariationPoint elements to enable or disable AUTOSAR elements, such as ports and runnables, based on defined conditions. In Simulink®, to configure variants that enable or disable AUTOSAR ports and runnables:

  • Use Variant Sink and Variant Source blocks to define variant condition logic and propagate variant conditions.

  • Use AUTOSAR.Parameter data objects with storage class SystemConstant to model AUTOSAR system constants. The system constants represent the condition values that enable or disable ports and runnables.

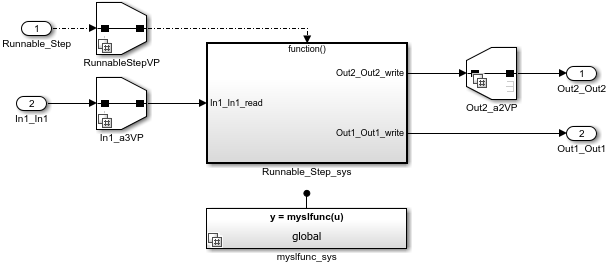

open_system('mAutosarInlineVariant.slx');


To model an AUTOSAR system constant, the model defines AUTOSAR.Parameter data object SysConA:

SysConA = AUTOSAR.Parameter;
SysConA.CoderInfo.StorageClass = 'Custom';
SysConA.CoderInfo.CustomStorageClass = 'SystemConstant';
SysConA.DataType = 'int32';
SysConA.Value = 1;

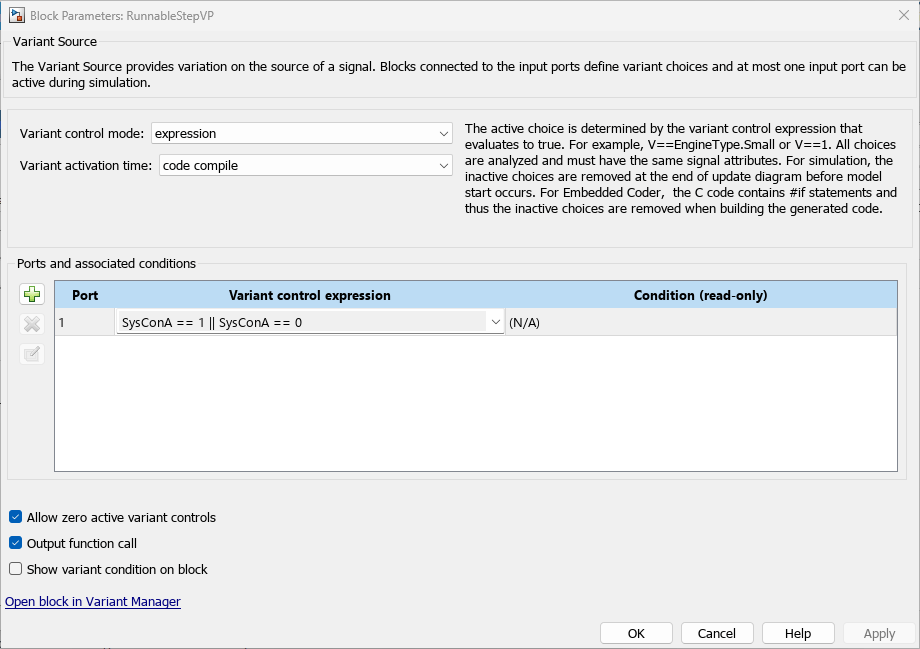

Each Variant Source or Variant Sink block defines variant condition logic, which is based on the system constant value. You can specify an expression or a Simulink.VariantExpression object containing an expression. Here is the variant condition logic for Variant Source block RunnableStepVP.

When you generate code for the model:

  • The exported ARXML code contains definitions for variation point proxies and variation points. In this example, the VARIATION-POINT-PROXY entry has a short-name c0, which is referenced in the generated C code. SysConA appears as a system constant representing the associated condition value.

<VARIATION-POINT-PROXYS>
    <VARIATION-POINT-PROXY UUID="...">
        <SHORT-NAME>c0</SHORT-NAME>
        <CATEGORY>CONDITION</CATEGORY>
        <CONDITION-ACCESS BINDING-TIME="PRE-COMPILE-TIME">
          <SYSC-REF DEST="SW-SYSTEMCONST">/mInlineVariant_pkg/mInlineVariant_dt/SystemConstants/SysConA</SYSC-REF>
          == 0 ||
          <SYSC-REF DEST="SW-SYSTEMCONST">/mInlineVariant_pkg/mInlineVariant_dt/SystemConstants/SysConA</SYSC-REF>
          == 1</CONDITION-ACCESS>
    </VARIATION-POINT-PROXY>
</VARIATION-POINT-PROXYS>

VARIATION-POINT entries appear for AUTOSAR ports, runnables, and runnable accesses to external data.

<R-PORT-PROTOTYPE UUID="...">
    <SHORT-NAME>In1</SHORT-NAME>
    <VARIATION-POINT>
        <SHORT-LABEL>In1_a3VP</SHORT-LABEL>
        <SW-SYSCOND BINDING-TIME="PRE-COMPILE-TIME">
          <SYSC-REF DEST="SW-SYSTEMCONST">/mInlineVariant_pkg/mInlineVariant_dt/SystemConstants/SysConA</SYSC-REF>
          == 0 ||
          <SYSC-REF DEST="SW-SYSTEMCONST">/mInlineVariant_pkg/mInlineVariant_dt/SystemConstants/SysConA</SYSC-REF>
          == 1</SW-SYSCOND>
    </VARIATION-POINT>
    ...
</R-PORT-PROTOTYPE>

  • In the RTE compatible C code, short-name c0 is encoded in the names of preprocessor symbols used in the variant condition logic. For example:

#if Rte_SysCon_c0
...
#endif

For more information, see Variant Systems.
