Demodulate baseband FM signal
System object™ demodulates a baseband FM signal.
To demodulate a baseband FM signal:
comm.FMDemodulatorobject and set its properties.
Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
an FM demodulator System object.
fmdemodulator = comm.FMDemodulator
sets properties using one or more name-value arguments. For example,
fmdemodulator = comm.FMDemodulator(
'Samplerate',400e3 specifies a sample rate of 400 kHz.
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
SampleRate — Sample rate
240e3 (default) | positive scalar
Sample rate of the input signal in Hz, specified as a positive scalar. This property
specifies the sample rate at the output of a modulator or at the input of a demodulator.
The sample rate must be greater than twice the frequency deviation (that is,
SampleRate > 2×
FrequencyDeviation — Peak deviation of output signal frequency
75e3 (default) | positive scalar
Peak deviation of the output signal frequency in Hz, specified a positive scalar.
The frequency deviation must be less than half the sample rate (that is,
The system bandwidth is BT =
BM), where BM is the message
bandwidth in Hz. For more information, see Algorithms.
insig — Baseband FM signal
scalar | column vector
Baseband FM signal, specified as a scalar or column vector.
Complex Number Support: Yes
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named
Play FM-Demodulated Audio File
Play back an audio file after applying FM modulation and demodulation by using System objects to process the data in streaming mode.
Load the audio file
guitartune.wav by using an audio file reader System object™.
audiofilereader = dsp.AudioFileReader('guitartune.wav', ... 'SamplesPerFrame',4410);
Create an audio device writer System object for audio playback.
audioplayer = audioDeviceWriter;
Create default FM modulator and demodulator System objects.
fmmod = comm.FMModulator; fmdemod = comm.FMDemodulator;
Read the audio data, FM-modulate the audio data, FM-demodulate the FM-modulated signal, and play back the demodulated signal (
while ~isDone(audiofilereader) x = audiofilereader(); y = fmmod(x); z = fmdemod(y); audioplayer(z); end
Modulate and Demodulate Sinusoidal Signal Using FM Method
Modulate and demodulate a sinusoidal signal. Plot the demodulated signal and compare it to the original signal.
Initialize parameters for the example.
fs = 100; % Sample rate (Hz) ts = 1/fs; % Sample period (s) fd = 25; % Frequency deviation (Hz)
Create a sinusoidal signal with a duration of 0.5 s and frequency of 4 Hz.
t = (0:ts:0.5-ts)'; x = sin(2*pi*4*t);
Create an FM modulator System object™, setting the sample rate and frequency deviation. Then, create an FM demodulator System object, using the FM modulator configuration to set the demodulator properties.
fmmodulator = comm.FMModulator( ... 'SampleRate',fs, ... 'FrequencyDeviation',fd); fmdemodulator = comm.FMDemodulator(fmmodulator);
FM-modulate the signal and plot the real component of the complex signal. The frequency of the modulated signal changes with the amplitude of the input signal.
y = fmmodulator(x); plot(t,[x real(y)]) title('Input Sinusoid and FM-Modulated Signals') xlabel('Time (seconds)'); ylabel('Amplitude') legend('Input signal','Modulated signal (real component)')
Demodulate the FM-modulated signal.
z = fmdemodulator(y);
Plot the original and demodulated signals. The demodulator output signal exactly aligns with the original signal.
plot(t,x,'r',t,z,'ks') legend('Original signal','Demodulated signal') xlabel('Time (s)') ylabel('Amplitude')
Create FM Demodulator from FM Modulator
Create an FM demodulator System object™ from an FM modulator System object. Modulate and demodulate audio data loaded from a file and compare the spectrum for the demodulated data and the input data.
Initialize parameters for the example.
fd = 50e3; % Frequency deviation (Hz) fs = 300e3; % Sample rate (Hz)
Create an FM modulator System object.
mod = comm.FMModulator( ... FrequencyDeviation=fd, ... SampleRate=fs);
Create an FM demodulator object by using the modulator to configure it.
demod = comm.FMDemodulator(mod);
Verify that the properties are identical in the two System objects.
mod = comm.FMModulator with properties: SampleRate: 300000 FrequencyDeviation: 50000
demod = comm.FMDemodulator with properties: SampleRate: 300000 FrequencyDeviation: 50000
Load audio data into the workspace.
S = load("handel.mat"); data = S.y; fsamp = S.Fs;
Create a spectrum analyzer System object.
sa = spectrumAnalyzer( ... SampleRate=fsamp, ... ShowLegend=true);
FM-modulate and -demodulate the audio data.
modData = mod(data); demodData = demod(modData);

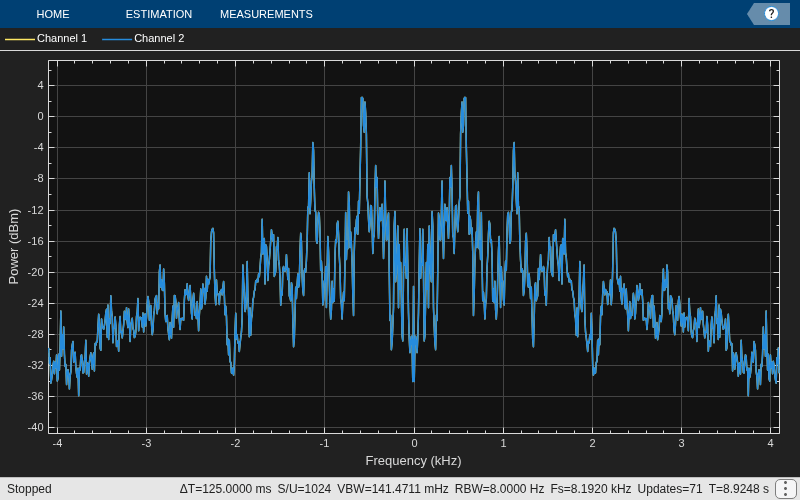

Verify that the spectrum plot of the input data (
Channel 1) aligns with that of the demodulated data (
sa([data demodData]) release(sa)
A frequency-modulated passband signal, Y(t), is given as
A is the carrier amplitude.
fc is the carrier frequency.
x(τ) is the baseband input signal.
fΔ is the frequency deviation in Hz.
The frequency deviation is the maximum shift from fc in one direction, assuming |x(τ)| ≤ 1.
A baseband FM signal can be derived from the passband representation by downconverting the passband signal by fc such that
Removing the component at -2fc from yS(t) leaves the baseband signal representation, y(t), which is given as
The expression for y(t) can be rewritten as , where . Expressing y(t) this way implies that the input signal is a scaled version of the derivative of the phase, ϕ(t).
To recover the input signal from y(t), use a baseband delay demodulator, as this figure shows.
 Hatai, I., and I. Chakrabarti. “A New High-Performance Digital FM Modulator and Demodulator for Software-Defined Radio and Its FPGA Implementation.” International Journal of Reconfigurable Computing (December 25, 2011): 1–10. https://doi.org/10.1155/2011/342532.
 Taub, H., and D. Schilling. Principles of Communication Systems. McGraw-Hill Series in Electrical Engineering. New York: McGraw-Hill, 1971, pp. 142–155.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
See System Objects in MATLAB Code Generation (MATLAB Coder).
Introduced in R2015a
