UWB

Generate and decode frames and waveforms of UWB

Examples here demonstrate ultra-wideband (UWB) communications links. The UWB standards (IEEE^® 802.15.4a/z and IEEE 802.15.4ab) specify enhanced UWB PHY and MAC layers, and associated ranging techniques.

Apps

Wireless Waveform Generator

Create, impair, visualize, and export modulated waveforms

Functions

lrwpanWaveformGenerator Generate low-rate wireless personal area waveform (Since R2023a)

Objects

`lrwpanHRPConfig`	Configure HRP transmission (Since R2023a)
`uwbChannel`	Filter input signal through UWB IEEE 802.15.4 a/z/ab channel (Since R2024a)

Featured Examples

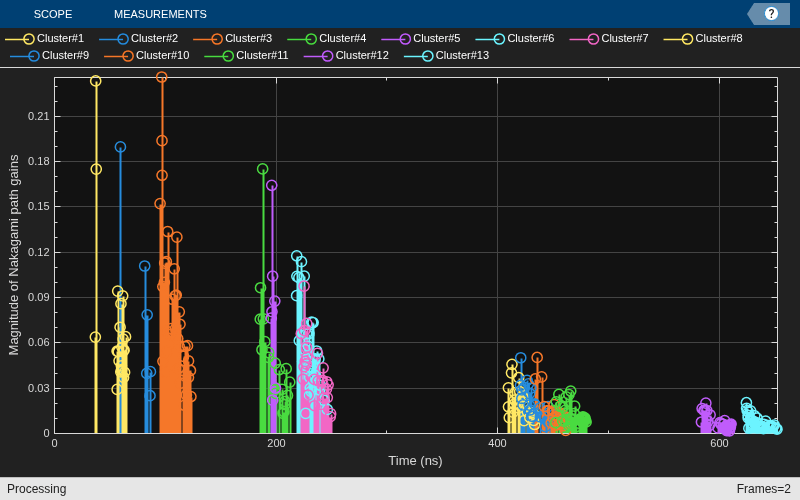

UWB Channel Models

Implement UWB channel models for a variety of propagation environments based on recommendations from the channel modeling subgroup of IEEE 802.15.4a.

Open Live Script

New

HRP UWB IEEE 802.15.4ab Waveform Generation

Generate high rate pulse repetition frequency (HRP) ultra wideband (UWB) waveforms of the IEEE 802.15.4ab standard.

Since R2024b
Open Live Script

HRP UWB IEEE 802.15.4a/z Waveform Generation

Generate standard-compliant high rate pulse repetition frequency (HRP) ultra wideband (UWB) waveforms of the IEEE 802.15.4a/z standard.

Open Script

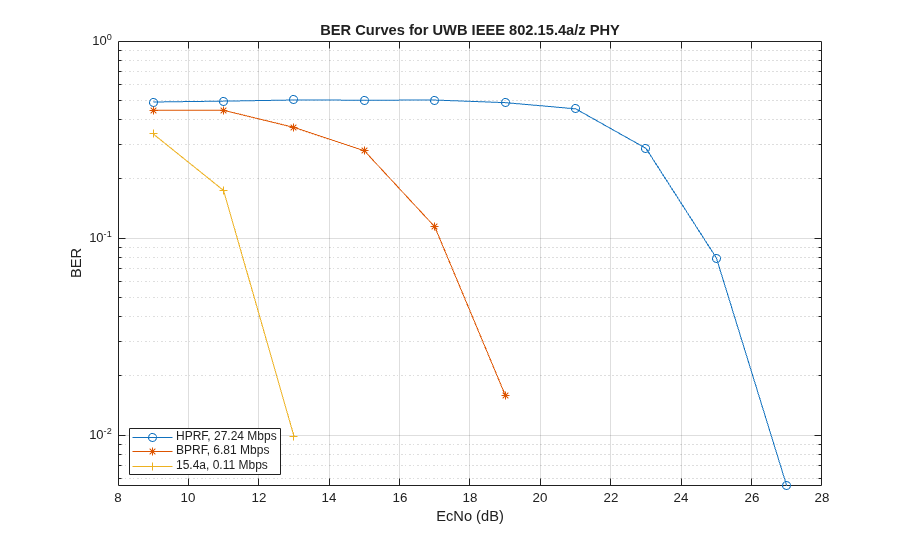

End-to-End Simulation of HRP UWB IEEE 802.15.4a/z PHY

Perform end-to-end simulation over an additive white Gaussian noise (AWGN) channel for the high rate pulse repetition frequency (HRP) ultra wideband (UWB) PHY of the IEEE 802.15.4a/z standard.

Open Script

UWB Localization Using IEEE 802.15.4z

Estimate the location of a single device as per the IEEE 802.15.4z™ standard.

Open Live Script

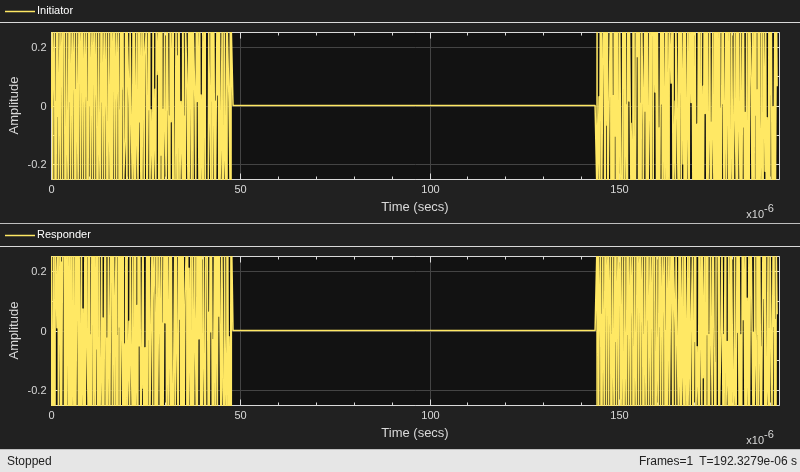

UWB Ranging Using IEEE 802.15.4z

Estimate distance between two devices as per the IEEE 802.15.4z™ standard.

Open Live Script

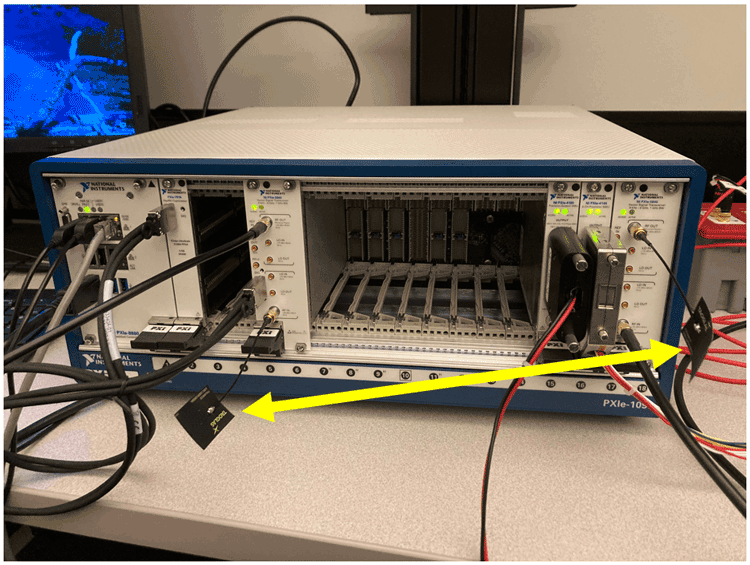

Recovery of IEEE 802.15.4z UWB Signals

Implement a practical IEEE 802.15.4z™ PHY receiver that recovers and decodes UWB waveforms captured over the air.

Open Live Script
