Optimize Machine Lifecycle and Reduce Downtime with Predictive Maintenance

Since R2020a

This example uses:

This example shows you how to predict the maintenance requirement of a machine and generate a maintenance alert.

Predictive maintenance enables you to estimate the time to failure of a machine. Being able to predict the time of failure helps you find the optimum time to schedule maintenance for your equipment. This example uses the mean and RMS voltage as condition indicators to predict the maintenance requirement of a rotor. You can obtain these values using an accelerometer sensor mounted on the rotor under test.

Train Model with SVM Classifier

Load the trainingData.mat data set, which includes the mean and RMS voltage of a rotor.

load('trainingData.mat');

Train a two-class support vector machine (SVM) classifier with the data set using the fitcsvm (Statistics and Machine Learning Toolbox) function.

X = trainingData(:,1:end-1);
y = trainingData(:,end);
SVMModel = fitcsvm(X, y);
classOrder = SVMModel.ClassNames

classOrder = 2×1

     0
     1

Analyze Maintenance Requirement

Plot a scatter diagram of the processed data and circle the support vectors.

plotScatterDiagram(SVMModel, X, y)

Figure contains an axes object. The axes object with xlabel X_1 (RMS blank Value), ylabel X_2 (Mean blank Value) contains 3 objects of type line. One or more of the lines displays its values using only markers These objects represent No maintainance(0), Maintainance Alert(1), Support Vector.

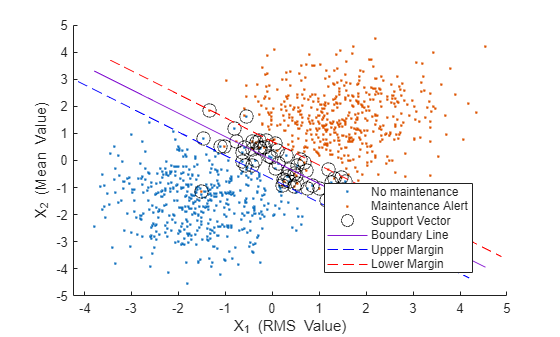

Plot decision boundary and margin lines for the processed data.

plotDBandML(SVMModel, X, y)

Figure contains an axes object. The axes object with xlabel X_1 (RMS blank Value), ylabel X_2 (Mean blank Value) contains 6 objects of type line. One or more of the lines displays its values using only markers These objects represent No maintainance, Maintainance Alert, Support Vector, Boundary Line, Upper Margin, Lower Margin.

Predict Maintenance Requirement and Generate Alert

Create a DataAcquisition object using the daq function. Add an analog input channel using the addinput function. Set the scan rate as 1000 scans per second using the Rate property of the DataAcquisition object.

dq = daq("ni");
addinput(dq, "Dev1", "ai0", "Voltage");
dq.Rate = 1000;

Use the classifyData function provided with this example to extract condition indicators, deploy the trained model, and generate a maintenance alert. This example executes the prediction algorithm every time the number acquired scans reaches 1000. You can modify these execution settings using the ScansAvailableFcn and ScansAvailableFcnCount properties of the DataAcquisition object.

dq.ScansAvailableFcn = @(src, event) classifyData(src, event, SVMModel);
dq.ScansAvailableFcnCount = 1000;

Acquire data for prediction by initiating background acquisition of data using the start function. You can acquire data for a finite span of time by setting the span argument in the function to the required time span. This example acquires data for a duration of 5 seconds.

start(dq, "Duration", seconds(5));
