Stateful Predict

Predict responses using a trained recurrent neural network

Since R2021a

expand all in page
  • Stateful Predict block

Libraries:
Deep Learning Toolbox / Deep Neural Networks

Description

The Stateful Predict block predicts responses for the data at the input by using the trained recurrent neural network specified through the block parameter. This block allows loading of a pretrained network into the Simulink® model from a MAT-file or from a MATLAB® function. This block updates the state of the network with every prediction.

To reset the state of recurrent neural network to its initial state, place the Stateful Predict block inside a Resettable Subsystem (Simulink) block and use the Reset control signal as trigger.

Examples

Predict and Update Network State in Simulink

Predict and Update Network State in Simulink

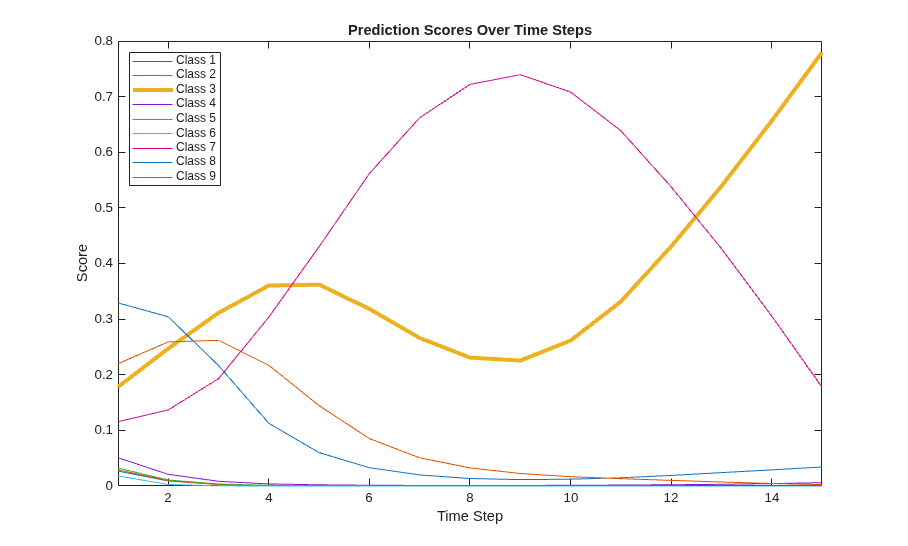

Predict responses for a trained recurrent neural network in Simulink® by using the Stateful Predict block. This example uses a pretrained long short-term memory (LSTM) network.

Limitations

  • CPU acceleration using the Intel® MKL-DNN library and GPU acceleration using the NVIDIA® CuDNN or TensorRT libraries are not supported for Stateful Predict blocks that use a dlnetwork object.

Ports

Input

expand all

The input ports of the Stateful Predict block takes the names of the input layers of the network loaded. Based on the network loaded, the input to the predict block can be sequence or time series data.

The dimensions of the numeric arrays containing the sequences depend on the type of data.

InputDescription
Vector sequencess-by-c matrices, where s is the sequence length, and c is the number of features of the sequences.
2-D image sequencesh-by-w-by-c-by-s arrays, where h, w, and c correspond to the height, width, and number of channels of the images, respectively, and s is the sequence length.

Output

expand all

The outputs port of the Stateful Predict block takes the names of the output layers of the network loaded. Based on the network loaded, the output of the Stateful Predict block can represent predicted scores or responses.

For sequence-to-label classification, the output is a K-by-N matrix, where K is the number of classes, and N is the number of observations.

For sequence-to-sequence classification problems, the output is a K-by-S matrix of scores, where K is the number of classes, and S is the total number of time steps in the corresponding input sequence.

Parameters

expand all

Specify the source for the trained recurrent neural network. The trained network must have at least one recurrent layer (for example, an LSTM network). Select one of the following:

  • Network from MAT-file— Import a trained recurrent neural network from a MAT-file containing a dlnetwork object.

  • Network from MATLAB function— Import a pretrained recurrent neural network from a MATLAB function.

Programmatic Use

Block Parameter: Network
Type: character vector, string
Values: 'Network from MAT-file' | 'Network from MATLAB function'
Default: 'Network from MAT-file'

This parameter specifies the name of the MAT-file that contains the trained recurrent neural network to load. If the file is not on the MATLAB path, use the Browse button to locate the file.

Dependencies

To enable this parameter, set the Network parameter to Network from MAT-file.

Programmatic Use

Block Parameter: NetworkFilePath
Type: character vector, string
Values: MAT-file path or name
Default: 'untitled.mat'

This parameter specifies the name of the MATLAB function for the pretrained recurrent neural network.

Dependencies

To enable this parameter, set the Network parameter to Network from MATLAB function.

Programmatic Use

Block Parameter: NetworkFunction
Type: character vector, string
Values: MATLAB function name
Default: 'untitled'

The Sample time parameter specifies when the block computes a new output value during simulation. For details, see Specify Sample Time (Simulink).

Specify the Sample time parameter as a scalar when you do not want the output to have a time offset. To add a time offset to the output, specify the Sample time parameter as a 1-by-2 vector where the first element is the sampling period and the second element is the offset.

By default, the Sample time parameter value is -1 to inherit the value.

Programmatic Use

Block Parameter: SampleTime
Type: character vector
Values: scalar | vector
Default: '-1'

This parameter specifies the input data format expected by the trained dlnetwork.

Data format, specified as a string scalar or a character vector. Each character in the string must be one of these dimension labels:

  • "S" — Spatial

  • "C" — Channel

  • "B" — Batch

  • "T" — Time

  • "U" — Unspecified

For example, for an array containing a batch of sequences where the first, second, and third dimension correspond to channels, observations, and time steps, respectively, you can specify that it has the format "CBT".

You can specify multiple dimensions labeled "S" or "U". You can use the labels "C", "B", and "T" once each, at most. The software ignores singleton trailing "U" dimensions after the second dimension.

For more information, see Deep Learning Data Formats.

By default, the parameter uses the data format that the network expects.

Dependencies

To enable this parameter, set the Network parameter to Network from MAT-file to import a trained dlnetwork object from a MAT-file.

Programmatic Use

Block Parameter: InputDataFormats
Type: character vector, string
Values: For a network with one or more inputs, use character vector in the form of: {'inputlayerName1', 'SSC'; 'inputlayerName2', 'SSCB'; ...}'. For a network with no input layer and multiple input ports, use character vector in the form of: '{'inputportName1/inport1, 'SSC'; 'inputportName2/inport2, 'SSCB'; ...}'.
Default: Data format that the network expects. For more information, see Deep Learning Data Formats.
