variationProperties

Store scenario property variations

Since R2023a

expand all in page

Description

The variationProperties object stores scenario property variations, such as actor, collision, scene, and Euro NCAP® test bench properties, to use to create scenario variants.

Creation

Syntax

variations = variationProperties

Description

variations = variationProperties creates an empty variationProperties object, variations.

example

Note

This object requires the Automated Driving Toolbox™ Test Suite for Euro NCAP® Protocols support package. You can install Automated Driving Toolbox Test Suite for Euro NCAP Protocols from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Properties

expand all

Actor variation properties, specified as a structure. The structure contains these fields:

  • ActorID — ID of the actor, specified as a positive integer.

  • Speed — Speed of the actor, specified as a scalar or an M-element row vector. M is the number of waypoints. Units are in meters per second.

  • Dimension — Dimensions of the actor, specified as a structure with fields Length, Width, Height, RearOverhang, and FrontOverhang. Units are in meters.

  • Waypoints — Waypoints of the actor, specified as an M-by-3 matrix. M is the number of waypoints. Each row represents the actor position in the form [x y z]. Units are in meters.

  • Yaw — Yaw angle of the actor, specified as an M-element column vector. M is the number of waypoints. Units are in radians.

    By default, the fields of the ActorVariationProperties structure are empty arrays, [].

Note

To set the fields of the ActorVariationProperties structure, you must use the varyActorProperties object function.

Collision variation properties, specified as a structure. The structure contains these fields:

  • Actor1ID — ID of the first colliding actor in the pair, specified as a positive integer.

  • Actor2ID — ID of the second colliding actor in the pair, specified as a positive integer.

  • Actor1CollisionFraction — Point of collision relative to the collision side of the first actor, specified as a scalar in the range [0, 1]. For more information, see Collision Fraction.

  • Actor1CollisionSide — Side of the first actor at which the collision occurs, specified as "Front", "Left", "Back", or "Right".

  • Actor2CollisionFraction — Point of collision relative to the collision side of the second actor, specified as a scalar in the range [0, 1]. For more information, see Collision Fraction.

  • Actor2CollisionSide — Side of the second actor at which the collision occurs, specified as "Front", "Left", "Back", or "Right".

  • VariationType — Parameter to change to generate variant with collision, specified as "WaitTime", "EntryTime", or "Waypoints".

Note

To set the fields of the CollisionVariationProperties structure, you must use the varyCollisionProperties object function.

Scene variation properties, specified as a structure. The structure contains these fields:

  • RoadID — ID of the road, specified as a positive integer.

  • LaneID — ID of the lane, specified as a positive integer.

  • Width — Width of the road or lane, specified as a positive scalar. Units are in meters.

  • LaneType — Type of the lane, specified as "driving" or "parking".

  • Marking — Lane markings of the road, specified as "solid", "dashed", "doublesolid", or "doubledashed".

  • MarkingColor — Marking color of the lane or road boundaries, specified as "white" or "yellow".

  • MarkingWidth — Marking width of the road or lane boundaries, specified as a positive scalar or a two-element numeric row vector. Units are in meters.

By default, the fields of the SceneVariationProperties structure are empty arrays, [].

Note

To set the fields of the SceneVariationProperties structure, you must use the varySceneProperties object function.

Euro NCAP test bench variation properties, specified as a structure. The structure contains these fields:

  • StartTestTime — Time to start safety assessment test. Units are in seconds.

  • EndTestTime — Time to end safety assessment test. Units are in seconds.

  • HandoverTime — Time to hand-over of control for Euro NCAP safety assessment testing, specified as a scalar. Units are in seconds.

By default, the fields of the TestVariationProperties structure are empty arrays, [].

Note

To set the fields of the TestVariationProperties structure, you must use the varyTestProperties object function.

Object Functions

varyActorPropertiesAdd variations to actor properties
varyCollisionPropertiesAdd variations to collision properties
varyScenePropertiesAdd variations to scene properties
varyTestPropertiesAdd variations to Euro NCAP test bench properties

Examples

collapse all

This example uses:

Open Live Script

Create an empty variationProperties object.

variation = variationProperties;

Display empty actor properties.

disp(variation.ActorVariationProperties)
      ActorID: []
        Speed: []
    Dimension: []
    Waypoints: []
          Yaw: []

Add speed and waypoint variations to the actor with an ActorID of 1.

waypoints = [0 0 0; 10 0 0];
varyActorProperties(variation,1,Speed=10,Waypoints=waypoints);

Display the actor property variations.

disp(variation.ActorVariationProperties)
      ActorID: 1
        Speed: 10
    Dimension: []
    Waypoints: [2×3 double]
          Yaw: []

This example uses:

Open Live Script

Load a driving scenario into the workspace.

load("scenarioWithSingleActor.mat")

Create a scenario descriptor from the input seed scenario.

seedScenarioDescriptor = getScenarioDescriptor(sc,Simulator="DrivingScenario");

Create a variationProperties object.

variation1 = variationProperties;

Add scene property variations to a road by specifying the road ID, width of the road, and marking color of the road boundaries.

roadID = 1;
varySceneProperties(variation1,roadID,Width=30,MarkingColor="yellow")
ans =
  variationProperties with properties:

        ActorVariationProperties: [1×1 struct]
    CollisionVariationProperties: []
        SceneVariationProperties: [1×1 struct]
         TestVariationProperties: [1×1 struct]

Using the seed scenario descriptor and the scene variation, generate a scenario variant descriptor.

scenarioVariantDescriptor1 = generateVariants(seedScenarioDescriptor,variation1);

Generate a variant scenario, as a drivingScenario object, from the scenario variant descriptor object.

scenarioVariant1 = getScenario(scenarioVariantDescriptor1,Simulator="DrivingScenario");

Create another variationProperties object.

variation2 = variationProperties;

Add scene property variations to a lane by specifying the road ID, lane ID, width of the lane, lane marking, and marking color of the lane boundaries.

roadID = 1;
laneID = 2;
varySceneProperties(variation2,roadID,laneID,Width=10,Marking="solid",MarkingColor="white")
ans =
  variationProperties with properties:

        ActorVariationProperties: [1×1 struct]
    CollisionVariationProperties: []
        SceneVariationProperties: [1×1 struct]
         TestVariationProperties: [1×1 struct]

Using the seed scenario descriptor and the scene variation, generate another scenario variant descriptor.

scenarioVariantDescriptor2 = generateVariants(seedScenarioDescriptor,variation2);

Generate another variant scenario, as a drivingScenario object, from the scenario variant descriptor object.

scenarioVariant2 = getScenario(scenarioVariantDescriptor2,Simulator="DrivingScenario");

Create a custom figure window to plot the seed scenario and the scenario variants.

figScene = figure;
set(figScene,Position=[200 200 900 300])
hCarViewPanel1 = uipanel(figScene,Position=[0 0 0.33 1],Title="Input Seed Scenario");
hCarPlot1 = axes(hCarViewPanel1);
hCarViewPanel2 = uipanel(figScene,Position=[0.34 0 0.33 1],Title='Generated Scenario Variant1');
hCarPlot2 = axes(hCarViewPanel2);
hCarViewPanel3 = uipanel(figScene,Position=[0.68 0 0.33 1],Title='Generated Scenario Variant2');
hCarPlot3 = axes(hCarViewPanel3);

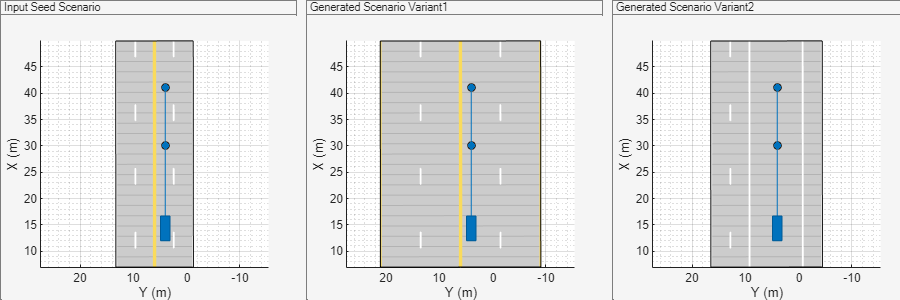

Plot the seed scenario and its variants. Observe the scene variation in the generated scenario variants.

plot(sc,Waypoints="on",Parent=hCarPlot1)
plot(scenarioVariant1,Waypoints="on",Parent=hCarPlot2)
plot(scenarioVariant2,Waypoints="on",Parent=hCarPlot3)

Tips

  • To apply actor property variations and collision variations to your seed scenario, use the generateVariants function.

Version History

Introduced in R2023a
