designDUC

R2026b

Design digital upconverter filter cascade

Since R2026b

Syntax

H = designDUC

H = designDUC(Name=Value)

Description

H = designDUC designs a 3-stage digital upconverter filter cascade with default specifications and returns a dsp.DUC System object™. The default design uses interpolation factors of [2 2 25], a passband ripple of 0.1 dB, a stopband attenuation of 60 dB, and a bandwidth of 90% of the input Nyquist rate.

example

H = designDUC(Name=Value) designs a DUC filter cascade with properties set using one or more name-value arguments. For example, designDUC(InterpolationFactors=[3 512],Bandwidth=0.01,StopbandAttenuation=80) designs a 2-stage DUC with a compensating FIR interpolation factor of 3 and a CIC interpolation factor of 512, with 80 dB of stopband attenuation.

Unless you specify the FilterOrders argument, the function uses minimum order design. Once you specify FilterOrders, the function uses the specified order design.

example

Examples

collapse all

Design a DUC with Default Settings

Open Live Script

Design a digital upconverter using default specifications. Display the resolved design parameters and visualize the filter response.

Design a 3-stage DUC with default specifications and display the resolved design parameters.

H = designDUC(Verbose=true)

designDUC(InterpolationFactors=[2 2 25], Bandwidth=1.8, PassbandRipple=0.1, StopbandAttenuation=60, InputSampleRate="normalized")

H =
  dsp.DUC with properties:

    NormalizedFrequency: true
             Oscillator: "Sine wave"
        CenterFrequency: 0
                 Filter: [1×1 dsp.FilterCascade]
          MixerDataType: "Same as input"

Visualize the frequency response of the filter cascade.

filterAnalyzer(H.Filter)

Design a 2-Stage DUC and Upconvert a Signal

Open Live Script

Design a 2-stage dsp.DUC object with custom specifications. Use the resulting object to upconvert a baseband signal to 50 kHz.

Create a 1 kHz sine wave at a sample rate of 6 kHz.

Fs = 6e3;
sine = dsp.SineWave(Frequency=1000, ...
    SampleRate=Fs, ...
    SamplesPerFrame=1024);
x = sine();

Design a 2-stage DUC with a total interpolation factor of 1536. Set the signal bandwidth to 2 kHz and the stopband attenuation to 55 dB.

L = [3 512];
H = designDUC(InterpolationFactors=L, ...
    InputSampleRate=Fs, ...
    Bandwidth=2e3, ...
    StopbandAttenuation=55, ...
    Verbose=true);

designDUC(InterpolationFactors=[3 512], Bandwidth=2000, PassbandRipple=0.1, StopbandAttenuation=55, InputSampleRate=6000)

H.CenterFrequency = 50e3;

Upconvert the signal. Visualize the spectrum before and after upconversion.

xUp = H(x);
FsOut = Fs*prod(L);
window = hamming(floor(length(x)/10));
figure
pwelch(x,window,[],[],Fs,"centered")
title("Spectrum of Baseband Signal")

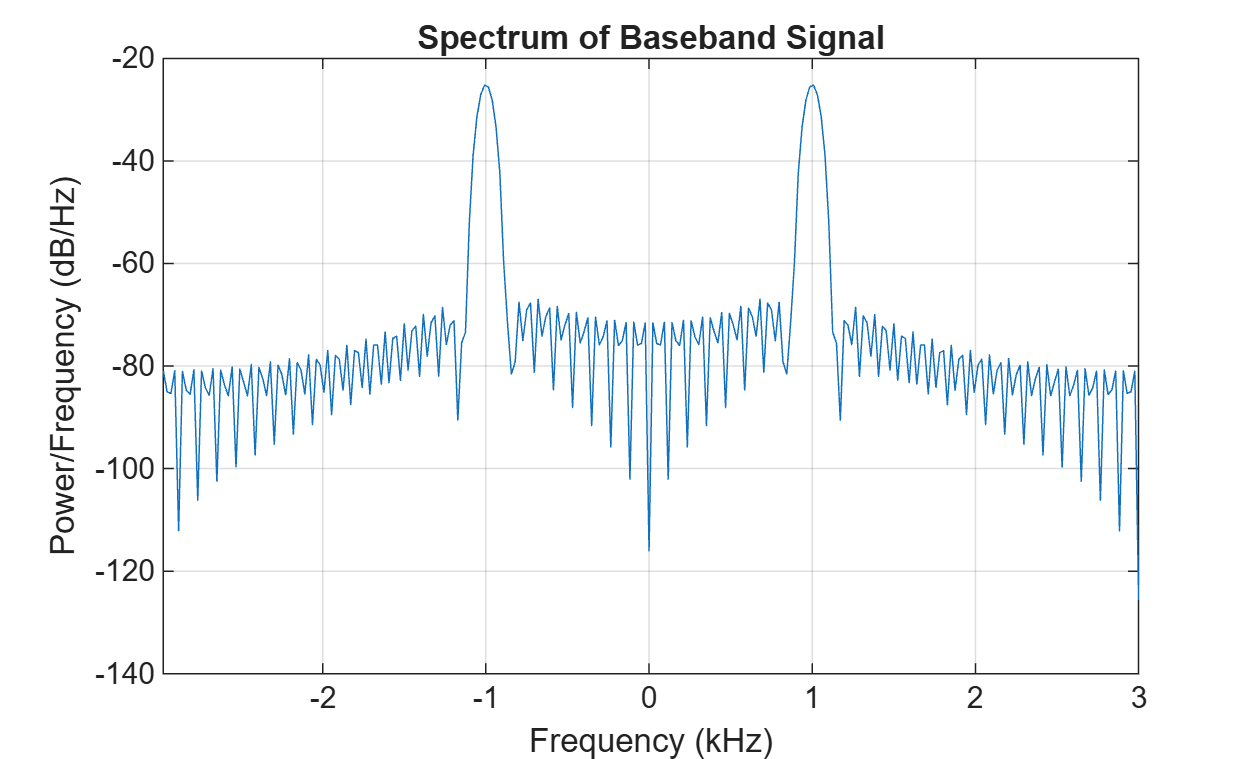

Figure contains an axes object. The axes object with title Spectrum of Baseband Signal, xlabel Frequency (kHz), ylabel Power/Frequency (dB/Hz) contains an object of type line.

window = hamming(floor(length(xUp)/10));
figure
pwelch(xUp,window,[],[],FsOut,"centered")
title("Spectrum of Upconverted Signal")

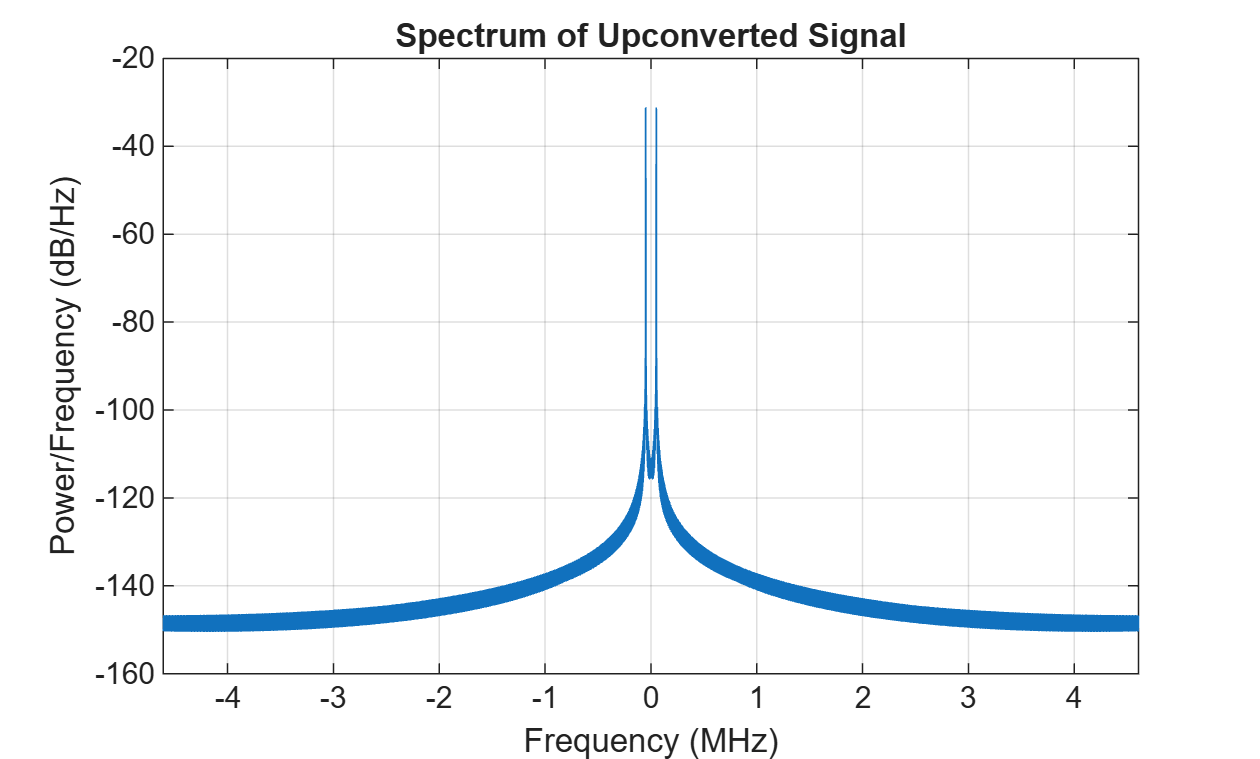

Figure contains an axes object. The axes object with title Spectrum of Upconverted Signal, xlabel Frequency (MHz), ylabel Power/Frequency (dB/Hz) contains an object of type line.

Design a 3-Stage DUC with an Absolute Sample Rate

Open Live Script

Design a 3-stage dsp.DUC object at a specific input sample rate and inspect the filter cascade.

Design a 3-stage DUC at 10 kHz with interpolation factors [2 7 631].

L = [2 7 631];
H = designDUC(InterpolationFactors=L, InputSampleRate=10e3, Verbose=true);

designDUC(InterpolationFactors=[2 7 631], Bandwidth=9000, PassbandRipple=0.1, StopbandAttenuation=60, InputSampleRate=10000)

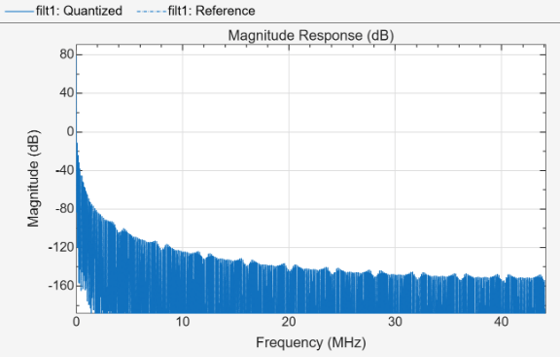

View the filter cascade information and frequency response.

info(H)

ans =
    'Digital Up Converter
     ----------------------------
     Input sample rate                    : 10 kHz
     Oscillator type                      : Sine wave
     Oscillator center frequency          : 0 Hz

     ----------------------------------------------------
     Filter type           : dsp.FilterCascade
     Rate conversion ratio : 8834:1

     Discrete-Time Filter Cascade
     ----------------------------
     Number of stages: 4
     Stage cloning: enabled
     ----------------------------
     Stage1: dsp.FIRInterpolator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure      : Direct-Form FIR Polyphase Interpolator
     Interpolation Factor  : 2
     Polyphase Length      : 38
     Filter Length         : 75
     Stable                : Yes
     Linear Phase          : Yes (Type 1)

     Stage2: dsp.FIRInterpolator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure      : Direct-Form FIR Polyphase Interpolator
     Interpolation Factor  : 7
     Polyphase Length      : 7
     Filter Length         : 43
     Stable                : Yes
     Linear Phase          : Yes (Type 1)

     Stage3: dsp.CICInterpolator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure      : Cascaded Integrator-Comb Interpolator
     Interpolation Factor  : 631
     Differential Delay    : 1
     Number of Sections    : 3
     Stable                : Yes
     Linear Phase          : Yes (Type 1)

     Stage4: double
     -------


     '

filterAnalyzer(H.Filter)

Design a DUC with Specified Filter Orders

Open Live Script

Design a dsp.DUC object by specifying the filter orders for each stage instead of using minimum order design.

Design a 3-stage DUC with an auxiliary FIR order of 20, a compensator FIR order of 30, and a CIC section count of 5.

H = designDUC(InterpolationFactors=[2 7 120], FilterOrders=[20 30 5], Verbose=true);

designDUC(InterpolationFactors=[2 7 120], Bandwidth=1.8, FilterOrders=[20 30 5], InputSampleRate="normalized")

Display the filter cascade information.

info(H)

ans =
    'Digital Up Converter
     ----------------------------
     Input sample rate                    : normalized
     Oscillator type                      : Sine wave
     Oscillator center frequency          : 0 (normalized)

     ----------------------------------------------------
     Filter type           : dsp.FilterCascade
     Rate conversion ratio : 1680:1

     Discrete-Time Filter Cascade
     ----------------------------
     Number of stages: 4
     Stage cloning: enabled
     ----------------------------
     Stage1: dsp.FIRInterpolator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure      : Direct-Form FIR Polyphase Interpolator
     Interpolation Factor  : 2
     Polyphase Length      : 11
     Filter Length         : 21
     Stable                : Yes
     Linear Phase          : Yes (Type 1)

     Stage2: dsp.FIRInterpolator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure      : Direct-Form FIR Polyphase Interpolator
     Interpolation Factor  : 7
     Polyphase Length      : 5
     Filter Length         : 31
     Stable                : Yes
     Linear Phase          : Yes (Type 1)

     Stage3: dsp.CICInterpolator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure      : Cascaded Integrator-Comb Interpolator
     Interpolation Factor  : 120
     Differential Delay    : 1
     Number of Sections    : 5
     Stable                : Yes
     Linear Phase          : Yes (Type 2)

     Stage4: double
     -------


     '

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: designDUC(InterpolationFactors=[2 2 25],Bandwidth=0.009,StopbandAttenuation=60)

`InterpolationFactors` — Interpolation factors for each stage
1-by-2 vector of positive integers | 1-by-3 vector of positive integers

Interpolation factors for each filter stage, specified as a 1-by-2 or 1-by-3 vector of positive integers. The last element is the CIC interpolation factor. The second-to-last element is the CIC compensator FIR interpolation factor. For a 3-stage design, the first element is the auxiliary FIR interpolation factor, which must be 1 or 2.

When you specify a 1-by-2 vector, the function designs a 2-stage cascade (where the stages are the CIC and the compensator). When you specify a 1-by-3 vector, the function designs a 3-stage cascade (where the stages are the CIC, compensator, and auxiliary).

The default depends on the number of stages: [2 2 25] for a 3-stage design, or [2 50] for a 2-stage design when FilterOrders is specified as a 1-by-2 vector.

Data Types: double

`Bandwidth` — One-sided signal bandwidth
positive scalar

One-sided signal bandwidth, specified as a positive scalar. This value is the passband edge frequency of the equivalent single-stage lowpass filter.

The bandwidth must be less than the maximum bandwidth, which equals the input sample rate (1 in normalized frequency mode).

When you do not specify this argument, the function defaults to 90% of the maximum bandwidth.

Data Types: double

`StopbandFrequency` — Stopband edge frequency
positive scalar

Stopband edge frequency of the equivalent single-stage lowpass filter, specified as a positive scalar. When you do not specify this argument, the stopband frequency defaults to the Nyquist rate of the input sample rate.

Data Types: double

`FilterOrders` — Filter orders for each stage
1-by-2 vector of positive integers | 1-by-3 vector of positive integers

Filter orders for each stage, specified as a 1-by-2 or 1-by-3 vector of positive integers. For a DUC, the last element specifies the number of CIC sections. The preceding elements specify the FIR filter orders for the auxiliary (if present) and compensator stages.

The length of FilterOrders must match the length of InterpolationFactors.

Specifying this argument switches the design to specified order mode. You cannot specify this argument if you specify PassbandRipple or StopbandAttenuation.

Data Types: double

`PassbandRipple` — Maximum passband ripple
`0.1` (default) | positive scalar

Maximum allowable passband ripple in dB, specified as a positive scalar. This argument applies only in minimum order design mode.

You cannot specify this argument if you specify FilterOrders.

Data Types: double

`StopbandAttenuation` — Minimum stopband attenuation
`60` (default) | positive scalar

Minimum required stopband attenuation in dB, specified as a positive scalar. This argument applies only in minimum order design mode.

You cannot specify this argument if you specify FilterOrders.

Data Types: double

`InputSampleRate` — Input sample rate
`"normalized"` (default) | positive scalar

Input sample rate, specified as one of these options:

"normalized" — Use normalized frequency. All frequency specifications are in normalized units in the range (0, 1).
Positive scalar — Input sample rate in hertz. All frequency specifications are in hertz.

Data Types: double | char | string

`Verbose` — Option to display resolved design specifications
`false` (default) | `true`

Option to display the resolved design specifications, specified as one of these:

false — The function does not display the design specifications.
true — The function prints the complete function call including the default values of all arguments that were not explicitly specified. Use this argument to see all the values used by the function to design the filter cascade.

Data Types: logical

Output Arguments

collapse all

`H` — Digital upconverter
`dsp.DUC`

Digital upconverter, returned as a dsp.DUC System object with these settings:

Filter — A dsp.FilterCascade containing the designed optional auxiliary FIR interpolator, CIC compensator FIR interpolator, CIC interpolator, and gain normalization scalar.
CenterFrequency — Set to 0.
InputSampleRate — Set to match the specified input sample rate.

Use the info object function or filterAnalyzer to inspect the designed filter cascade.

Algorithms

collapse all

DUC Filter Cascade Structure

The designDUC function designs a multistage interpolation filter cascade equivalent to a single-stage lowpass FIR filter preceded by a rate-change element. The cascade consists of:

Auxiliary FIR Interpolator (3-stage only) — Provides additional filtering and interpolation by a factor of 1 or 2.
CIC Compensator FIR Interpolator — Compensates for the CIC passband droop and provides additional interpolation.
CIC Interpolator — Performs the bulk of the interpolation at a low computational cost.
Gain Normalization — A scalar that compensates for the CIC gain.

The following diagram shows the 3-stage filter cascade structure. For a 2-stage design, the auxiliary FIR interpolator is not present.

Block diagram of 3-stage DUC filter pipeline: input feeds into Auxiliary FIR Interpolator (L3), then CIC Compensator FIR Interpolator (L2), then CIC Interpolator (L1) to produce output.

The auxiliary FIR interpolator, present only in 3-stage designs, provides additional filtering and interpolates by a factor of L3 (1 or 2). The CIC compensator FIR interpolator corrects the passband droop introduced by the CIC stage and interpolates by a factor of L2. The CIC interpolator performs the bulk of the rate change with interpolation factor L1. The elements of the InterpolationFactors argument correspond to [L2 L1] for a 2-stage design or [L3 L2 L1] for a 3-stage design.

Design Modes

The function supports two design modes:

Minimum order (default) — The function determines the filter orders to meet the specified PassbandRipple and StopbandAttenuation tolerances.
Specified order — You specify the filter orders for all stages using the FilterOrders argument. The function designs the filters with the given orders without regard to passband ripple or stopband attenuation constraints.

Version History

Introduced in R2026b
