getCursorInfo

Return settings for Logic Analyzer cursor

collapse all in page

Syntax

cursorInfo = getCursorInfo(scope,'CursorTag',tag)

Description

cursorInfo = getCursorInfo(scope,'CursorTag',tag) returns the settings for the cursor or cursors specified by the input tag.

example

Examples

collapse all

Open Live Script

This example shows how to use functions to create, manipulate, and delete cursors in a dsp.LogicAnalyzer object.

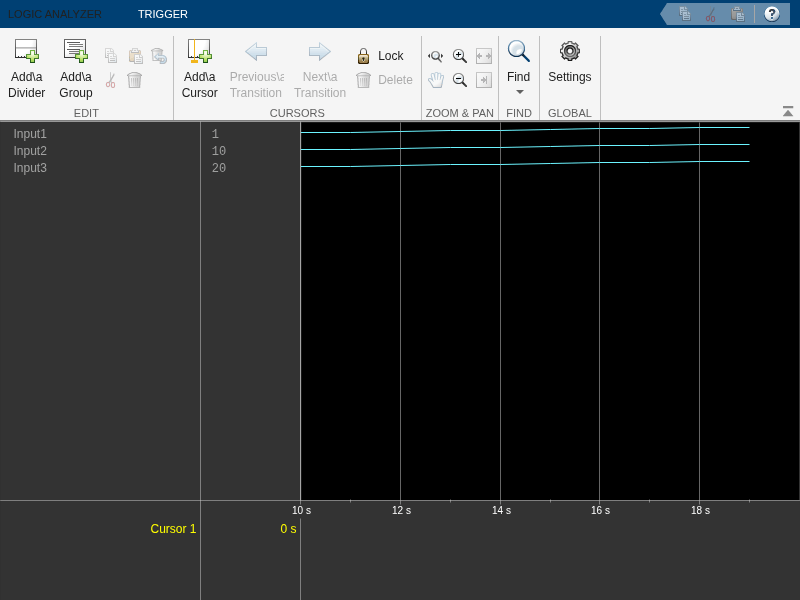

Create Logic Analyzer and Signals

scope = dsp.LogicAnalyzer('NumInputPorts',3);
for ii = 1:20
    scope(ii,10*ii,20*ii);
end

Add Cursor

Add a cursor at 15 seconds and show the cursor information.

cursor = addCursor(scope,'Location',15,'Color','Cyan');
getCursorInfo(scope,cursor)
ans = struct with fields:
    Location: 15
       Color: [0 1 1]
      Locked: 0
         Tag: 'C2'

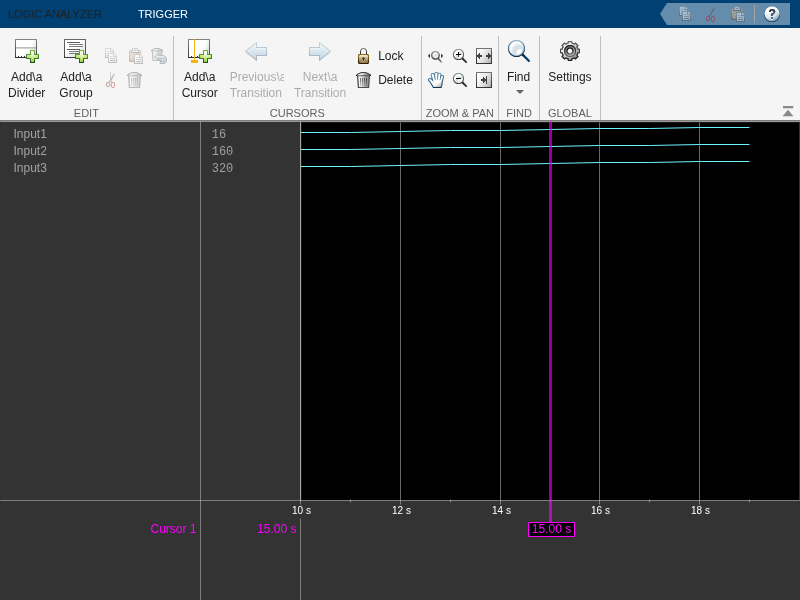

Modify Cursor

Change the cursor color to magenta.

hide(scope)
modifyCursor(scope,cursor,'Color','Magenta')
show(scope)

Remove Cursor

Delete the yellow cursor at 0 seconds.

hide(scope)
tags = getCursorTags(scope);
deleteCursor(scope,tags{1});
show(scope)

Input Arguments

collapse all

The Logic Analyzer object from which you want to return cursor settings, specified as a handle to the dsp.LogicAnalyzer object.

The tag or tags identifying the cursor or cursors about which to get information, specified as the randomly assigned cursor tag or tags.

Example: 'C5'

Example: {'C4','C5'}

Example: ["C4","C5"]

Data Types: char | cell | string

Output Arguments

collapse all

The cursorInfo struct contains the following fields:

  • Location — Location of the cursors

  • Color — Color of the cursors

  • Locked — Locked status of the cursors

  • Tag — Tag identifying cursors

Version History

Introduced in R2013a
