Configure Array Plot

When you use the dsp.ArrayPlot object in MATLAB® or the Array Plot block in Simulink® you can configure many settings and tools from the interface. These sections show you how to use the Array Plot interface and the tools available.

Signal Display

This figure highlights the important aspects of the Array Plot window, in MATLAB:

Array Plot object window with callouts pointing to the toolstrip, title axes labels, status

And in Simulink:

Array plot block window with Simulation Controls

  • Min X-Axis — Array Plot sets the minimum x-axis limit using the value of the X-Offset property. To change the X-Offset from the Array Plot window, click Settings and set the X-Offset.

  • Max X-Axis — Array Plot sets the maximum x-axis limit by adding the value of X-Offset parameter with the span of x-axis values multiplied by the Sample Increment property as determined by this equation:

    xmax=SampleIncrement(length(x)1)+XOffset

    To modify the Sample Increment from the Array Plot window, click Settings and set the Sample Increment. If you set Sample Increment to 0.1 and the input signal data has 51 samples, the scope displays values on the x-axis from 0 to 5. If you also set the X-Offset to –2.5, the scope displays values on the x-axis from –2.5 to 2.5. The values on the x-axis of the scope display remain the same throughout simulation.

  • Status — Provides the current status of the plot. The status can be:

    • Processing

      • Object — Occurs after you run the object and before you run the release method.

      • Block — Occurs during the simulation.

    • Stopped

      • Object — Occurs after you call release.

      • Block — Occurs before and after the simulation.

    • Ready

      • Object — Occurs after you construct the scope object and before you first call the object.

      • Block — Occurs after you open the scope and before your first run a simulation.

    • Paused

      • Block — Occurs when you pause the simulation.

  • Title, X-Axis Label, Y-Axis Label — You can customize the title and axes labels from Settings or by using the Title, YLabel, and XLabel properties.

  • Toolstrip — The Scope tab contains buttons and settings to customize and share the array plot. The Measurements tab contains buttons and settings to turn on different measurement tools. Use the pin button to keep the toolstrip showing or the arrow button to hide the toolstrip.

  • (Block only) Simulation Controls — Control your Simulink simulation from the Array Plot window.

Multiple Signal Names and Colors

By default, if the input signal has multiple channels, the scope uses an index number to identify each channel of that signal. For example, the legend for a two-channel signal will display the default names Channel 1, Channel 2. To show the legend, on the Scope tab, click Legend. If there are a total of seven input channels, the legend displayed is:

When the background is black, the default colors of the input channels are yellow, blue, orange, green, purple, teal, and pink.

By default, the scope has a black axes background and chooses line colors for each channel in a manner similar to the Scope (Simulink) block. When the scope axes background is black, it assigns each channel of each input signal a line color in the order shown in the legend. If there are more than seven channels, then the scope repeats this order to assign line colors to the remaining channels. When the axes background is not black, the signals are colored in this order:

When the background is not black, the default colors of the input channels are dark blue, orange, dark yellow, purple, green, light blue, and maroon.

To choose line colors or background colors, on the Scope tab, click Settings. Use the Axes color drop-down to change the background of the plot. Click Line to choose a line to change, and the Color drop-down to change the line color of the selected line.

Configure Plot Settings

On the Scope tab, the Configuration section allows you to modify the plot.

  • The Legend button turns the legend on or off. When you show the legend, you can control which signals are shown. If you click a signal name in the legend, the signal is hidden from the plot and shown in grey on the legend. To redisplay the signal, click on the signal name again. This button corresponds to the ShowLegend property in the object or the Legend property on the block.

  • The Magnitude Phase button splits the magnitude and phase of the input signal and plots them on two separate axes within the same window. This button corresponds to the PlotAsMagnitudePhase property in the object or the Magnitude and Phase property on the block.

  • The Settings button opens the settings window which allows you to customize the x-axis, y-limits, plot labels, and signal colors.

Use Array Plot Measurements

All measurements are made for a specified channel. By default, measurements are applied to the first channel. To change which channel is being measured, use the Select Channel drop-down in the Measurements tab.

Data Cursors

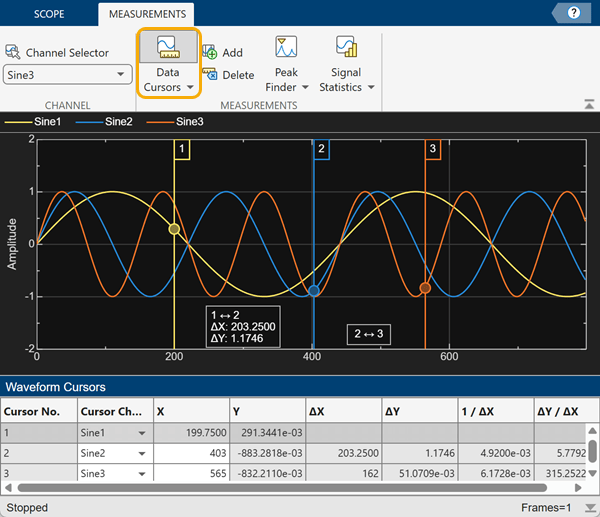

Scope window with the data cursor measurements turned on

Use the Data Cursors button to display screen cursors. The cursors are vertical cursors that track along the selected signal. Between the two cursors, the difference between the x- and y-values of the signal at the two cursor points is displayed.

Signal Statistics

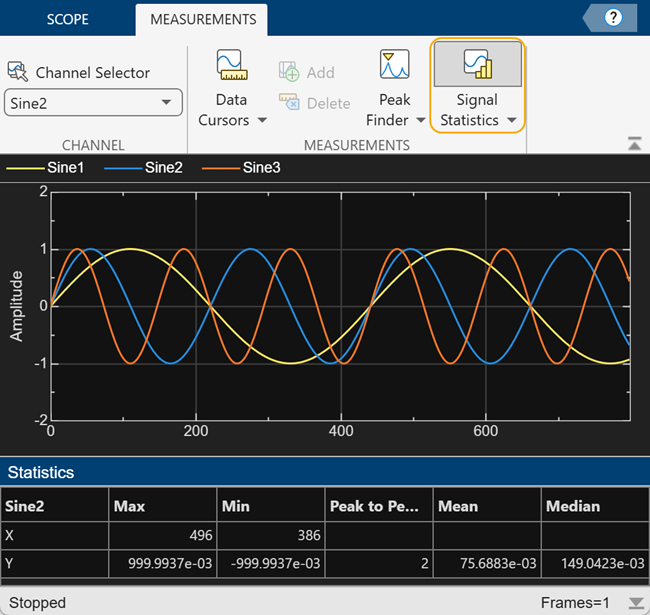

Scope window with the signal statistics measurements turned on

Use the Signal Statistics button to display statistics about the selected signal at the bottom of the array plot window. You can hide or show the Statistics panel using the arrow button in the bottom right of the panel.

  • Max — Maximum value within the displayed portion of the input signal.

  • Min — Minimum value within the displayed portion of the input signal.

  • Peak to Peak — Difference between the maximum and minimum values within the displayed portion of the input signal.

  • Mean — Average or mean of the values within the displayed portion of the input signal.

  • Variance –– Variance of the values within the displayed portion of the input signal.

  • Standard Deviation –– Standard deviation of the values within the displayed portion of the input signal.

  • Median — Median value within the displayed portion of the input signal.

  • RMS — Root mean square of the input signal.

  • Mean Square –– Mean square of the values within the displayed portion of the input signal.

To customize which statistics to show and compute, use the Signal Statistics list.

Peak Finder

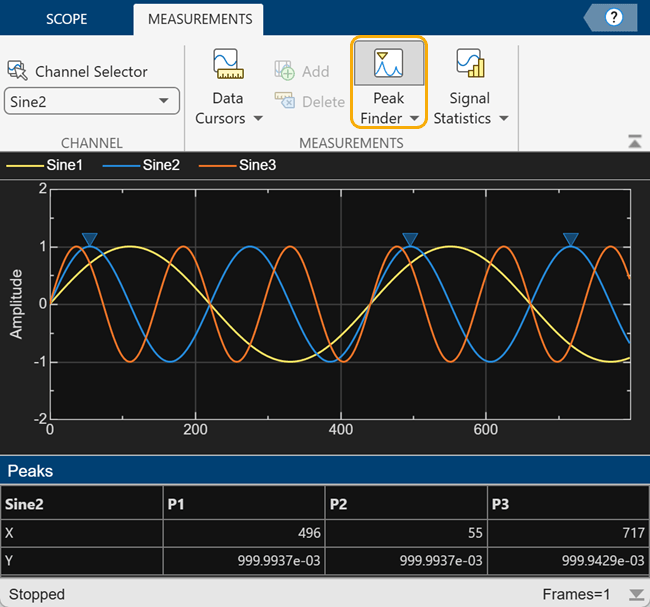

Scope window with the peak finder measurements turned on

Use the Peak Finder button to display peak values for the selected signal. Peaks are defined as a local maximum where lower values are present on both sides of a peak. Endpoints are not considered peaks. For more information on the algorithms used, see findpeaks.

When you turn on the peak finder measurements, an arrow appears on the plot at each maxima and a Peaks panel appears at the bottom of the array plot window showing the x and y values at each peak.

You can customize several peak finder settings:

  • Num Peaks — The number of peaks to show. Must be a scalar integer from 1 through 99.

  • Min Height — The level above which peaks are detected.

  • Min Distance — The minimum number of samples between adjacent peaks.

  • Threshold — The minimum height difference between a peak and its neighboring samples.

  • Label Peaks — Show labels (P1, P2, …) above the arrows on the plot.

Share or Save the Array Plot

If you want to save the array plot for future use or share it with others, use the buttons in the Share section of the Scope tab.

  • (Object only) Generate Script — Generate a script to regenerate your array plot with the same settings. An editor window opens with the code required to recreate your dsp.ArrayPlot.

  • Copy Display — Copy the display to your clipboard. You can paste the image in another program to save or share.

  • Print — Opens a print dialog box from which you can print out the plot image.

  • Snapshot — During a simulation, use the Snapshot button to pause the visualization at an interesting point so you can take a screenshot of the Array Plot window.

Scale Axes

To scale the plot axes, you can use the mouse to pan around the axes and the scroll button on your mouse to zoom in and out of the plot. Additionally, you can use the buttons that appear when you hover over the plot window.

  • Maximize button — Maximize the axes, hide all labels and inset the axes values.

  • Zoom button — Zoom in on the plot.

  • Panning button — Pan the plot.

  • Autoscale button — Autoscale the axes to fit the shown data.

Set Additional Properties

You can only change some Array Plot properties outside the Array Plot window, such as the signal names in the legend or the number of inputs. For the dsp.ArrayPlot object, you can set those properties from the command-line. For the Array Plot block, set those properties using the Property Inspector (Set Block Parameter Values (Simulink)) or from the command-line using get_param (Simulink) and set_param (Simulink).

Find the Array Plot Block in Your Model

To highlight the Array Plot block within your model, on the Scope tab, select the Highlight Block button. On the Simulink canvas, the Array Plot block is outlined in a highlight color so you can more easily identify it in your model.
