While 循环
此示例说明如何使用 Simulink® 模块、Stateflow® 图和 MATLAB® Function 模块实现 while
循环构造。
C 构造
while(flag && (num_iter <= 100) { flag = func (); num_iter ++; }
While 循环的建模模式:While Iterator Subsystem 模块
创建 while
循环的一种方法是使用 Simulink > 端口和子系统库中的 While Iterator Subsystem 模块。
1.打开示例模型 ex_while_loop_SL
。
该模型包含一个 While Iterator Subsystem 模块,该模块在仿真时间步期间重复执行子系统的内容。
观察模型中的以下设置:
Constant 模块为 While Iterator Subsystem 提供初始条件。对于 Constant 模块,常量值为
1
,输出数据类型为boolean
。初始条件可能取决于模块的输入。
在 While Iterator Subsystem 中,
func
子系统模块的输出flag
为0
或1
,具体取决于func( )
中的算法结果。func()
是func
子系统中的函数名称。
在 While Iterator Subsystem 中,对于 While Iterator 模块,最大迭代次数是
100
。
对于 While Iterator 模块,While 循环类型是
while
。
2.要编译模型并生成代码,请按 Ctrl+B。
实现 while
循环的代码位于 ex_while_loop_SL.c
中的 ex_while_loop_SL_step
函数中:
/* Model step function */ void ex_while_loop_SL_step(void) { int32_T s1_iter; boolean_T loopCond; /* Outputs for Iterator SubSystem: '<Root>/While Iterator Subsystem' incorporates: * WhileIterator: '<S1>/While Iterator' */ s1_iter = 1; /* SystemReset for Atomic SubSystem: '<S1>/func' */ func_Reset(); /* End of SystemReset for SubSystem: '<S1>/func' */ loopCond = true; while (loopCond && (s1_iter <= 100)) { /* Outputs for Atomic SubSystem: '<S1>/func' */ func(); /* End of Outputs for SubSystem: '<S1>/func' */ loopCond = flag; s1_iter++; } /* End of Outputs for SubSystem: '<Root>/While Iterator Subsystem' */ }
While 循环的建模模式:Stateflow 图

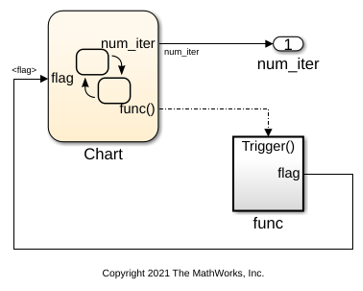

1.打开示例模型 ex_while_loop_SF
。
在该模型中,ex_while_loop_SF/Chart
执行 while
循环。
该图包含 While
循环决策模式,您可以通过在图内右键点击并依次点击在图中添加构型 > 循环 > While 来添加该模式。
2.要编译模型并生成代码,请按 Ctrl+B。
实现 while
循环的代码位于 ex_while_loop_SF.c
中的 ex_while_loop_SF_step
函数中:
/* Model step function */ void ex_while_loop_SF_step(void) { /* Chart: '<Root>/Chart' */ num_iter = 1; while (flag && (num_iter <= 100)) { /* Outputs for Function Call SubSystem: '<Root>/func' */ func(); /* End of Outputs for SubSystem: '<Root>/func' */ num_iter++; } /* End of Chart: '<Root>/Chart' */ }
While 循环的建模模式:MATLAB Function 模块

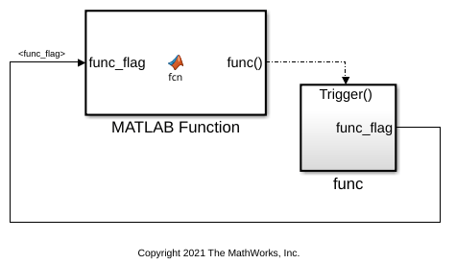

1.打开示例模型 ex_while_loop_ML
。
MATLAB Function 模块包含以下函数:
function fcn(func_flag) flag = true; num_iter = 1; while(flag && (num_iter<=100)) func; flag = func_flag; num_iter = num_iter + 1; end
2.要编译模型并生成代码,请按 Ctrl+B。
实现 while
循环的代码位于 ex_while_loop_ML.c
中的 ex_while_loop_ML_step
函数中:
/* Model step function */ void ex_while_loop_ML_step(void) { int32_T num_iter; boolean_T flag; boolean_T func_flag_0; /* MATLAB Function: '<Root>/MATLAB Function' */ func_flag_0 = func_flag; flag = true; num_iter = 1; while (flag && (num_iter <= 100)) { /* Outputs for Function Call SubSystem: '<Root>/func' */ func(); /* End of Outputs for SubSystem: '<Root>/func' */ flag = func_flag_0; num_iter++; } /* End of MATLAB Function: '<Root>/MATLAB Function' */ }
