CORDIC Sigmoid HDL Optimized

CORDIC-based sigmoid activation

Since R2024a

Libraries:
Fixed-Point Designer HDL Support / Math Operations

Description

The CORDIC Sigmoid HDL Optimized block returns the sigmoid activation of u, computed using a CORDIC-based implementation optimized for HDL code generation.

Examples

expand all

How to Use CORDIC Sigmoid HDL Optimized Block

Open Live Script

This example demonstrates how to compute the sigmoid activation of a given real-valued set of data using the CORDIC Sigmoid HDL Optimized block.

Algorithm

The sigmoid function is defined by

$y = \frac{1}{1 + exp (- x)}$

which is equivalent to

$y = \frac{1 - tanh (- x / 2)}{2} .$

The core algorithm of this block uses the CORDIC algorithm in hyperbolic rotation mode to compute the Hyperbolic Tangent HDL Optimized (tanh).

Supported Data Types

The CORDIC Sigmoid HDL Optimized block supports single, double, binary-point scaled fixed-point, and binary-point scaled-double data types for simulation. However, only binary-point scaled fixed-point data types are supported for HDL code generation.

I/O Interface

The CORDIC Sigmoid HDL Optimized block accepts data when the ready output is high, indicating that the block is ready to begin a new computation. Use validIn to indicate a valid input. If the block successfully registers the input value it will de-assert the ready signal; you must then wait until the signal is asserted again to send a new input. This protocol is summarized in the following wave diagram. Note how the first valid input to the block is discarded because the block was not ready to accept input data.

When the block has finished the computation and is ready to send the output, it will assert validOut for one clock cycle. Then ready will be asserted, indicating that the block is ready to accept a new input value.

Simulate the Model

Open the CORDICSigmoidModel model.

mdl = 'CORDICSigmoidModel';
open_system(mdl)

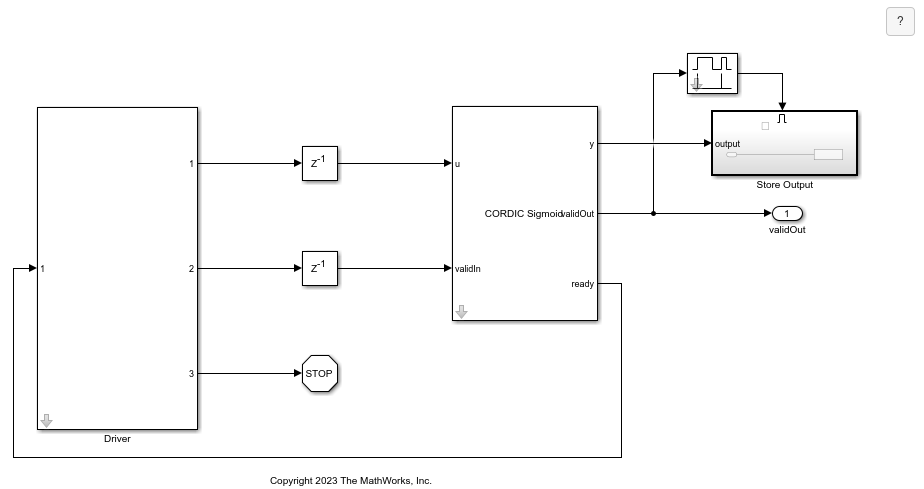

The model contains the CORDIC Sigmoid HDL Optimized block connected to a data source which takes in an array of inputs and passes an input value from the array to the CORDIC Sigmoid HDL Optimized block when it is ready to accept a new input. The output computed for each value is stored in a workspace variable. The simulation terminates when all inputs have been processed.

Define an array of inputs.

x = fi(linspace(-10,10,100));

Simulate the model.

sim(mdl);

When the simulation is complete, a new workspace variable, sigmoidOutput, is created to hold the computed value for each input.

Plot the Output

Plot the error of the calculation by comparing the output of the CORDIC Sigmoid HDL Optimized block to that of the MATLAB® cordicsigmoid function.

yMATLAB = cordicsigmoid(x);
yMATLAB.numerictype

ans =


          DataTypeMode: Fixed-point: binary point scaling
            Signedness: Signed
            WordLength: 16
        FractionLength: 14

sigmoidOutput.numerictype

ans =


          DataTypeMode: Fixed-point: binary point scaling
            Signedness: Signed
            WordLength: 16
        FractionLength: 14

figure(1);
plot(x, sigmoidOutput);
hold on
plot(x, yMATLAB);
legend('CORDIC Sigmoid HDL Optimized block','cordicsigmoid Function');

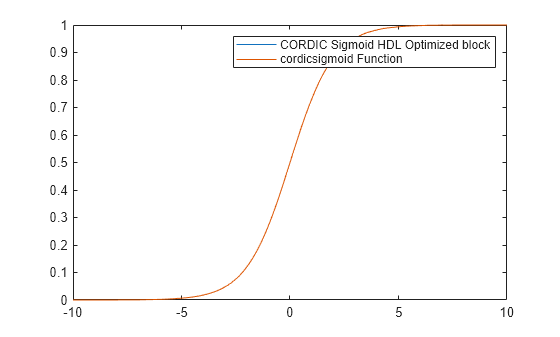

Figure contains an axes object. The axes object contains 2 objects of type line. These objects represent CORDIC Sigmoid HDL Optimized block, cordicsigmoid Function.

Verify the block output is bit-exact with the output of the cordicsigmoid function.

max(yMATLAB' - sigmoidOutput)

ans =
     0

          DataTypeMode: Fixed-point: binary point scaling
            Signedness: Signed
            WordLength: 17
        FractionLength: 14

Ports

Input

expand all

u — Input data
real-valued scalar

Input data, specified as a real-valued scalar.

If u is a fixed-point or scaled double data type, u must use binary-point scaling. Slope-bias representation is not supported for fixed-point data types. Only binary-point scaled fixed-point data types are supported for code generation.

Data Types: single | double | fixed point

validIn — Whether input is valid
`Boolean` scalar

Whether input is valid, specified as a Boolean scalar. This control signal indicates when the data from the u input port is valid. When this value is 1 (true), the block captures the value on the u input port. When this value is 0 (false), the block ignores the input samples.

Data Types: Boolean

Output

expand all

y — Sigmoid activation of `u`
scalar

Sigmoid activation of the value at u, returned as a scalar. The value at y is the CORDIC-based approximation of the sigmoid activation of u.

When the input u is floating point, the output y has the same data type as the input. When the input is a fixed-point data type, the output has the same word length as the input and a fraction length equal to 2 less than the word length.

Data Types: single | double | fixed point

validOut — Whether output data is valid
`Boolean`

Whether the output data is valid, returned as a Boolean scalar. When the value of this control signal is 1 (true), the block has successfully computed the output y. When this value is 0 (false), the output data is not valid.

Data Types: Boolean

ready — Whether block is ready
`Boolean`

Whether the block is ready, returned as a Boolean scalar. This control signal indicates when the block is ready for new input data. When this value is 1 (true), and the validIn value is 1 (true), the block accepts input data in the next clock cycle. When this value is 0 (false), the block ignores input data in the next clock cycle.

Data Types: Boolean

More About

expand all

Algorithms

expand all

CORDIC

CORDIC is an acronym for COordinate Rotation DIgital Computer. The Givens rotation-based CORDIC algorithm is one of the most hardware-efficient algorithms available because it requires only iterative shift-add operations (see References). The CORDIC algorithm eliminates the need for explicit multipliers.

The block automatically determines the number of iterations, niters, the CORDIC algorithm performs based on the data type of the input.

Data type of input x	`niters`
single	`23`
double	`52`
fixed point	One less than the word length of u. The minimum number of CORDIC iterations is `7`.

How to Interface with the CORDIC Sigmoid HDL Optimized Block

The CORDIC Sigmoid HDL Optimized block accepts data when the ready output is high, indicating that the block is ready to begin a new computation. To send input data to the block, the validIn signal must be asserted. If the block successfully registers the input value it will de-assert the ready signal, and you must then wait until the signal is asserted again to send a new input. This protocol is summarized in the following wave diagram. Note how the first valid input to the block is discarded because the block was not ready to accept input data.

Hardware Resource Utilization

This block supports HDL code generation using the Simulink^® HDL Workflow Advisor. For an example, see HDL Code Generation and FPGA Synthesis from Simulink Model (HDL Coder) and Implement Digital Downconverter for FPGA (DSP HDL Toolbox).

This example data was generated by synthesizing the block on a Xilinx^® Zynq^®-7000 xc7z045 SoC. The synthesis tool was Vivado^® v2023.1 (win64).

The following parameters were used for synthesis.

Input data type: sfix16_en10
Target frequency: 200 MHz

Resource Summary

Resource	Usage	Available	Utilization (%)
Slice LUTs	2516	218600	1.15
Slice Registers	733	437200	0.17
DSPs	0	900	0.00
Block RAM Tile	0	545	0.00
URAM	0	0

Timing Summary

	Value
Requirement	5 ns (200 MHz)
Data Path Delay	4.815 ns
Slack	0.166 ns
Clock Frequency	206.87 MHz

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

General
ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is `0`. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is `0`. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is `0`. For more details, see OutputPipeline (HDL Coder).

Restrictions

Only binary-point scaled fixed-point data types are supported for code generation.

Version History

Introduced in R2024a
