smooth

Backward smooth state estimates of trackingIMM filter

Since R2021a

collapse all in page

Syntax

[smoothX,smoothP,modelProbability] = smooth(imm)
[smoothX,smoothP,modelProbability] = smooth(imm,numBackSteps)

Description

[smoothX,smoothP,modelProbability] = smooth(imm) runs a backward recursion to obtain smoothed states, covariances, and model probabilities at the previous steps for a trackingIMM filter, imm. The function determines the number of backward steps based on the number of executed forward steps F and the maximum number of backward steps MB specified by the MaxNumSmoothingSteps property of the filter. If F < MB, the number of backward steps is F – 1. Otherwise, the number of backward steps is MB.

The number of forward steps is equal to the number of calls to the predict object function of the filter. The backward steps do not include the current time step of the filter.

example

[smoothX,smoothP,modelProbability] = smooth(imm,numBackSteps) specifies the number of backward smoothing steps numBackSteps. The value of numBackSteps must be less than or equal to the smaller of F – 1 and MB, where F is the number of executed forward steps and MB is the maximum number of backward steps specified by the MaxNumSmoothingSteps property of the filter.

Note

Use this function for trackingIMM filter. To run backward recursion to obtain smoothed states for other filters, see smooth.

Examples

collapse all

Open Live Script

Generate a truth using the attached helperGenerateTruth function. The truth trajectory consists of constant velocity, constant acceleration, and constant turn trajectory segments.

n = 1000;
[trueState, time, fig1] = helperGenerateTruth(n);
dt = diff(time(1:2));
numSteps = numel(time);

Set up the initial conditions for the simulation.

rng(2021); % for repeatable results
positionSelector = [1 0 0 0 0 0;
                    0 0 1 0 0 0;
                    0 0 0 0 1 0]; % Select position from 6-dimenstional state [x;vx;y;vy;z;vz]
truePos = positionSelector*trueState;
sigma = 10; % Measurement noise standard deviation
measNoise = sigma* randn(size(truePos));
measPos = truePos + measNoise;
initialState = positionSelector'*measPos(:,1);
initialCovariance = diag([1 1e4 1 1e4 1 1e4]); % Velocity is not measured

Construct an IMM filter based on three EKF filters and initialize the IMM filter.

detection = objectDetection(0,[0; 0; 0],'MeasurementNoise',sigma^2 * eye(3));
f1 = initcvekf(detection); % constant velocity EKF
f2 = initcaekf(detection); % constant acceleration EKF
f2.ProcessNoise = 3*eye(3);
f3 = initctekf(detection); % Constant turn EKF
f3.ProcessNoise(3,3) = 100;
imm = trackingIMM({f1; f2; f3},'TransitionProbabilities',0.99, ...
    'ModelConversionFcn',@switchimm, ...
    'EnableSmoothing',true, ...
    'MaxNumSmoothingSteps',size(measPos,2)-1);
initialize(imm, initialState, initialCovariance);

Preallocate variables for filter outputs.

estState = zeros(6,numSteps);
modelProbs = zeros(numel(imm.TrackingFilters),numSteps);
modelProbs(:,1) = imm.ModelProbabilities;

Run the filter.

for i = 2:size(measPos,2)
    predict(imm,dt);
    estState(:,i) = correct(imm,measPos(:,i));
    modelProbs(:,i) = imm.ModelProbabilities;
end

Smooth the filter.

[smoothState,~,smoothProbs] = smooth(imm);

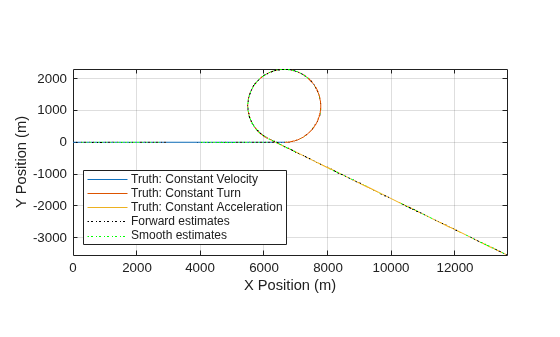

Visualize the estimates. Zoom in on the figure to view details.

fig1
fig1 =
  Figure (1) with properties:

      Number: 1
        Name: ''
       Color: [1 1 1]
    Position: [348 376 583 437]
       Units: 'pixels'

  Use GET to show all properties


hold on;
plot3(estState(1,:),estState(3,:),estState(5,:),'k:','DisplayName','Forward estimates')
plot3(smoothState(1,:),smoothState(3,:),smoothState(5,:),'g:','DisplayName','Smooth estimates')
axis image;

Figure contains an axes object. The axes object with xlabel X Position (m), ylabel Y Position (m) contains 5 objects of type line. These objects represent Truth: Constant Velocity, Truth: Constant Turn, Truth: Constant Acceleration, Forward estimates, Smooth estimates.

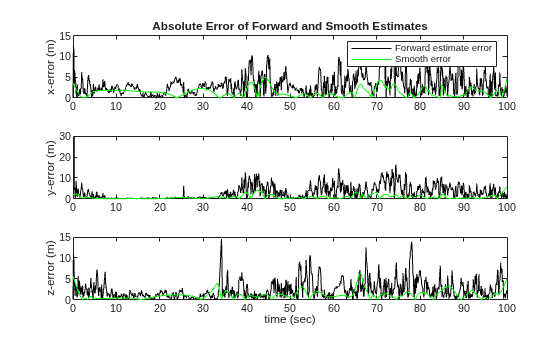

Plot the estimate errors for both the forward estimated states and the smoothed states. From the results, the smoothing process reduces the estimation errors.

figure;
errorTruth = abs(estState - trueState);
errorSmooth = abs(smoothState - trueState(:,1:end-1));

subplot(3,1,1)
plot(time,errorTruth(1,:),'k')
hold on
plot(time(1:end-1),errorSmooth(1,:),'g')
ylabel('x-error (m)')
legend('Forward estimate error','Smooth error')
title('Absolute Error of Forward and Smooth Estimates')

subplot(3,1,2)
plot(time,errorTruth(2,:),'k')
hold on;
plot(time(1:end-1),errorSmooth(2,:),'g')
ylim([0 30])
ylabel('y-error (m)')

subplot(3,1,3)
plot(time,errorTruth(3,:),'k')
hold on
plot(time(1:end-1),errorSmooth(3,:),'g')
xlabel('time (sec)')
ylabel('z-error (m)')

Figure contains 3 axes objects. Axes object 1 with title Absolute Error of Forward and Smooth Estimates, ylabel x-error (m) contains 2 objects of type line. These objects represent Forward estimate error, Smooth error. Axes object 2 with ylabel y-error (m) contains 2 objects of type line. Axes object 3 with xlabel time (sec), ylabel z-error (m) contains 2 objects of type line.

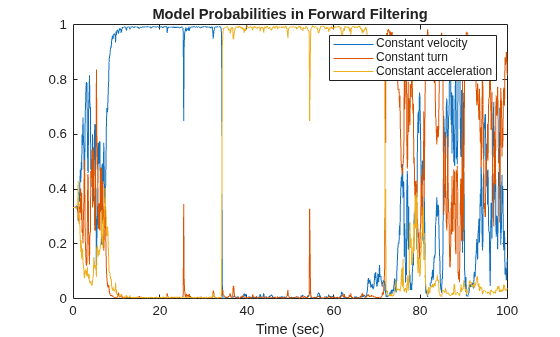

Show the model probabilities based on forward filtering and backward smoothing.

figure
plot(time,modelProbs(1,:))
hold on
plot(time,modelProbs(2,:))
plot(time,modelProbs(3,:))
xlabel('Time (sec)')
title('Model Probabilities in Forward Filtering')
legend('Constant velocity','Constant turn','Constant acceleration')

Figure contains an axes object. The axes object with title Model Probabilities in Forward Filtering, xlabel Time (sec) contains 3 objects of type line. These objects represent Constant velocity, Constant turn, Constant acceleration.

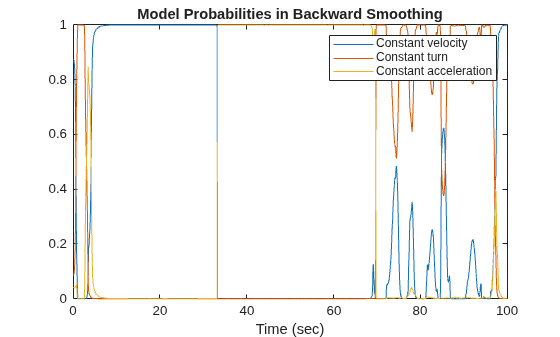

figure
plot(time(1:end-1),smoothProbs(1,:))
hold on
plot(time(1:end-1),smoothProbs(2,:))
plot(time(1:end-1),smoothProbs(3,:))
xlabel('Time (sec)');
title('Model Probabilities in Backward Smoothing')
legend('Constant velocity','Constant turn','Constant acceleration')

Figure contains an axes object. The axes object with title Model Probabilities in Backward Smoothing, xlabel Time (sec) contains 3 objects of type line. These objects represent Constant velocity, Constant turn, Constant acceleration.

Input Arguments

collapse all

Filter for object tracking, specified as an trackingIMM object.

Number of backward steps, specified as a positive integer. The value must be less than or equal to the smaller of F – 1 and MB, where F is the number of executed forward steps and MB is the maximum number of backward steps specified by the MaxNumSmoothingSteps property of the filter, imm.

Output Arguments

collapse all

Smoothed states, returned as an N-by-K matrix. N is the state dimension and K is the number of backward steps. The first column represents the state at the end of backward recursion, which is the earliest state in the time interval of smoothing. The last column represents the state at the beginning of backward recursion, which is the latest state in the time interval of smoothing.

Data Types: single | double

Smoothed covariances, returned as an N-by-N-by-K array. N is the state dimension and K is the number of backward steps. Each page (an N-by-N matrix) of the array is the smoothed covariance matrix for the corresponding smoothed state in the smoothX output.

Data Types: single | double

Probability of each model, returned as a K-by-M array of nonnegative scalars. K is the number of backward steps and M is the number of models used in the filter.

Data Types: single | double

References

[1] Nadarajah, N., R. Tharmarasa, Mike McDonald, and T. Kirubarajan. “IMM Forward Filtering and Backward Smoothing for Maneuvering Target Tracking.” IEEE Transactions on Aerospace and Electronic Systems 48, no. 3 (July 2012): 2673–78. https://doi.org/10.1109/TAES.2012.6237617.
