Map Persistent Variables to RAM for Histogram Equalization

Open Script

This example shows how to use the RAM mapping optimization in HDL Coder™ to map persistent matrix variables to block RAMs in hardware.

Introduction

In MATLAB, you can easily create, access, modify, and manipulate matrices.

When processing such MATLAB® code, HDL Coder maps these matrices to wires or registers in hardware. For example, local temporary matrix variables are mapped to wires, whereas persistent matrix variables are mapped to registers.

The latter tends to be an inefficient mapping when the matrix size is large because the number of register resources available is limited. It also complicates synthesis, placement, and routing.

Modern FPGAs feature block RAMs that are designed to have large matrices. HDL Coder takes advantage of this feature and maps matrices to block RAMs to improve area efficiency. For certain designs, mapping these persistent matrices to RAMs is mandatory if the design is to be realized. State-of-the-art synthesis tools might not be able to synthesize designs when large matrices are mapped to registers, whereas the size is more manageable when the same matrices are mapped to RAMs.

Algorithm

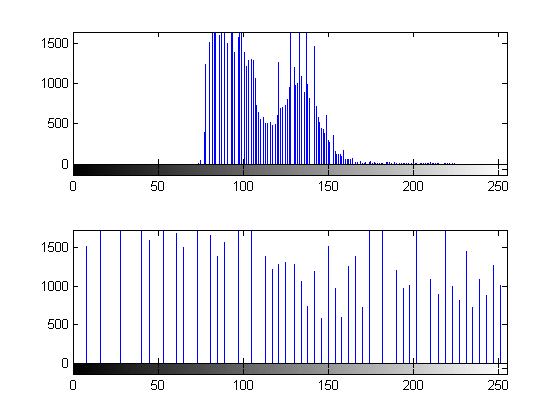

The Histogram Equalization algorithm enhances the contrast of images by transforming the values in an intensity image so that the histogram of the output image is approximately flat.

I = imread('pout.tif');
J = histeq(I);
subplot(2,2,1);
imshow( I );
subplot(2,2,2);
imhist(I)
subplot(2,2,3);
imshow( J );
subplot(2,2,4);
imhist(J)

MATLAB Design

The MATLAB code and MATLAB test bench used in the example is a Histogram Equalization algorithm.

design_name = 'mlhdlc_heq';
testbench_name = 'mlhdlc_heq_tb';

Review the MATLAB design

type(design_name);

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% heq.m
% Histogram Equalization Algorithm
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
function [x_out, y_out, pixel_out] = ...
    mlhdlc_heq(x_in, y_in, pixel_in, width, height)

%   Copyright 2011-2015 The MathWorks, Inc.

persistent histogram
persistent transferFunc
persistent histInd
persistent cumSum

if isempty(histogram)
    histogram = zeros(1, 2^14);
    transferFunc = zeros(1, 2^14);
    histInd = 0;
    cumSum = 0;
end

% Figure out indexes based on where we are in the frame
if y_in < height && x_in < width % valid pixel data
    histInd = pixel_in + 1;
elseif y_in == height && x_in == 0 % first column of height+1
    histInd = 1;
elseif y_in >= height % vertical blanking period
    histInd = min(histInd + 1, 2^14);
elseif y_in < height % horizontal blanking - do nothing
    histInd = 1;
end

%Read histogram (must be outside conditional logic)
histValRead = histogram(histInd);

%Read transfer function (must be outside conditional logic)
transValRead = transferFunc(histInd);

%If valid part of frame add one to pixel bin and keep transfer func val
if y_in < height && x_in < width
    histValWrite = histValRead + 1; %Add pixel to bin
    transValWrite = transValRead; %Write back same value
    cumSum = 0;
elseif y_in >= height %In blanking time index through all bins and reset to zero
    histValWrite = 0;
    transValWrite = cumSum + histValRead;
    cumSum = transValWrite;
else
    histValWrite = histValRead;
    transValWrite = transValRead;
end

%Write histogram (must be outside conditional logic)
histogram(histInd) = histValWrite;

%Write transfer function (must be outside conditional logic)
transferFunc(histInd) = transValWrite;

pixel_out = transValRead;
x_out = x_in;
y_out = y_in;

type(testbench_name);

%Test bench for Histogram Equalization

%   Copyright 2011-2018 The MathWorks, Inc.

testFile = 'mlhdlc_img_peppers.png';
imgOrig = imread(testFile);
[height, width] = size(imgOrig);
imgOut = zeros(height,width);
hBlank = 20;
% make sure we have enough vertical blanking to filter the histogram
vBlank = ceil(2^14/(width+hBlank));

for frame = 1:2
    disp(['working on frame: ', num2str(frame)]);
    for y_in = 0:height+vBlank-1
        %disp(['frame: ', num2str(frame), ' of 2, row: ', num2str(y_in)]);
        for x_in = 0:width+hBlank-1
            if x_in < width && y_in < height
                pixel_in = double(imgOrig(y_in+1, x_in+1));
            else
                pixel_in = 0;
            end

            [x_out, y_out, pixel_out] = ...
                mlhdlc_heq(x_in, y_in, pixel_in, width, height);

            if x_out < width && y_out < height
                imgOut(y_out+1,x_out+1) = pixel_out;
            end
        end
    end

    % normalize image to 255
    imgOut = round(255*imgOut/max(max(imgOut)));

    figure(1)
    subplot(2,2,1); imshow(imgOrig, [0,255]);
    title('Original Image');
    subplot(2,2,2); imshow(imgOut, [0,255]);
    title('Equalized Image');
    subplot(2,2,3); histogram(double(imgOrig(:)),2^14-1);
    axis([0, 255, 0, 1500])
    title('Histogram of original Image');
    subplot(2,2,4); histogram(double(imgOut(:)),2^14-1);
    axis([0, 255, 0, 1500])
    title('Histogram of equalized Image');
end

Simulate the Design

Before code generation, simulate the design by using the HDL test bench to make sure that there are no run-time errors.

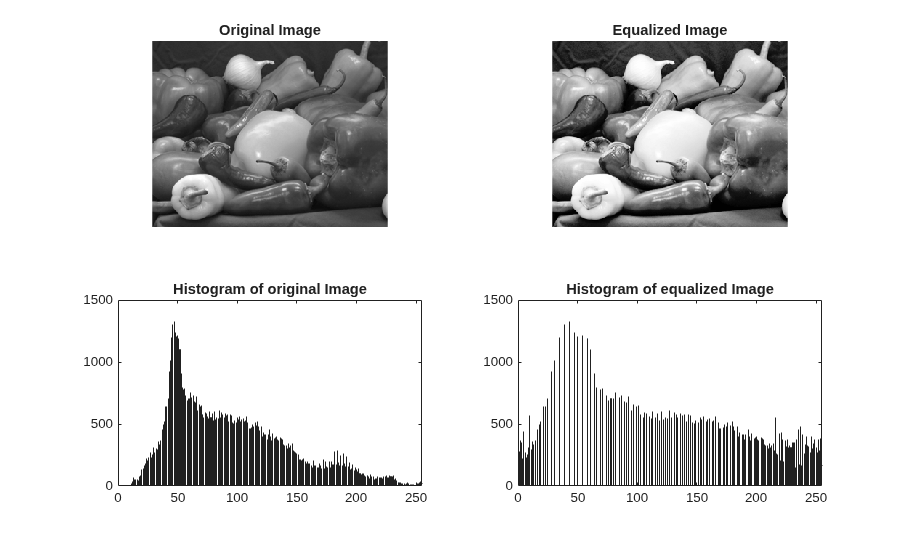

mlhdlc_heq_tb

working on frame: 1
working on frame: 2

Create HDL Coder™ Project

coder -hdlcoder -new mlhdlc_heq_prj

Add the file mlhdlc_heq.m to the project as the MATLAB Function and mlhdlc_heq_tb.m as the MATLAB Test Bench.

For more information, see Get Started with MATLAB to High-Level Synthesis Workflow Using the Command Line Interface or Get Started with MATLAB to High-Level Synthesis Workflow Using HDL Coder App. For more information, see Get Started with MATLAB to High-Level Synthesis Workflow Using the Command Line Interface or Get Started with MATLAB to High-Level Synthesis Workflow Using HDL Coder App. For more information, see Get Started with MATLAB to High-Level Synthesis Workflow Using the Command Line Interface or Get Started with MATLAB to High-Level Synthesis Workflow Using HDL Coder App.

HLS Code Generation by Using RAM Mapping Optimization

To generate HLS code from a MATLAB design:

1. At the MATLAB command line, setup the high-level synthesis (HLS) tool path for HLS code generation by using the function hdlsetuphlstoolpath.

2. Start the HDL Workflow Advisor.

3. Select as MATLAB to HLS as the Code Generation Workflow.

4. In Select Code Generation Target step, select Workflow as High Level Synthesis and Synthesis tool as Cadence Stratus.

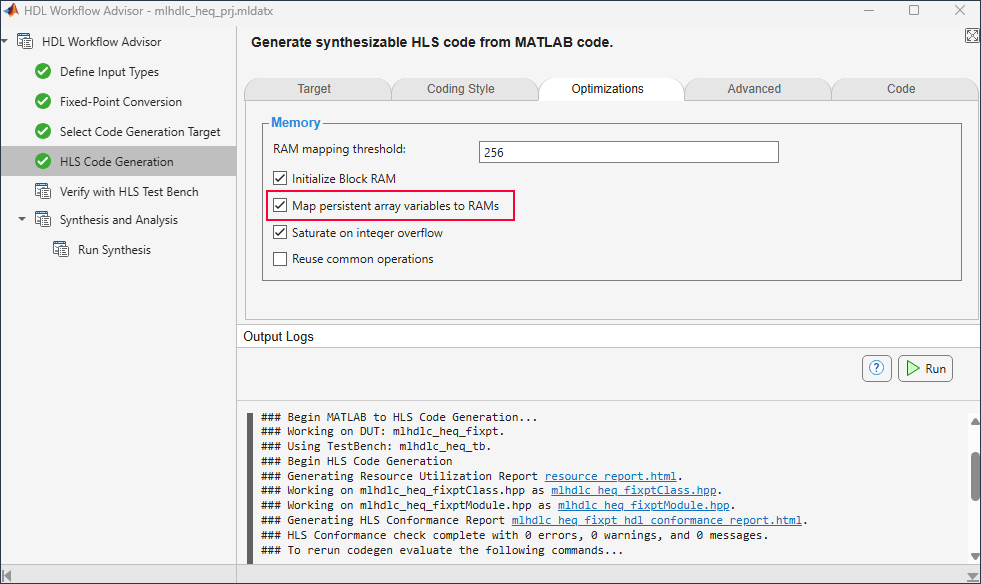

5. To map persistent variables to block RAMs in the generated code. Select Map persistent array variables to RAMs check box in the Optimizations tab of the HLS Code Generation step.

6. Right-click HLS Code Generation and choose the option Run to selected task to run all the steps from the beginning through the HLS code generation.

Examine the generated HLS code by clicking the hyperlinks in the Code Generation Log window.

Examine the Generated Code

Examine the messages in the log window to see the RAM files generated with the design.

Examine the Resource Report

Examine the generated resource report, which shows the number of RAMs inferred, by following the mlhdlc_heq_fixpt_syn_results.txt link in the generated code window.

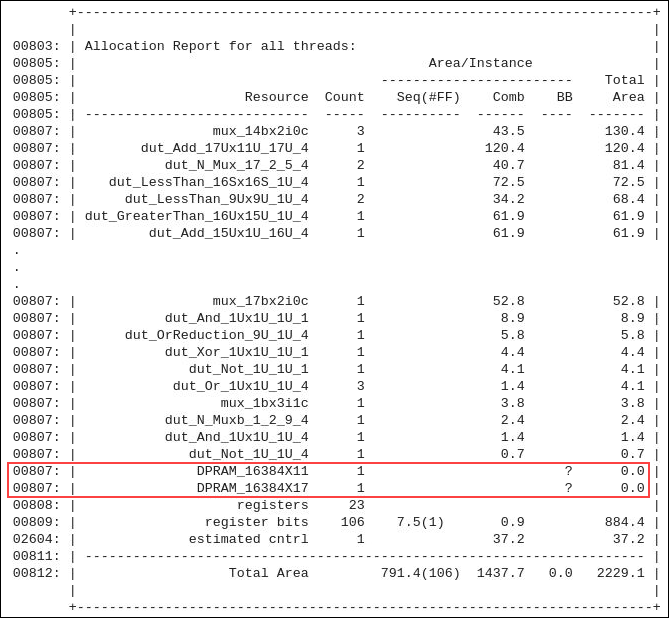

The Allocation Report highlights the variables mapped to RAM.

Additional Notes on RAM Mapping

MATLAB functions can have any number of RAM matrices.
All matrix variables in MATLAB that are declared persistent and meet the threshold criteria get mapped to RAMs.
