dataPlotOptions

Option set for idplot when plotting input/output estimation data contained in a timetable, numeric matrices, or an iddata object

Since R2023a

collapse all in page

Syntax

opt = dataPlotOptions('time')
opt = dataPlotOptions('frequency')
opt = dataPlotOptions(___,'identpref')

Description

opt = dataPlotOptions('time') creates the default option set for plotting time-domain data. Use dot notation to customize the option set, if needed.

example

opt = dataPlotOptions('frequency') creates a default option set for plotting frequency-domain data. Use dot notation to customize the option set, if needed.

example

opt = dataPlotOptions(___,'identpref') initializes the plot options with the System Identification Toolbox™ preferences. This syntax can include any of the input argument combinations in the previous syntaxes. Use this syntax to change a few plot options but otherwise use your toolbox settings.

example

Examples

collapse all

Open Live Script

Create an options set with default options for time-domain data.

opt = dataPlotOptions('time');

Specify plot properties, such as time units and grid. View the plot in minutes

 opt.TimeUnits = 'minutes';
 % Turn grid on
 opt.Grid = 'on';

Create a plot using the specified options.

load iddata1 z1
h = idplot(z1, opt);

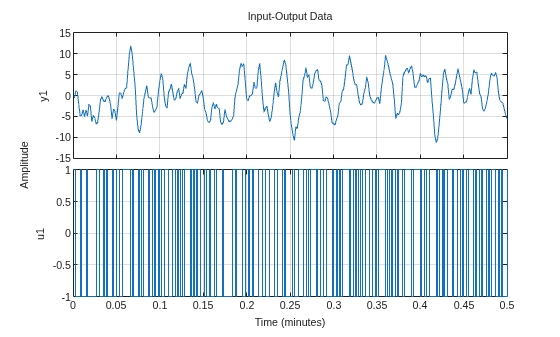

Figure contains 2 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents untitled1. Axes object 2 with title u1 contains an object of type line. This object represents untitled1.

Open Live Script

Generate data with two inputs and one output.

z = iddata(randn(100,1),rand(100,2));

Configure a time plot.

opt = iddataPlotOptions('time');

Plot the data.

h = idplot(z,opt);

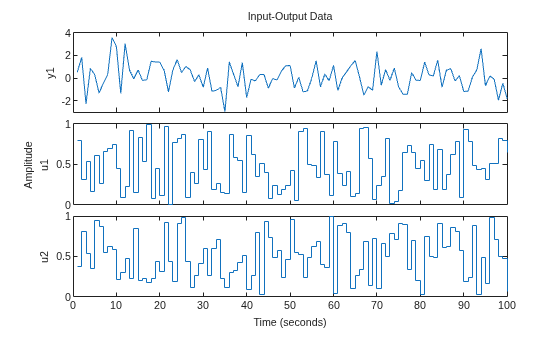

Figure contains 3 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents untitled1. Axes object 2 with title u1 contains an object of type line. This object represents untitled1. Axes object 3 with title u2 contains an object of type line. This object represents untitled1.

Change the orientation of the plots such that all inputs are plotted in one column, and all outputs are in a second column.

opt.Orientation = 'two-column';
h = idplot(z,opt);

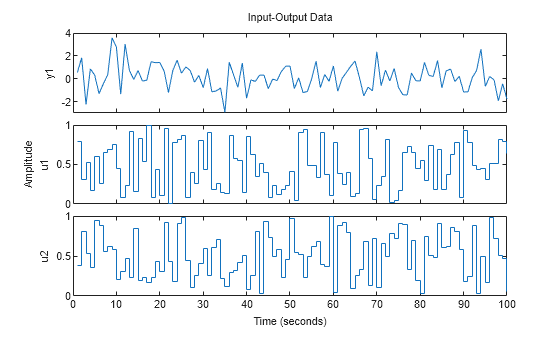

Figure contains 3 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents untitled1. Axes object 2 with title u1 contains an object of type line. This object represents untitled1. Axes object 3 with title u2 contains an object of type line. This object represents untitled1.

Alternatively, use setoptions.

setoptions(h,'Orientation','two-column')

You can also change the orientation by right-clicking the plot and choosing Orientation in the context menu.

Open Live Script

Create an option set with default options for frequency-domain data.

opt = dataPlotOptions('frequency');

Specify plot properties, such as phase visibility and frequency units.

opt.PhaseVisible = 'off';
opt.FreqUnits = 'Hz';

Create a plot with the specified options.

load iddata7 z7
zf = fft(z7);
h = idplot(zf,opt);

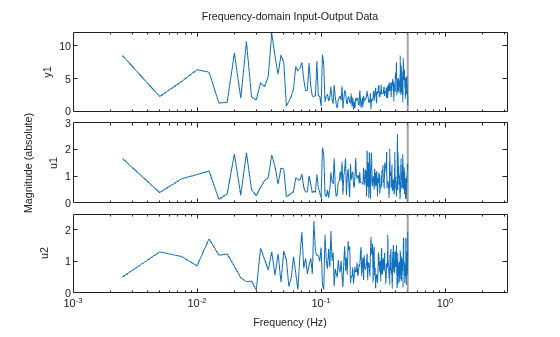

Figure contains 3 axes objects. Axes object 1 with title y1 contains an object of type line. This object represents untitled1. Axes object 2 with title u1 contains an object of type line. This object represents untitled1. Axes object 3 with title u2 contains an object of type line. This object represents untitled1.

Open Live Script
opt = dataPlotOptions('time','identpref');

Output Arguments

collapse all

Option set containing the specified options for idplot. The structure has the following fields:

Field Description
Title, XLabel, YLabel

Text and style for axes labels and plot title, specified as a structure array with the following fields:

  • String — Title and axes label text, specified as a character vector.

    Default Title: 'Input-Output Data'

    Default XLabel: 'Time'

    Default YLabel: 'Amplitude'

  • FontSize — Font size, specified as scalar value greater than 0.
    Default: 8

  • FontWeight — Thickness of text, specified as one of the following values: 'Normal' | 'Bold'
    Default: 'Normal'

  • Font Angle — Text character angle, specified as one of the following values: 'Normal' | 'Italic'
    Default: 'Normal'

  • Color — Color of text, specified as vector of RGB values between 0 to 1.
    Default: [0,0,0]

  • Interpreter — Interpretation of text characters, specified as one of the following values: 'tex' | 'latex'| 'none'
    Default: 'tex'

TickLabel

Tick label style, specified as a structure array with the following fields:

  • FontSize — Font size, specified as scalar value greater than 0.
    Default: 8

  • FontWeight — Thickness of text, specified as one of the following values: 'Normal' | 'Bold'
    Default: 'Normal'

  • Font Angle — Text character angle, specified as one of the following values: 'Normal' | 'Italic'
    Default: 'Normal'

  • Color — Color of text, specified as vector of RGB values between 0 to 1 | character vector of color name | 'none'. For example, for yellow color, specify as one of the following: [1 1 0], 'yellow', or 'y'.
    Default: [0,0,0]

Grid

Show or hide the grid, specified as one of the following values: 'off' | 'on'

Default: 'off'

GridColor

Color of the grid lines, specified as one of the following values: vector of RGB values in the range [0,1] | character vector of color name | 'none'. For example, for yellow color, specify as one of the following: [1 1 0], 'yellow', or 'y'.

Default: [0.15,0.15,0.15]

XlimMode, YlimMode

Axes limit modes, specified as one of the following values:

  • 'auto' — The axis limits are based on the data plotted

  • 'manual' — The values explicitly set with Xlim, Ylim

Default: 'auto'

Xlim, Ylim

Axes limits, specified as maximum and minimum values.

Default: [0 1]

IOGrouping

Grouping of input-output pairs, specified as one of the following values: 'none' | 'inputs' | 'outputs'|'all'

Default: 'none'

InputLabels, OutputLabels

Input and output label styles on individual plot axes, specified as a structure array with the following fields:

  • FontSize — Font size, specified as data type scalar.
    Default: 8

  • FontWeight — Thickness of text, specified as one of the following values: 'Normal' | 'Bold'
    Default: 'Normal'

  • Font Angle — Text character angle, specified as one of the following values: 'Normal' | 'Italic'
    Default: 'Normal'

  • Color — Color of text, specified as a vector of RGB values between 0 to 1 | character vector of color name | 'none'. For example, for yellow color, specify as one of the following: [1 1 0], 'yellow', or 'y'.
    Default: [0.4,0.4,0.4]

  • Interpreter — Interpretation of text characters, specified as one of the following values: 'tex' | 'latex'| 'none'
    Default: 'tex'

InputVisible, OutputVisible

Visibility of input and output channels, specified as one of the following values: 'off' | 'on'

Default: 'on'

Orientation

Orientation of the input and output data plots, specified as one of the following values:

  • 'two-row' — Plot all outputs in one row and all inputs in a second row

  • 'two-column' — Plot all outputs in one column and all inputs in a second column

  • 'single-row' — Plot all inputs and outputs in one row

  • 'single-column'— Plot all inputs and outputs in one column

Default: 'two-row'.

For time-domain data plots only:

FieldDescription
TimeUnits

Time units, specified as one of the following values:

  • 'nanoseconds'

  • 'microseconds'

  • 'milliseconds'

  • 'seconds'

  • 'minutes'

  • 'hours'

  • 'days'

  • 'weeks'

  • 'months'

  • 'years'

You can also specify 'auto' which uses time units specified in the TimeUnit property of the data. For multiple systems with different time units, the units of the first system is used.

Normalize

Normalize responses, specified as one of the following values: 'on' |'off'

Default: 'off'

InputInterSample

Input-channel intersample behavior for plotting the input signals, specified as 'auto', 'zoh', or 'foh'.

The definitions of the three behavior values are as follows:

  • 'auto'—

    • If the data is represented by an iddata object, the software uses the value of the object property InterSample. It uses a stairstep plot if the value is 'zoh' and a line plot if the value is 'foh'.

    • If the data is specified as a numeric pair or a timetable, the software interprets 'auto' as 'zoh'.

  • 'zoh'— Zero-order hold maintains a piecewise-constant input signal between samples. The software plots the input signal as a stairstep plot.

  • 'foh'— First-order hold maintains a piecewise-linear input signal between samples. The software plots the input signal as a line plot.

The software applies the same option value to all input channels and all experiments.

Default: 'auto'

For frequency-domain data plots only:

FieldDescription
FreqUnits

Frequency units, specified as one of the following values:

  • 'Hz'

  • 'rad/s'

  • 'rpm'

  • 'kHz'

  • 'MHz'

  • 'GHz'

  • 'rad/nanosecond'

  • 'rad/microsecond'

  • 'rad/millisecond'

  • 'rad/minute'

  • 'rad/hour'

  • 'rad/day'

  • 'rad/week'

  • 'rad/month'

  • 'rad/year'

  • 'cycles/nanosecond'

  • 'cycles/microsecond'

  • 'cycles/millisecond'

  • 'cycles/hour'

  • 'cycles/day'

  • 'cycles/week'

  • 'cycles/month'

  • 'cycles/year'

Default: 'rad/s'

You can also specify 'auto' which uses frequency units rad/TimeUnit relative to system time units specified in the TimeUnit property. For multiple systems with different time units, the units of the first system are used.

FreqScale

Frequency scale, specified as one of the following values: 'linear' | 'log'

Default: 'log'

MagUnits

Magnitude units, specified as one of the following values: 'dB' | 'abs'

Default: 'dB'

MagScale

Magnitude scale, specified as one of the following values: 'linear' | 'log'

Default: 'linear'

MagVisible

Magnitude plot visibility, specified as one of the following values: 'on' | 'off'

Default: 'on'

MagLowerLimMode

Enables a lower magnitude limit, specified as one of the following values: 'auto' | 'manual'

Default: 'auto'

MagLowerLimLower magnitude limit, , specified as data type double. It is typically decided by the range of the amplitudes the plotted data takes.
PhaseUnits

Phase units, specified as one of the following values: 'deg' | 'rad'

Default: 'deg'

PhaseVisible

Phase plot visibility, specified as one of the following values: 'on' | 'off'

Default: 'on'

PhaseWrapping

Enable phase wrapping, specified as one of the following values: 'on' | 'off'

Default: 'off'

PhaseWrappingBranch

Phase value at which the plot wraps accumulated phase when PhaseWrapping is set to 'on'.

Default: –180 (phase wraps into the interval [–180º,180º))

PhaseMatching

Enable phase matching, specified as one of the following values: 'on' | 'off'

Default: 'off'

PhaseMatchingFreqFrequency for matching phase, specified as data type double.
PhaseMatchingValueThe value to which phase responses are matched closely, specified as a real number representing the desired phase value PhaseMatchingFreq.

Version History

Introduced in R2023a
