getimagemodel

Image model object from image object

collapse all in page

Syntax

imgmodel = getimagemodel(himage)

Description

imgmodel = getimagemodel(himage) returns the image model object associated with image himage. If himage does not have an associated image model object, then getimagemodel creates one.

example

Examples

collapse all

Open Live Script

Read an image into the workspace.

h = imshow('bag.png');

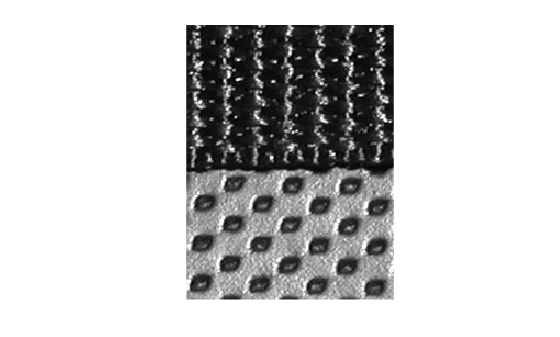

Figure contains an axes object. The hidden axes object contains an object of type image.

Retrieve the image model associated with this image.

imgmodel = getimagemodel(h)

imgmodel =

IMAGEMODEL object accessing an image with these properties:

       ClassType: 'uint8'
    DisplayRange: [0 255]
     ImageHeight: 250
       ImageType: 'intensity'
      ImageWidth: 189
    MinIntensity: 0
    MaxIntensity: 255

Input Arguments

collapse all

Target image, specified as a handle or array of handles to image objects.

Output Arguments

collapse all

Image model, returned as an imagemodel object. If himage is an array of handles to image objects, then imgmodel is an array of image models.

Version History

Introduced before R2006a
