imapplymatrix

Linear combination of color channels

collapse all in page

Syntax

Y = imapplymatrix(M,X)
Y = imapplymatrix(M,X,C)
Y = imapplymatrix(___,output_type)

Description

Y = imapplymatrix(M,X) computes the linear combination of the rows of M with the color channels of X.

Y = imapplymatrix(M,X,C) computes the linear combination of the rows of M with the color channels of X, adding the corresponding constant value C to each combination.

Y = imapplymatrix(___,output_type) returns the result of the linear combination in an array of type output_type.

example

Examples

collapse all

Open Live Script

This example shows how to create a grayscale image by computing the linear combination of three colors channels.

Read a truecolor image into the workspace.

RGB = imread('peppers.png');

Create a coefficient matrix

M = [0.30, 0.59, 0.11];

Compute the linear combination of the RGB channels using the coefficient matrix.

gray = imapplymatrix(M, RGB);

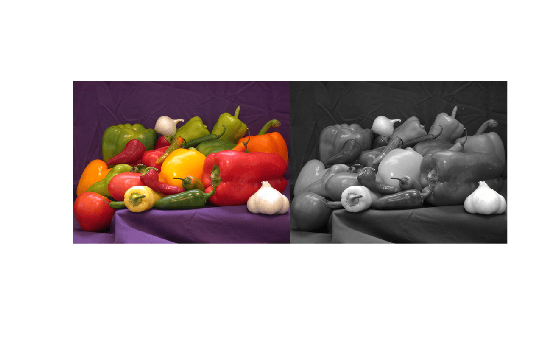

Display the original image and the grayscale conversion.

imshowpair(RGB,gray,'montage')

Figure contains an axes object. The axes object contains an object of type image.

Input Arguments

collapse all

Weighting coefficients for each color channel, specified as a q-by-p numeric array. p is the length of the third dimension of X. In other words, p=size(X,3). q is in the range [1,p].

Input image, specified as an m-by-n-by-p numeric array.

Constant to add to each channel during the linear combination, specified as q-element numeric vector, where q is the number of rows in M.

Data Types: double

Output data type, specified as "double", "single", "uint8", "uint16", "uint32", "int8", "int16", or "int32".

Data Types: char | string

Output Arguments

collapse all

Output image comprised of the linear combination of the rows of M with the color channels of X, returned as a numeric array. If output_type is not specified, the data type of Y is the same as the data type of X.

Extended Capabilities

Version History

Introduced in R2011b
