Specify Desired 2-D Frequency Response Matrix

Open Live Script

The 2-D filter design functions fsamp2, fwind1, and fwind2 all create filters based on a desired frequency response magnitude matrix. Frequency response is a mathematical function describing the gain of a filter in response to different input frequencies.

You can create an appropriate desired frequency response matrix using the freqspace function. freqspace returns correct, evenly spaced frequency values for any size response. If you create a desired frequency response matrix using frequency points other than those returned by freqspace, you might get unexpected results, such as nonlinear phase.

For example, create a circular ideal low-pass frequency response with cutoff at 0.5.

[f1,f2] = freqspace(25,"meshgrid");
Hd = zeros(25,25);
d = sqrt(f1.^2 + f2.^2) < 0.5;
Hd(d) = 1;
mesh(f1,f2,Hd)

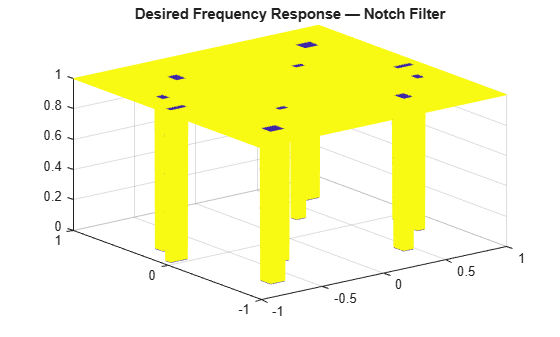

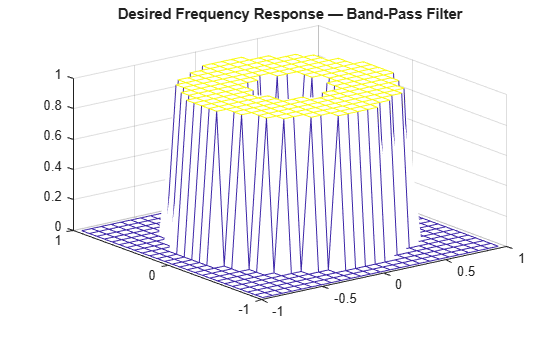

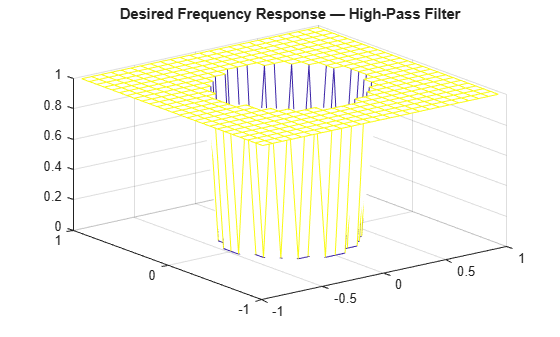

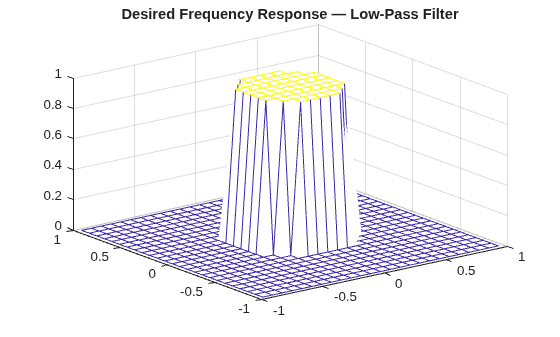

Figure contains an axes object. The axes object contains an object of type surface.

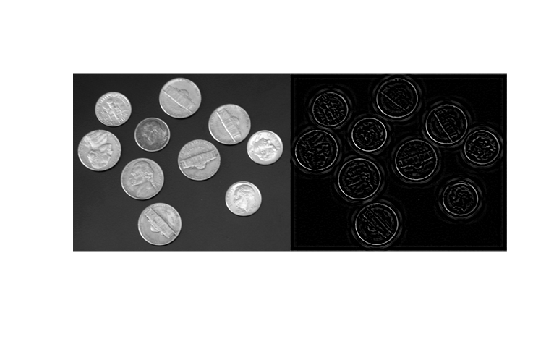

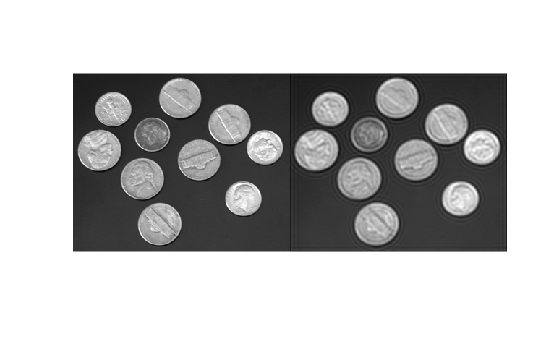

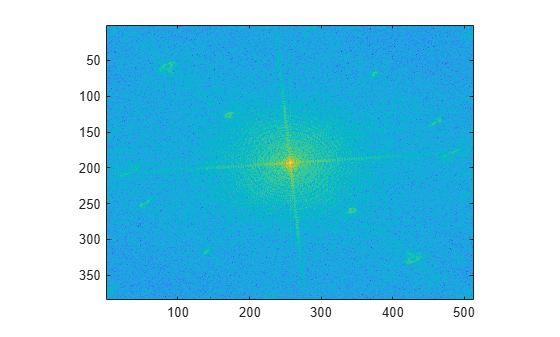

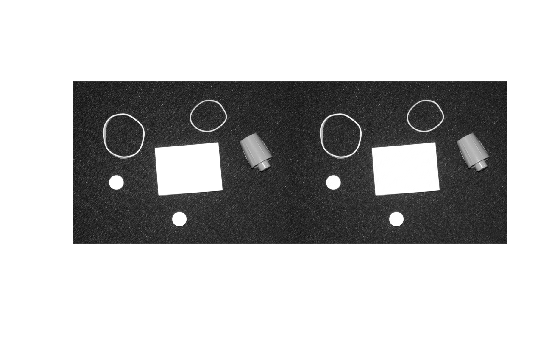

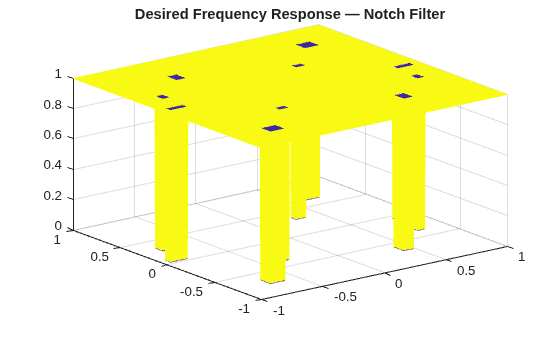

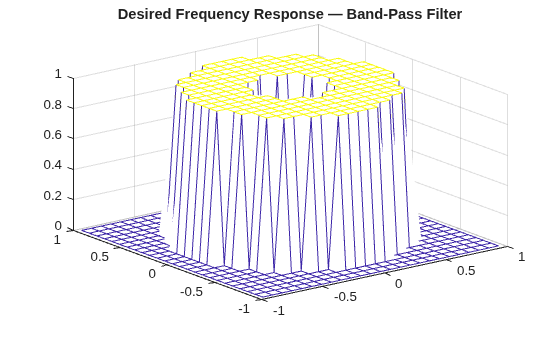

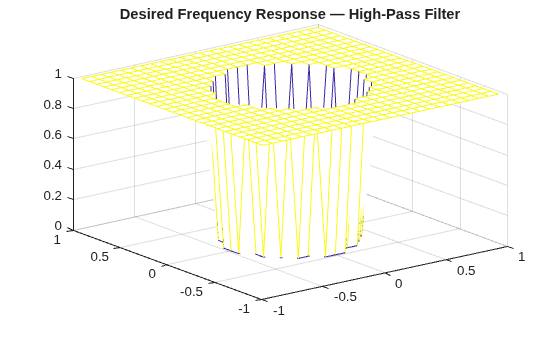

Note that for this frequency response, the filters produced by fsamp2, fwind1, and fwind2 are real. Filters with real coefficients are desirable for most image processing applications. To achieve this in general, the desired frequency response should be symmetric about the frequency origin (f1 = 0, f2 = 0).
