showm

Show objects on axesm-based map

collapse all in page

    Syntax

    showm
    showm(obj)
    showm(objType)

    Description

    showm opens a dialog box that enables you to interactively select objects to show. The showm function hides objects by setting their Visible property to "on".

    showm(obj) shows the specified objects.

    example

    showm(objType) shows objects of the specified type.

    Examples

    collapse all

    Open Live Script

    Load a MAT file containing the coordinates of global coastlines into the workspace. Create a world map, and then plot the coastline data.

    load coastlines
figure
worldmap world
p = plotm(coastlat,coastlon);

    Figure contains an axes object. The hidden axes object contains 18 objects of type patch, line, text.

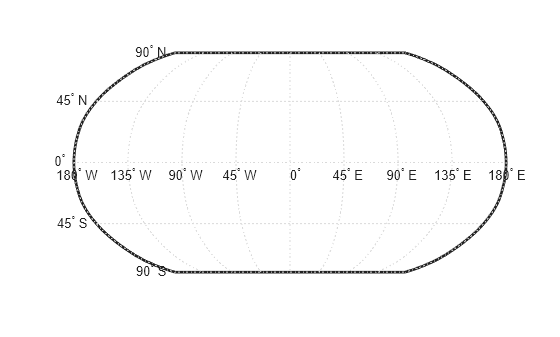

    Hide the plotted data.

    hidem(p)

    Figure contains an axes object. The hidden axes object contains 17 objects of type patch, line, text.

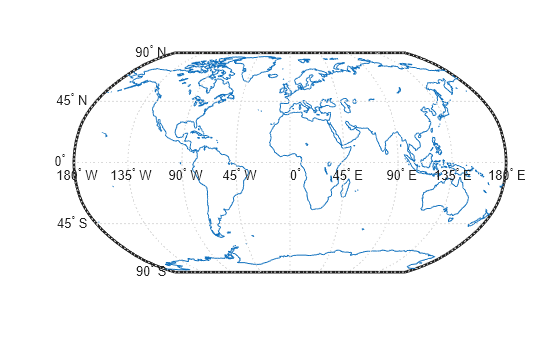

    Show the plotted data again.

    showm(p)

    Figure contains an axes object. The hidden axes object contains 18 objects of type patch, line, text.

    Input Arguments

    collapse all

    Objects to show, specified as an array of graphics objects.

    Type of graphics object to show, specified as one of these options.

    OptionDescription

    "all"

    All children

    "clabel"

    Contour labels

    "contour"

    hggroup containing contours

    "fillcontour"

    hggroup containing filled contours

    "frame"

    Map frame

    "grid"

    Map grid lines

    "hggroup"

    All hggroup objects

    "hidden"

    Hidden objects

    "image"

    Untagged image objects

    "light"

    Untagged light objects

    "line"

    Untagged line objects

    "map"

    All objects on the map, excluding the frame and grid

    "meridian"

    Longitude grid lines

    "mlabel"

    Longitude labels

    "parallel"

    Latitude grid lines

    "plabel"

    Latitude labels

    "patch"

    Untagged patch objects

    "scaleruler"

    Scale rulers

    "surface"

    Untagged surface objects

    "text"

    Untagged text objects

    "tissot"

    Tissot indicatrices

    "visible"

    Visible objects

    Data Types: char | string

    Version History

    Introduced before R2006a
